Noble 3032

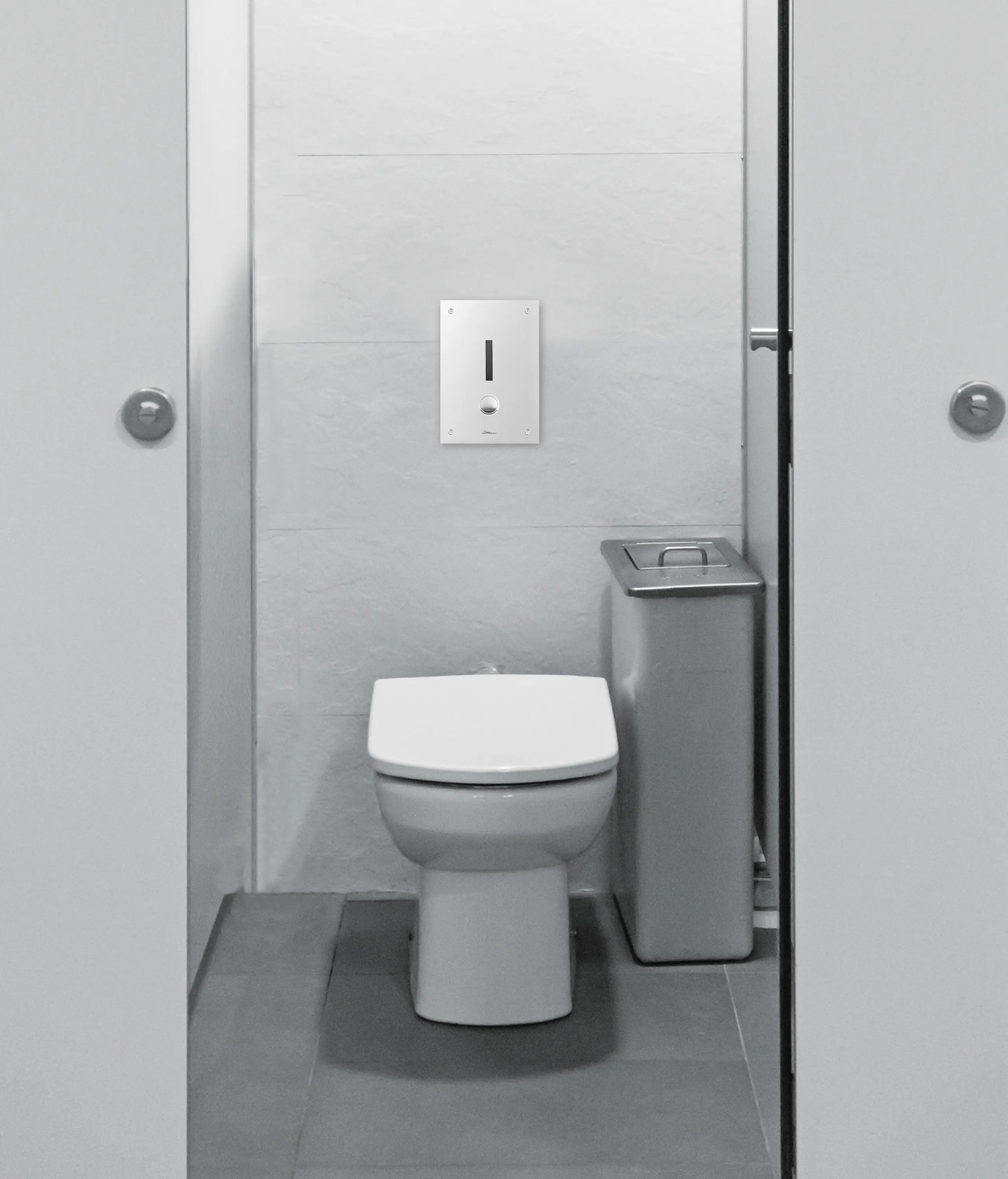

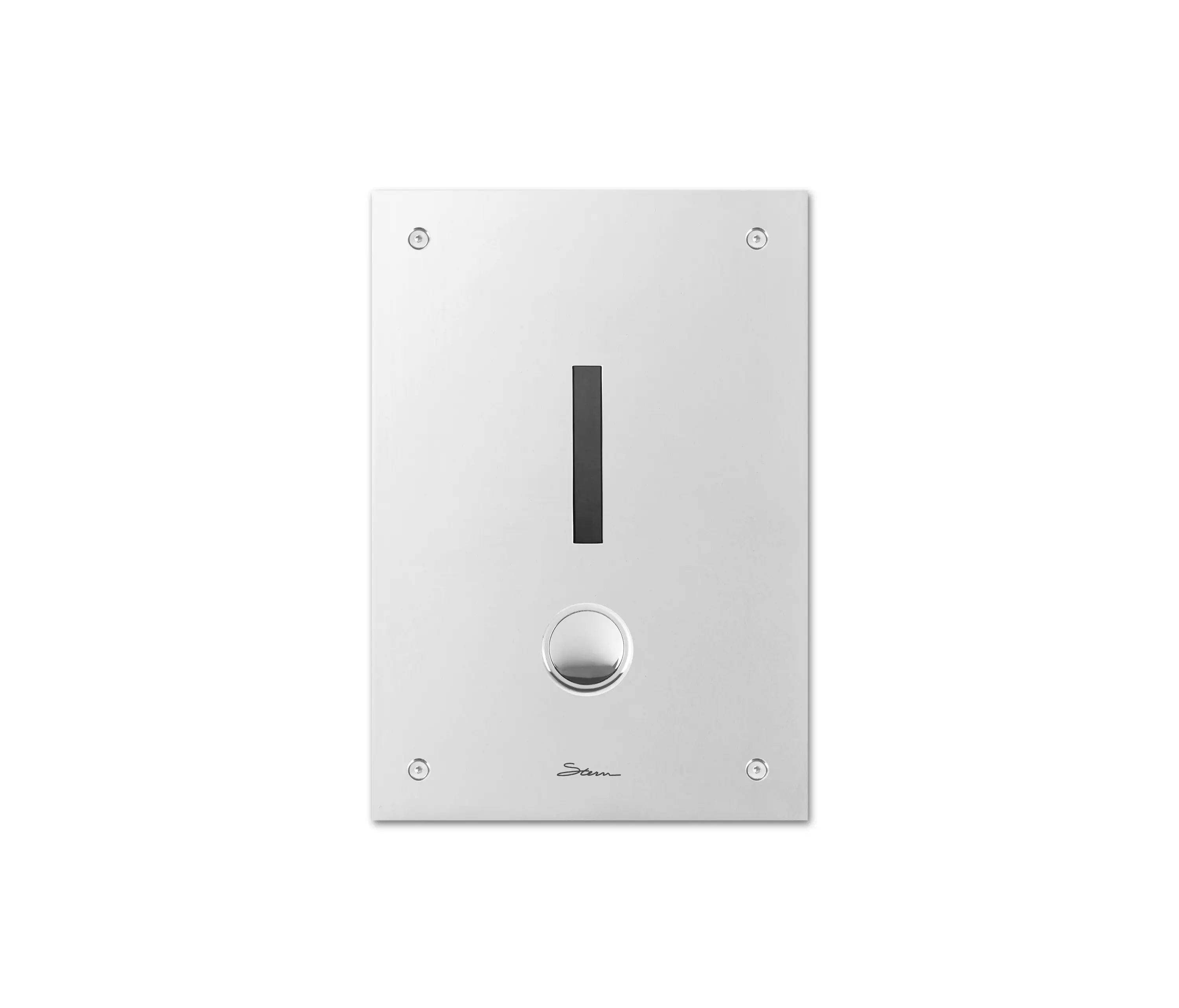

Touch free electronic flush valve for water closet. Solid brass valve body with heavy-duty 10” x 7” stainless steel AISI316 panel complete with tamper proof screws for increased vandal protection.. Automatic infrared sensor activated with self-adjusting detection range. Features a manual or piezo override push button with anti-block feature. Concealed installation with 1” angle stop and 1.5” vacuum breaker set and 6 second delay-in time to replace unwanted flushing. Powered by a 9V battery or 9V transformer. Auto adjustable sensor range which adapts to the site conditions. Flushing duration and other settings are adjustable by remote control. Includes an adjustable tail piece connection. Self-cleaning piston mechanism complete with

debris screen and solenoid valve. ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012.

Technical Data:

• Concealed flush valve with 1” angle stop and 1.5” vacuum breaker set

• Recommended Pressure, 0.1-8.0 bar / 14.50-116 PSI

• Power Supply, 9V Battery or 9V transformer

• Panel, Heavy-duty 10” x 7” stainless steel AISI316 panel complete with tamper proof screws for increased vandal protection.

• Connection, Spud coupling and flange for top or rear spud connection

• Automatic Hygiene Flush, Optional feature after 24 hours of inactivity

• Piston valve, Self-cleaning with 360° filter screen

• Override Feature, Manual button or Piezo touch with anti-block feature

Ref number: 460720 (Battery), 460730 (Transformer)
