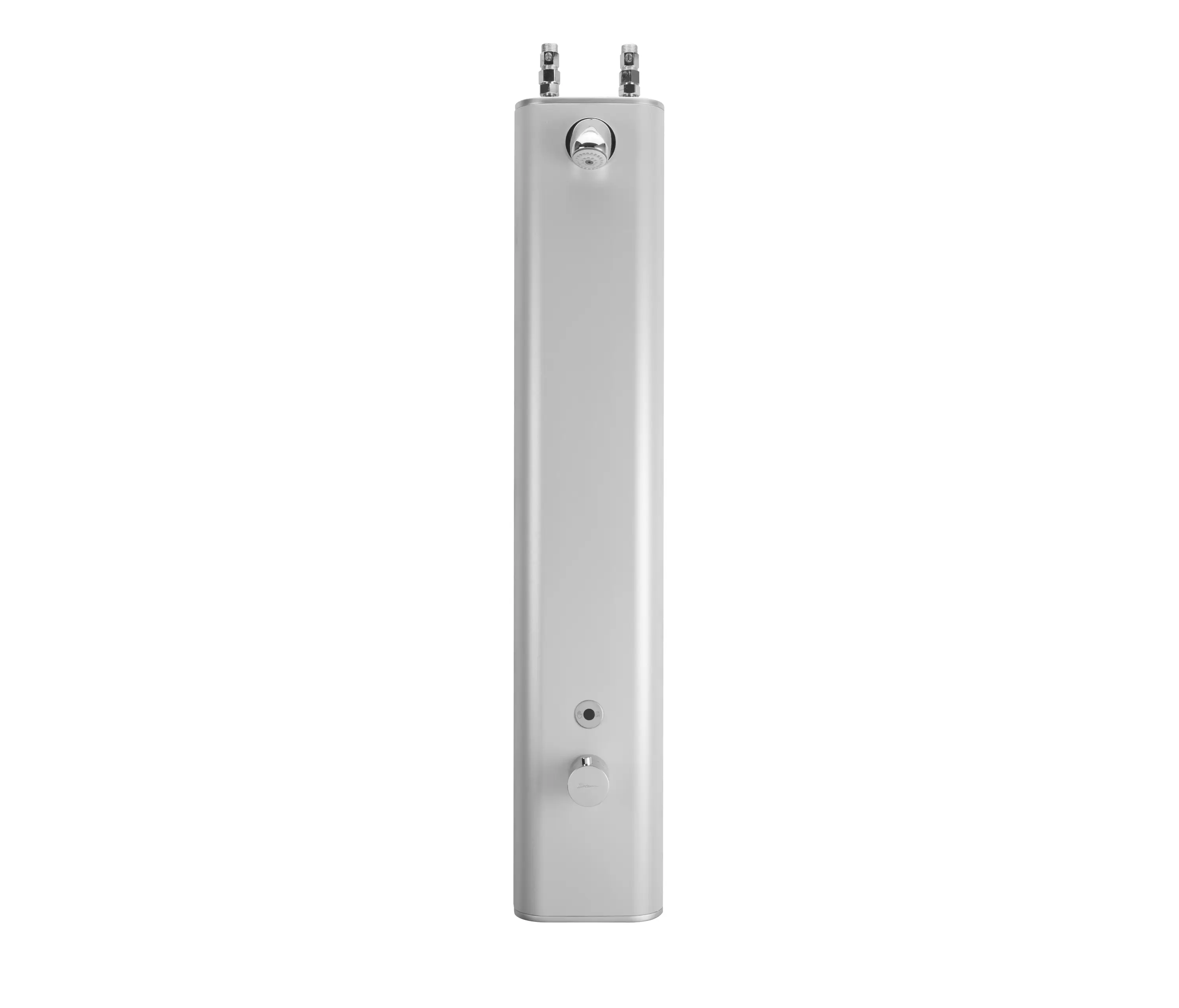

Neptune Shower Panel 1000 TB
Über dieses Produkt
Architonic ID: 1385817
SKU: 602410
Touch-free electronic shower panel. Activated by a proximity or wave infrared sensor. For hot and cold water. With thermostatic mixing valve for water temperature control and scalding prevention. Powered by a 9V battery. Easily activated by the disabled, the elderly and children. Prevents cross contamination with no physical contact. Ideal for retrofits and renovations. Maximizes LEED rating. Sensor settings are adjustable by remote control.
Technical data:
Power: 9V battery
Operating pressure: 0.5-0.8 bar / 7.0-116.0 psi
Mixing valve for temperature control
Water supply: hot and cold water
Max water temperature: 70˚C
Water flow: 9 lpm / 2.38 gpm (water saving option: 7 lpm / 1.85 gpm; 6 lpm / 1.59 gpm; 5 lpm / 1.06 gpm)
Options:
Infrared sensor operation: Prox or Wave
Rear inlet installation
24 hour mandatory hygiene flush
Konzept
Stern’s touch-activated and touch-free shower panels combine high quality and an elegant design with vandal resistant features. Easily activated by young children, the elderly and the disable, the showers helps washrooms stay hygienic and safe while saving large quantities of water and maximizes LEED rating. Ideal for retrofit indoor and outdoor installations, sport facilities, hospitals, hotels, resorts and residential use.
