Classic CS E

CLASSIC CS E

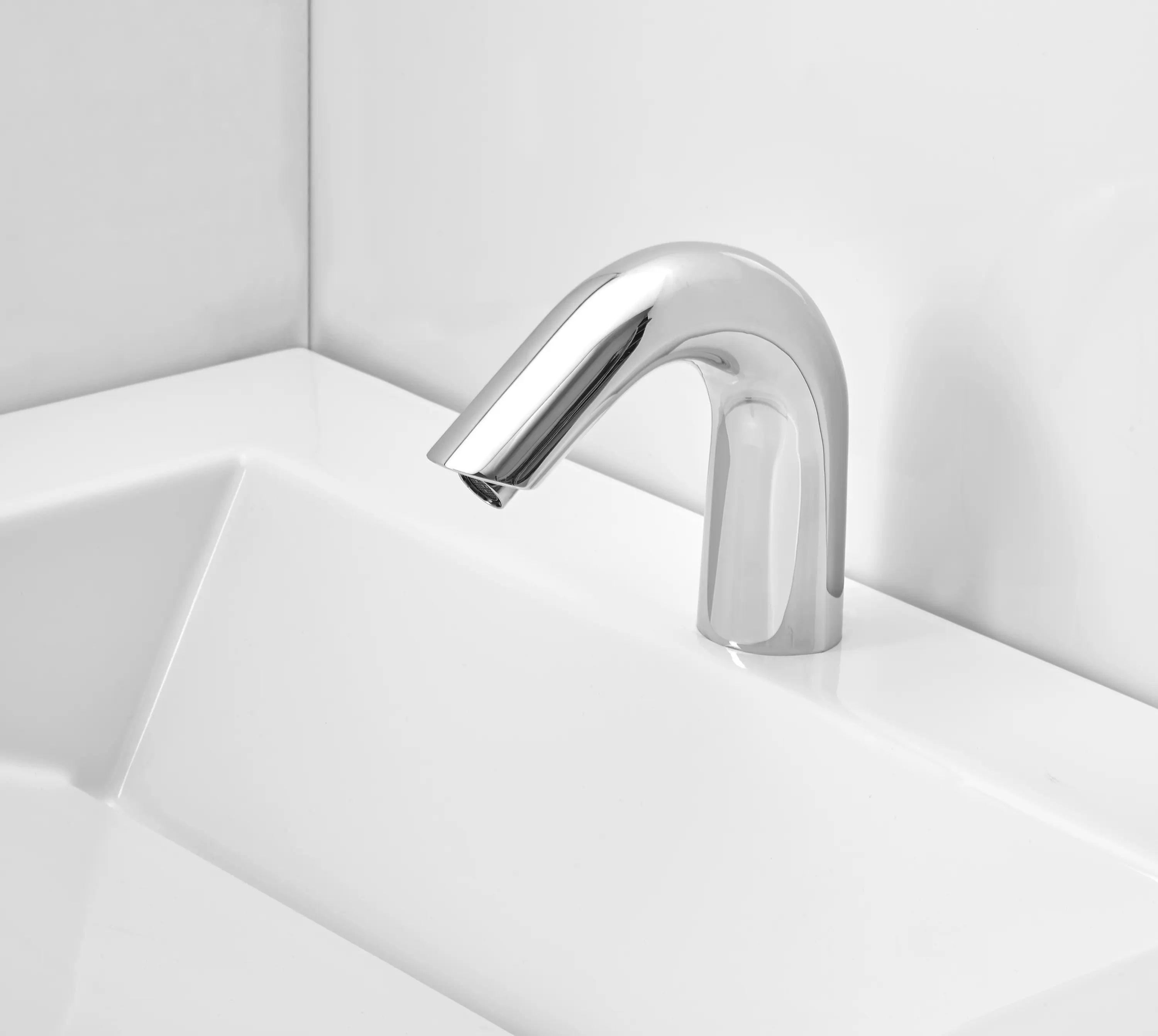

Touch-free electronic faucet for deck-mounted installations. Activated by concealed sensor built into the spout. Solid brass one-piece construction. For cold or premixed water. Filter included. Latching solenoid valve is located externally below the deck. Sensor includes a low battery indicator. Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Technical Data:

- Power: 9V transformer

- Operating pressure: 0.5-0.8 bar / 7.0-116.0 psi

- Water Supply: Cold or premixed water

- Max water temperature: 70˚C

- Water flow: 6 lpm / 1.58 gpm (water saving options: 0.5 gpm; 1.3 lpm / 0.35 gpm- PCA Spray)

Options:

- Remote control

- Matching battery-powered soap dispenser

- Matching transformer-powered soap dispenser

Ref number: 293200

CLASSIC CS B

Touch-free electronic faucet for deck-mounted installations. Activated by concealed sensor built into the spout. Solid brass one-piece construction. For cold or premixed water. Filter included. Latching solenoid valve is located externally below the deck. Sensor includes a low battery indicator. Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Technical Data:

- Power: 9V battery

- Operating pressure: 0.5-0.8 bar / 7.0-116.0 psi

- Water Supply: Cold or premixed water

- Max water temperature: 70˚C

- Water flow: 6 lpm / 1.58 gpm (water saving options: 0.5 gpm; 1.3 lpm / 0.35 gpm- PCA Spray)

Options:

- Remote control

- Matching battery-powered soap dispenser

- Matching transformer-powered soap dispenser

Ref number: 293100
