Walk Wall

Walk Wall, the adapted modern

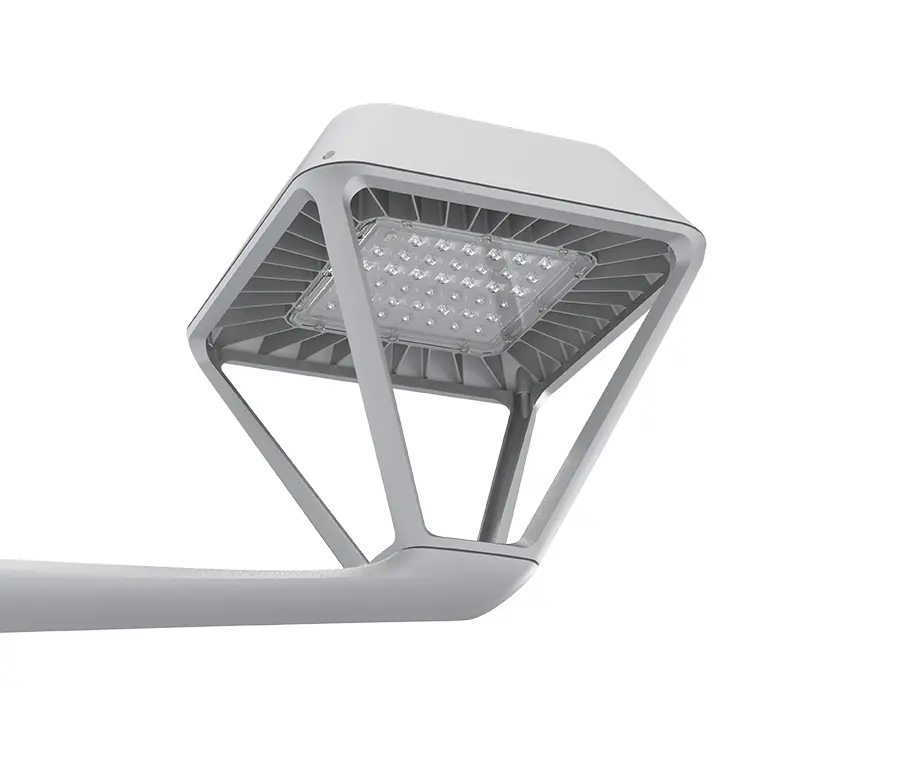

The WALK luminaire is an update of the classic four-sided luminaire, elegant and adapted to the urban environment.

A luminaire that won't leave you indifferent

Ideal for illuminating streets, avenues, pedestrian areas, residential areas, parks and gardens

Electronic efficiency > 90%.

IP66 | IK08 (optical group IK10)

WALL mounting by means of a special wall bracket.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Compuesta de cuerpo, tapa superior y estructura de fijación en aleación de aluminio tipo EN AC 44300 de bajo contenido en cobre (<0.1%). Acceso a los equipos a través de la tapa superior, fijada al cuerpo con tornillos imperdibles M6 y junta de estanqueidad de silicona.

For installation from 4 to 6m high.

Characteristic dimensions: 430 x 430 x 550 mm.

Maximum power 190W

Maximum flux 27800lm.

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 16Kg.

IP66

IK08 (optical group IK10)

FHS < 0,1%.

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

S30T

F1M6

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1

S50M

P225

P245
