Ice S Lat

Ice S Lat, the new urban light concept

It illuminates urban spaces with the best energy efficiency and a design that adapts to different environments.

One luminaire, different configuration options.

The ICE S LAT luminaire is ideal for lighting streets, avenues, residential areas, parks and gardens, pedestrian areas.n

Electronic efficiency > 90%.

IP66 | IK09

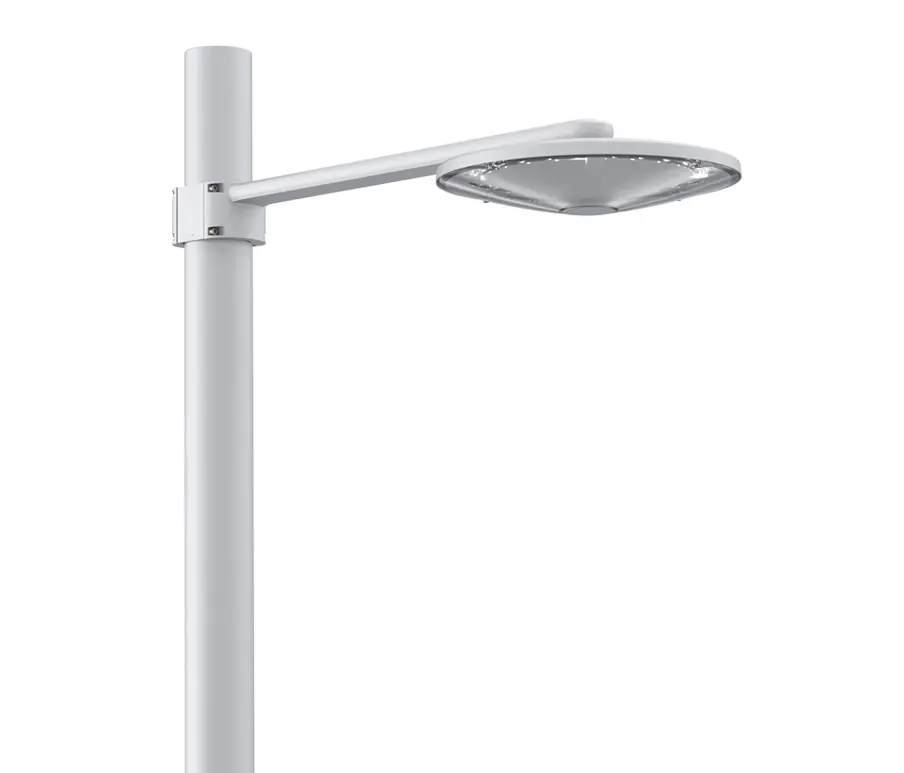

Lateral fixing to the pole by means of a clamp and side arm in cast aluminium.

Luminaire adapted to the change

The Ice S Lat luminaire is designed to offer the best performance in your street lighting project. Discover its features in this video. Because together, we will make a difference.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Compuesta de cuerpo de PMMA de alta resistencia al impacto. Tapa y soporte en fundición de aluminio inyectado EN AC-44300 de bajo contenido en cobre (<0.1%). Apertura de la tapa superior fijada mediante 4 tornillos imperdibles. Junta de estanqueidad de silicona.

For installation from 4 to 6m high.

Characteristic dimensions: Ø460 x 140 x 1000 mm.

Maximum power

Maximum flow

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 5Kg.

IP66

IK09

FHS < 5%.

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

F1T2

F2T1

F3T3

F3T4

F4T1

F5T1
