Anima Lat
Architonic ID: 20337168

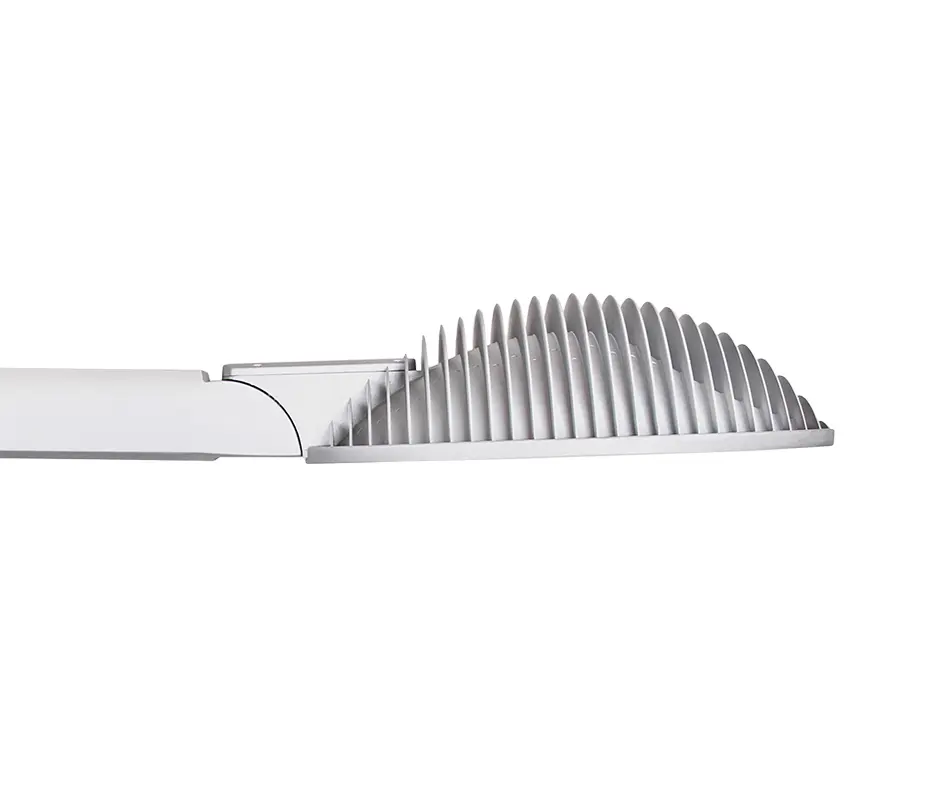

Anima Lat, the great efficiency

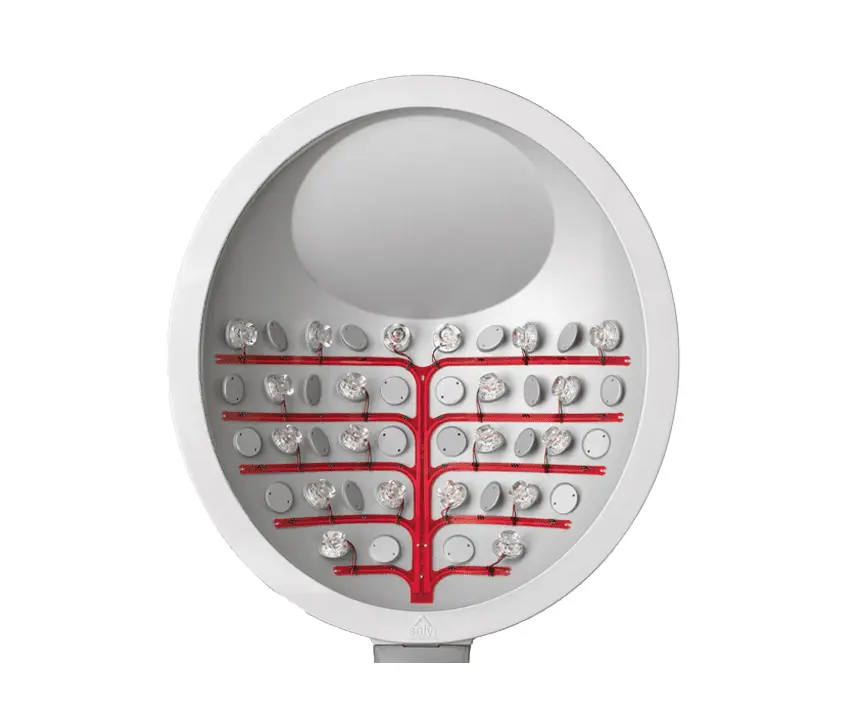

LED luminaire unique in its category. Thanks to its exclusive 3D LED patent, it permits obtaining different photometries, minimum glare and uniformity. The high efficiency of its LED (up to 130 lm/W) and its heat dissipation system make it one of the most efficient luminaires for use in public lighting.
A luminaire that won't leave you indifferent
Ideal for illuminating streets, avenues, residential areas, car parks, large areas, sports and industrial spaces
Electronic efficiency > 90%.
IP66 | IK09
Lateral fixation.
Their specifications are the key
Monobloc lenses: Ensure better photometric accuracy
Aluminium: anti-corrosive with a copper content of less than 0.1%.
Painting: The paint complies with EN 12944 C4 High Durability
Reflector: Improves efficiency, uniformity and light intrusion
Locking system: for tool-free maintenance
Threads: stainless steel
Product life: based on the environmental conditions of the project
Valve: pressure compensator. Eliminates interior humidity
Space: independent for electronics
Silicone gasket: Sealing gaskets made of resistant silicone
Guarantee: The product is adapted to the needs of the project
Glass: ultra-transparent. Improves efficiency by up to 10%.
Developments: The luminaire adapts to technological change
Disconnector: of current. Protects the installer
Smartec: Luminaire pre-equipped for Smartec remote control
Circular distribution: Optimises heat dissipation
Telescopic rod: Risk-free maintenance
Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.
Some technical details
Luminaire comprising upper dissipating body and mounting made of cast aluminium EN AC 44300 with low copper content. Access to the connection terminals housing through a cover fixed by M6 captive screws and silicone sealing gasket.
For installation from 6 to 12m high.
Characteristic dimensions: 270 x 455 x 1200 mm.
Maximum power 180W
Maximum flux 23200lm.
AC voltage 220V-240V ~ 50/60Hz.
Approx. weight: 11,5Kg.
IP66
IK09
FHS < 0,1%.
CRI minimum 70.
Class III.
Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).
