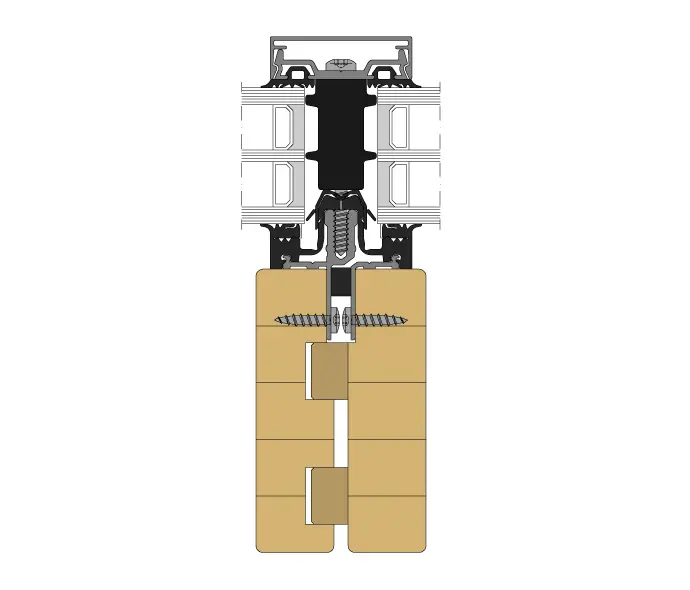

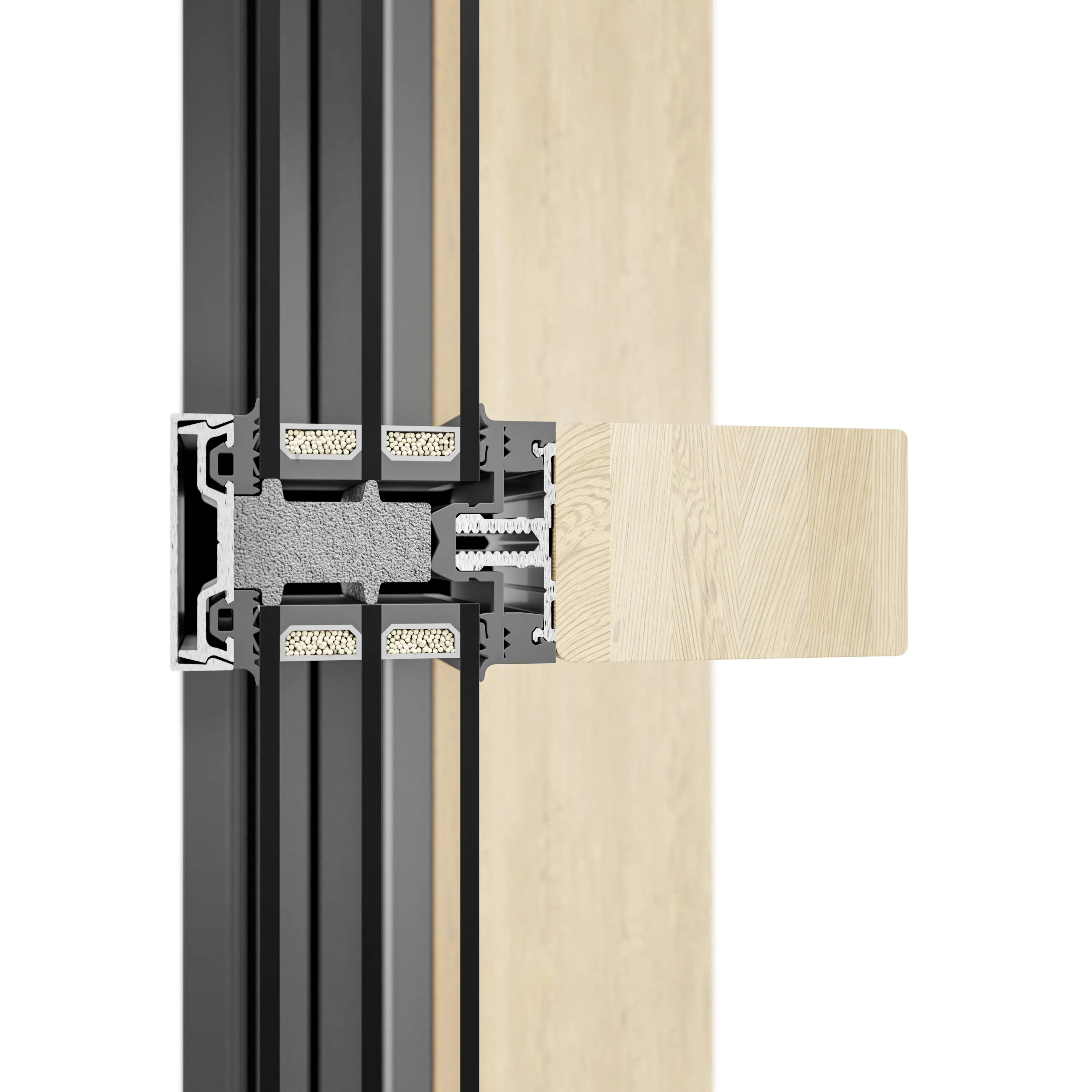

THERM+ H-I
Über dieses Produkt
Architonic ID: 20749016
Use | Application:
- vertical facade
- glass roofs
Characteristic:
- Timber facades & glass roofs
- Integrated drainage system in the continuous hat sealing in three levels
- T-Connector TC
Dimension:
- System width 50, 56, 76 or 96 mm
- glass weight up to 600 kg
- glass thickness from 4 to 64 mm
- profile depth up to 500 mm
Konzept
- Stepless thermal insulation by means of RAICO insulating block technology
-Two types of screw fixed aluminium base profiles; with or without profile locator
- Quick and easy fitting of the base profiles; also suitable for assembly with magazine fed electric screwdrivers
- No external components penetrate through to the timber frame
- Application in the roof possible
Dieses Produkt gehört zur Kollektion:
Produktdetails
Category
Vorhangfassaden
Usage
Hochbau
Varianten
2
Zu den Produktseiten dieser Varianten gelangen Sie – einfach anklicken!
