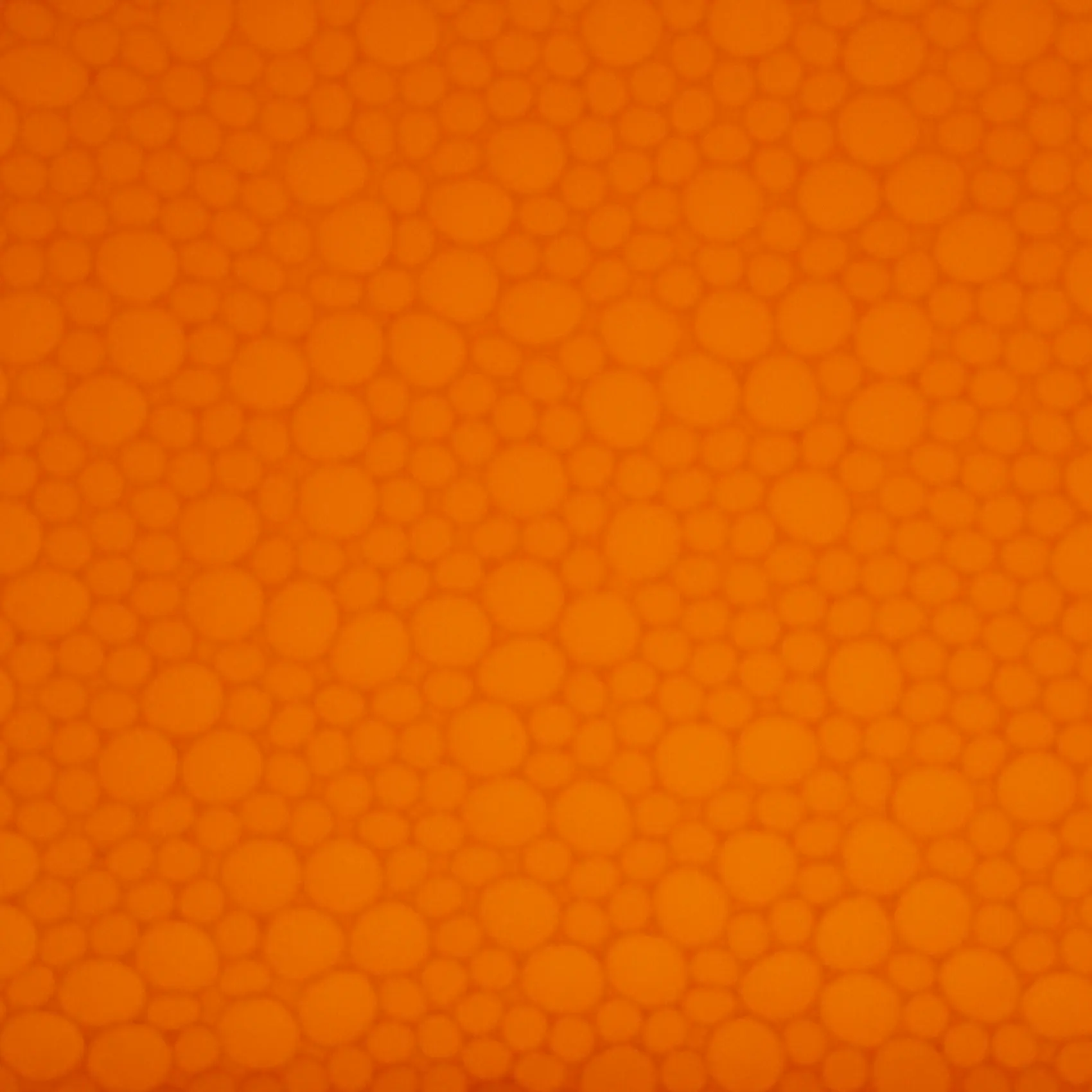

Bonded Series Paneel TCR/POL-S

Panelite™ Bonded Series Panels use a UV-stabilized liquid adhesive technology to bond PETG, Polycarbonate, or Acrylic facings to the cell wall of a tubular polycarbonate core to create a directionally transparent, lightweight panel. Offered in a variety of colors, finishes and core options including the innovative random core, the Bonded Series allows for creativity, choice and customization of design.

Applications for the Bonded Series include partitions, sliding panels, suspended ceiling panels, backlit and feature walls.

Core options

TC: Tubular clear, ¼” diameter cell

TCR: Tubular clear, random mix of 1/8” and 1/.4” diam cell

Transparent Facing options

PC: Clear

PO: Orange

PR: Red

PA: Aquamarine

PBR: Bronze

PLG: Light Gray

Satin Facing options

POL-S: Olive

PB-S: Periwinkle Blue

PC-S: Clear

Panel Dimensions

39” x 118”

Clear panels ¾” thick

Satin or colored panels: 7/8” thick

Environmental Fact

Through the use of translucent, transparent, and directionally transparent materials, architects and designers can allow daylight to reach into the depth of interior spaces, thereby reducing energy consumption for lighting while increasing the overall well-being of the occupants.

Panelite panels, including the new Bonded Series, contribute to the following LEED credits:

Indoor Environmental Quality Credit: Daylight and Views

EQ 8.1 + 8.2 Daylight and views, 1 pt.
