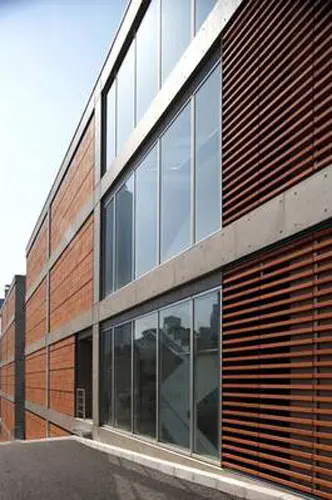

Terra TUBE ventilated wall

The profiles of extrusion of the tiles have been projected to allow an easy fixing, with simple and sure systems, that leave the external surface entire. Hooks enter into special grooves or in the holes of lightening, allowing a tall ability of load and an easy dismantlement of the pieces case of substitution.

The sketch of the profile allows the use of different types of mechanical support according to demands of the designer and of the relative sequences of assemblage applications.

DIMENSIONS

LENGTH: 394/494/594 mm

HEIGHT: 194/244/294 mm

THICKNESS: 28 mm

WEIGHT

194mm: 43 [Kg/mq]

244mm: 41 [Kg/mq]

294mm: 40 [Kg/mq]

Material: Cotto pregiato Imprunetino IL PALAGIO®

Manufacturer: VIVATERRA

Method of moulding: EXTRUSION

Freeze/thaw resistance: UNI EN ISO 10545-12 Guaranteed

Linear thermal expansion: UNI EN ISO 10545-8 <6x10-6 c°- 1

Resistance to thermal shocks: UNI EN ISO 10545- 9 Guaranteed

Bending tension strength: UNI EN ISO 10545-4 19 N/mm2

Treatment: "Water Resistant": exclusive special treatment applied by immersion of the slabs. It reduces the water absorption and allows easy cleaning of graffiti.
