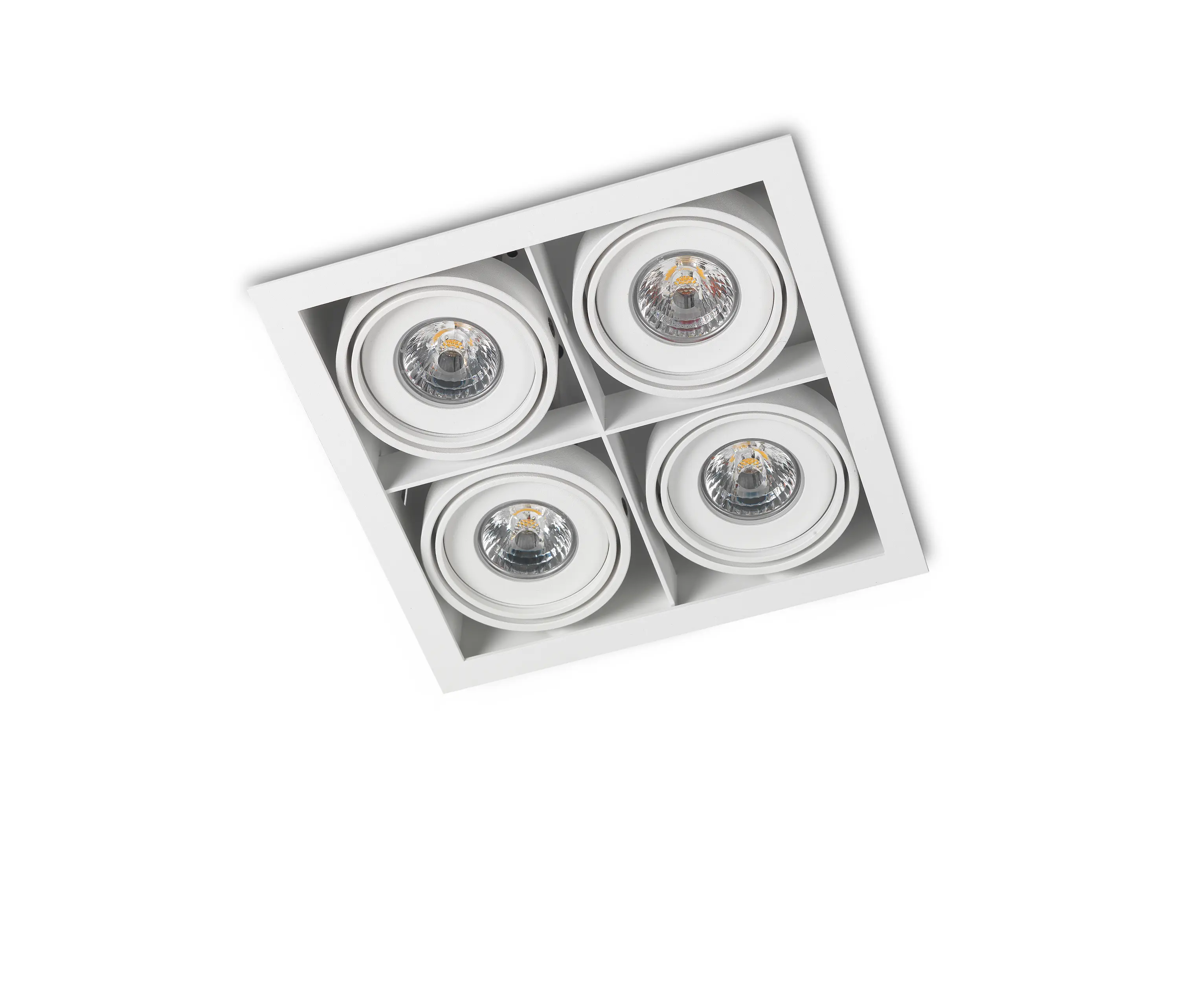

PICCOLO FRAME SQUARE 4X COB LED

4X COB LED

PRODUCT SPECS

Cut-out size ■ 210 x 210mm

Min recessed height 120mm

Weight 1.8kg

Glow wire test 850°C

POWER SPECS

Gear transfo included

Lamp power 11W

LIGHT SPECS

Light source included 1

CRI 90+

Max LED power 11W

Dimmable NON DIMMABLE

Beam angle 30°

Color temperature 3000K

WH/WH BB95201A CL12_30NW 3000K 30° 4X 11W

WH/BLK BB95201-2A CL12_30NW 3000K 30° 4X 11W

GR/BLK BB95203A CL12_30NW 3000K 30° 4X 11W

Dimmable IGBT/TRIAC DIMMABLE

Beam angle 24°

Color temperature 2700K

WH/WH BB85201C CL8_24WW 2700K 24° 4X 10W

WH/BLK BB85201-2C CL8_24WW 2700K 24° 4X 10W

GR/BLK BB85203C CL8_24WW 2700K 24° 4X 10W

WH/BLK/WH BB85201-2-1C CL8_24WW 2700K 24° 4X 10W

Dimmable IGBT/TRIAC DIMMABLE

Beam angle 30°

Color temperature 3000K

WH/WH BB95201C CL12_30NW 3000K 30° 4X 11W

WH/BLK BB95201-2C CL12_30NW 3000K 30° 4X 11W

GR/BLK BB95203C CL12_30NW 3000K 30° 4X 11W

WH/BLK/WH BB95201-2-1C CL12_30NW 3000K 30° 4X 11W

Dimmable 1-10V/PUSH/DALI DIMMABLE

Beam angle 24°

Color temperature 2700K

WH/WH BB85201B CL8_24WW 2700K 24° 4X 10W

WH/BLK BB85201-2B CL8_24WW 2700K 24° 4X 10W

GR/BLK BB85203B CL8_24WW 2700K 24° 4X 10W

WH/BLK/WH BB85201-2-1B CL8_24WW 2700K 24° 4X 10W

Dimmable 1-10V/PUSH/DALI DIMMABLE

Beam angle 30°

Color temperature 3000K

WH/WH BB95201D CL12_30NW 3000K 30° 4X 11W

WH/BLK BB95201-2D CL12_30NW 3000K 30° 4X 11W

GR/BLK BB95203D CL12_30NW 3000K 30° 4X 11W

WH/BLK/WH BB95201-2-1D CL12_30NW 3000K 30° 4X 11W
