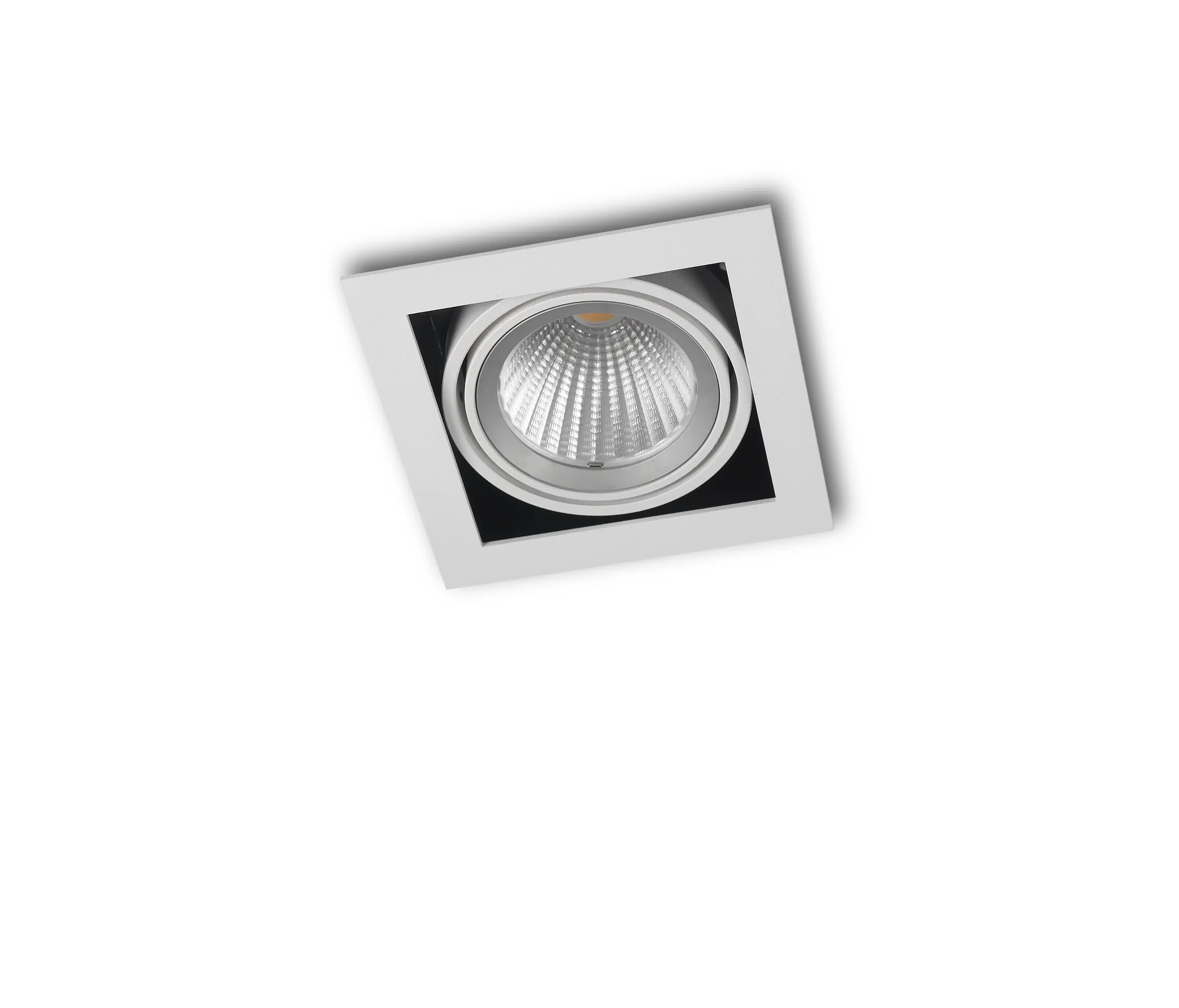

PICCOLO FRAME SINGLE 1X COB LED

1X COB LED

PRODUCT SPECS

Cut-out size ■ 110 x 110mm

Min recessed height 120mm

Weight 0.8kg

Glow wire test 850°C

POWER SPECS

Gear transfo included

Lamp power 11W

LIGHT SPECS

Light source included 1

CRI 90+

Max LED power 11W

Dimmable NON DIMMABLE

Beam angle 30°

Color temperature 3000K

WH/WH BB95101A CL12_30NW 3000K 30° 1X 11W

WH/BLK BB95101-2A CL12_30NW 3000K 30° 1X 11W

BLK/BLK BB95102A CL12_30NW 3000K 30° 1X 11W

GR/GR BB95103-3A CL12_30NW 3000K 30° 1X 11W

GR/BLK BB95103A CL12_30NW 3000K 30° 1X 11W

CHR/WH BB95105-1A CL12_30NW 3000K 30° 1X 11W

CHR/BLK BB95105-2A CL12_30NW 3000K 30° 1X 11W

WH/BLK/WH BB95101-2-1A CL12_30NW 3000K 30° 1X 11W

Dimmable IGBT/TRIAC DIMMABLE

Beam angle 24°

Color temperature 2700K

WH/WH BB85101C CL8_24WW 2700K 24° 1X 10W

WH/BLK BB85101-2C CL8_24WW 2700K 24° 1X 10W

BLK/BLK BB85102C CL8_24WW 2700K 24° 1X 10W

GR/GR BB85103-3C CL8_24WW 2700K 24° 1X 10W

GR/BLK BB85103C CL8_24WW 2700K 24° 1X 10W

CHR/WH BB85105-1C CL8_24WW 2700K 24° 1X 10W

CHR/BLK BB85105-2C CL8_24WW 2700K 24° 1X 10W

WH/BLK/WH BB85101-2-1C CL8_24WW 2700K 24° 1X 10W

Dimmable IGBT/TRIAC DIMMABLE

Beam angle 30°

Color temperature 3000K

WH/WH BB95101C CL12_30NW 3000K 30° 1X 11W

WH/BLK BB95101-2C CL12_30NW 3000K 30° 1X 11W

BLK/BLK BB95102C CL12_30NW 3000K 30° 1X 11W

GR/GR BB95103-3C CL12_30NW 3000K 30° 1X 11W

GR/BLK BB95103C CL12_30NW 3000K 30° 1X 11W

CHR/WH BB95105-1C CL12_30NW 3000K 30° 1X 11W

CHR/BLK BB95105-2C CL12_30NW 3000K 30° 1X 11W

WH/BLK/WH BB95101-2-1C CL12_30NW 3000K 30° 1X 11W

Dimmable 1-10V/PUSH DIMMABLE

Beam angle 24°

Color temperature 2700K

WH/WH BB85101B CL8_24WW 2700K 24° 1X 10W

WH/BLK BB85101-2B CL8_24WW 2700K 24° 1X 10W

BLK/BLK BB85102B CL8_24WW 2700K 24° 1X 10W

GR/GR BB85103-3B CL8_24WW 2700K 24° 1X 10W

GR/BLK BB85103B CL8_24WW 2700K 24° 1X 10W

CHR/WH BB85105-1B CL8_24WW 2700K 24° 1X 10W

CHR/BLK BB85105-2B CL8_24WW 2700K 24° 1X 10W

WH/BLK/WH BB85101-2-1B CL8_24WW 2700K 24° 1X 10W

Dimmable 1-10V/PUSH/DALI DIMMABLE

Beam angle 30°

Color temperature 3000K

WH/WH BB95101DCL12_30NW 3000K 30° 1X 11W

WH/BLK BB95101-2D CL12_30NW 3000K 30° 1X 11W

BLK/BLK BB95102D CL12_30NW 3000K 30° 1X 11W

GR/GR BB95103-3D CL12_30NW 3000K 30° 1X 11W

GR/BLK BB95103D CL12_30NW 3000K 30° 1X 11W

CHR/WH BB95105-1D CL12_30NW 3000K 30° 1X 11W

CHR/BLK BB95105-2D CL12_30NW 3000K 30° 1X 11W

WH/BLK/WH BB95101-2-1D CL12_30NW 3000K 30° 1X 11W

Dimmable 1-10V/PUSH DIMMABLE

Beam angle 24°

Color temperature 2700K

WH/WH BB85101B CL8_24WW 2700K 24° 1X 10W

WH/BLK BB85101-2B CL8_24WW 2700K 24° 1X 10W

BLK/BLK BB85102B CL8_24WW 2700K 24° 1X 10W

GR/GR BB85103-3B CL8_24WW 2700K 24° 1X 10W

GR/BLK BB85103B CL8_24WW 2700K 24° 1X 10W

CHR/WH BB85105-1B CL8_24WW 2700K 24° 1X 10W

CHR/BLK BB85105-2B CL8_24WW 2700K 24° 1X 10W

WH/BLK/WH BB85101-2-1B CL8_24WW 2700K 24° 1X 10W
