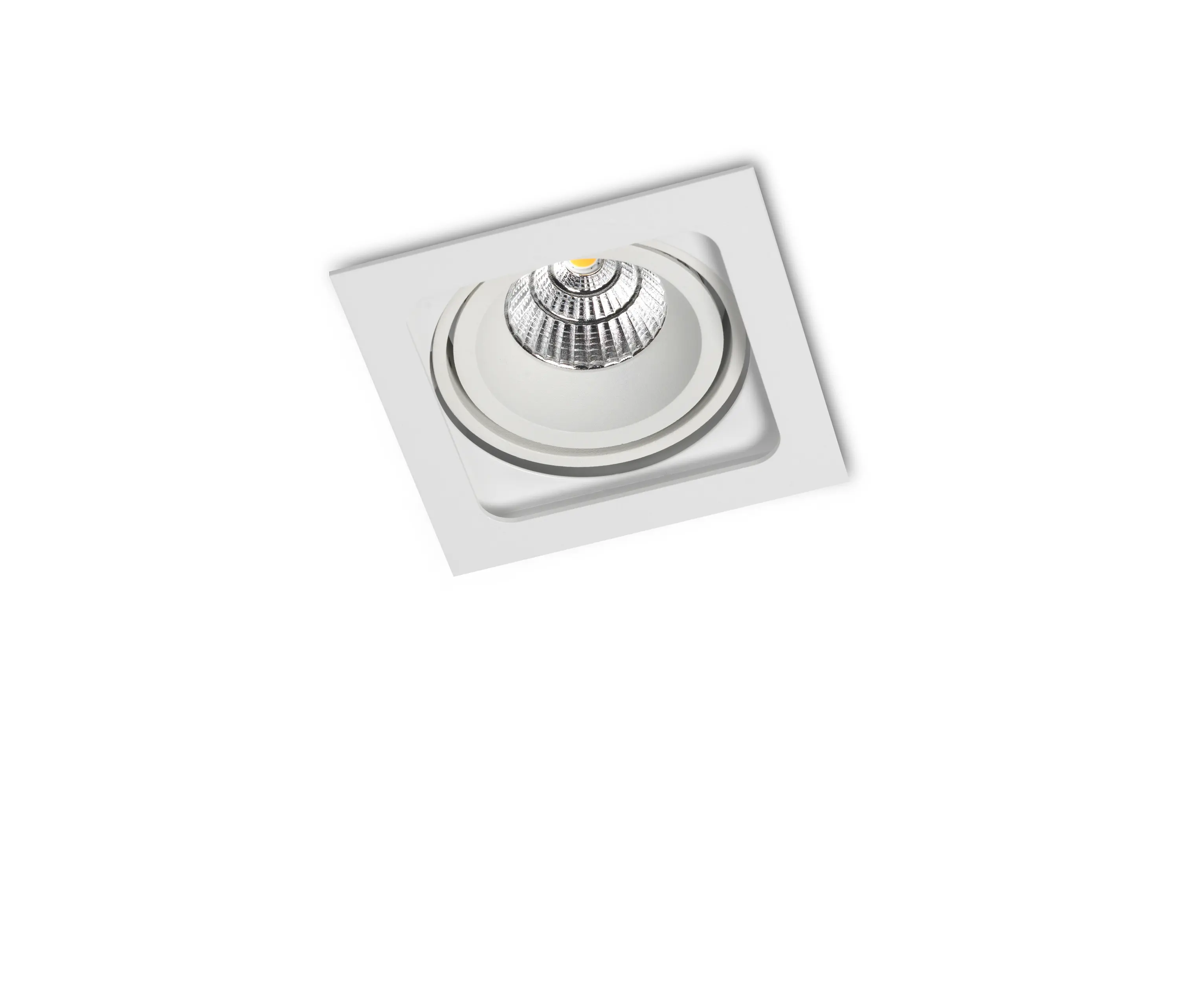

PICCOLO FRAME DEEP SINGLE 1X CONE COB LED

1X CONE COB LED

PRODUCT SPECS

Cut-out size ■ 110 x 110mm

Min recessed height 120mm

Weight 0.8kg

Glow wire test 850°C

POWER SPECS

Gear transfo included

Lamp power 7W

LIGHT SPECS

Light source included 1

Beam angle 30°

Color temperature 2700K

CRI 80+

Max LED power 7W

Dimmable

NON DIMMABLE

WH/WH BB86101A CL7_30WW 2700K 30° 1X 7W

WH/BLK BB86101-2A CL7_30WW 2700K 30° 1X 7W

BLK/BLK BB86102A CL7_30WW 2700K 30° 1X 7W

GR/GR BB86103-3A CL7_30WW 2700K 30° 1X 7W

GR/BLK BB86103A CL7_30WW 2700K 30° 1X 7W

CHR/WH BB86105-1A CL7_30WW 2700K 30° 1X 7W

CHR/BLK BB86105-2A CL7_30WW 2700K 30° 1X 7W

WH/BLK/WH BB86101-2-1A CL7_30WW 2700K 30° 1X 7W

IGBT/TRIAC/1-10V DIMMABLE

WH/WH BB86101F CL7_30WW 2700K 30° 1X 7W

WH/BLK BB86101-2F CL7_30WW 2700K 30° 1X 7W

BLK/BLK BB86102F CL7_30WW 2700K 30° 1X 7W

GR/GR BB86103-3F CL7_30WW 2700K 30° 1X 7W

GR/BLK BB86103F CL7_30WW 2700K 30° 1X 7W

CHR/WH BB86105-1F CL7_30WW 2700K 30° 1X 7W

CHR/BLK BB86105-2F CL7_30WW 2700K 30° 1X 7W

WH/BLK/WH BB86101-2-1F CL7_30WW 2700K 30° 1X 7W

1-10V/PUSH DIMMABLE

WH/WH BB86101B CL7_30WW 2700K 30° 1X 7W

WH/BLK BB86101-2B CL7_30WW 2700K 30° 1X 7W

BLK/BLK BB86102B CL7_30WW 2700K 30° 1X 7W

GR/GR BB86103-3B CL7_30WW 2700K 30° 1X 7W

GR/BLK BB86103B CL7_30WW 2700K 30° 1X 7W

CHR/WH BB86105-1B CL7_30WW 2700K 30° 1X 7W

CHR/BLK BB86105-2B CL7_30WW 2700K 30° 1X 7W

WH/BLK/WH BB86101-2-1B CL7_30WW 2700K 30° 1X 7W

DALI DIMMABLE

WH/WH BB86101D CL7_30WW 2700K 30° 1X 7W

WH/BLK BB86101-2D CL7_30WW 2700K 30° 1X 7W

BLK/BLK BB86102D CL7_30WW 2700K 30° 1X 7W

GR/GR BB86103-3D CL7_30WW 2700K 30° 1X 7W

GR/BLK BB86103D CL7_30WW 2700K 30° 1X 7W

CHR/WH BB86105-1D CL7_30WW 2700K 30° 1X 7W

CHR/BLK BB86105-2D CL7_30WW 2700K 30° 1X 7W

WH/BLK/WH BB86101-2-1D CL7_30WW 2700K 30° 1X 7W
