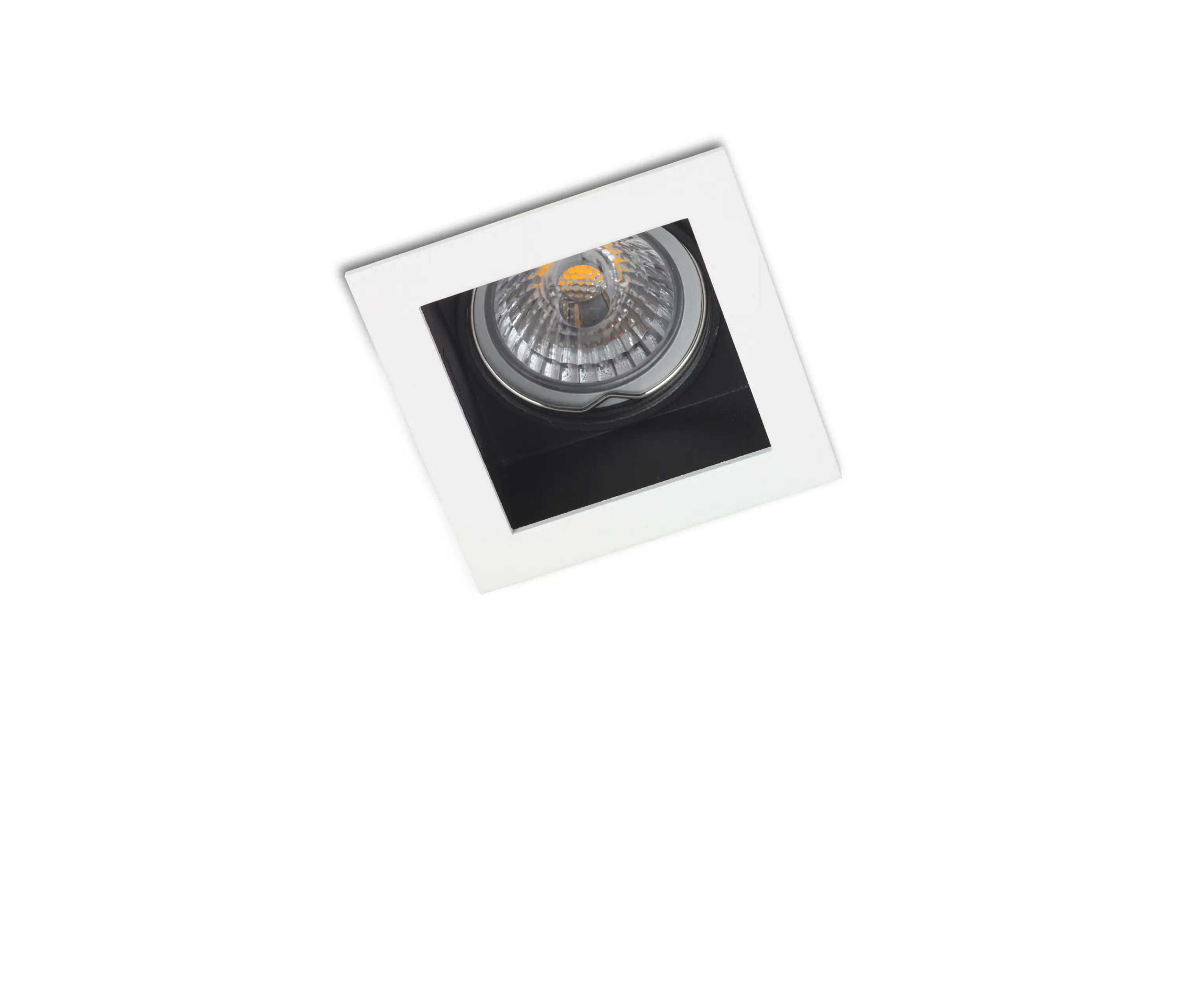

KWADRO 1X COB LED

1X COB LED

PRODUCT SPECS

Cut-out size ■ 73 x 66mm

Min recessed height 130mm

Weight 0.4kg

Glow wire test 850°C

POWER SPECS

Gear transfo included

Lamp power 10W

LIGHT SPECS

Light source included 1

Beam angle 24°

Color temperature 2700K

CRI 90+

Max LED power 10W

Dimmable

IGBT/TRIAC DIMMABLE

WH/WH BB85001C CL8_24WW 2700K 24° 1X 10W

WH/BLK BB85011C CL8_24WW 2700K 24° 1X 10W

BLK/BLK BB85018C CL8_24WW 2700K 24° 1X 10W

GR/GR BB85003C CL8_24WW 2700K 24° 1X 10W

GR/BLK BB85012C CL8_24WW 2700K 24° 1X 10W

ALU BR/BLK BB85016C CL8_24WW 2700K 24° 1X 10W

GLD/BLK BB85014C CL8_24WW 2700K 24° 1X 10W

DALI DIMMABLE

WH/WH BB85001D CL8_24WW 2700K 24° 1X 10W

WH/BLK BB85011D CL8_24WW 2700K 24° 1X 10W

BLK/BLK BB85018D CL8_24WW 2700K 24° 1X 10W

GR/GR BB85003D CL8_24WW 2700K 24° 1X 10W

GR/BLK BB85012D CL8_24WW 2700K 24° 1X 10W

ALU BR/BLK BB85016D CL8_24WW 2700K 24° 1X 10W

GLD/BLK BB85014D CL8_24WW 2700K 24° 1X 10W
