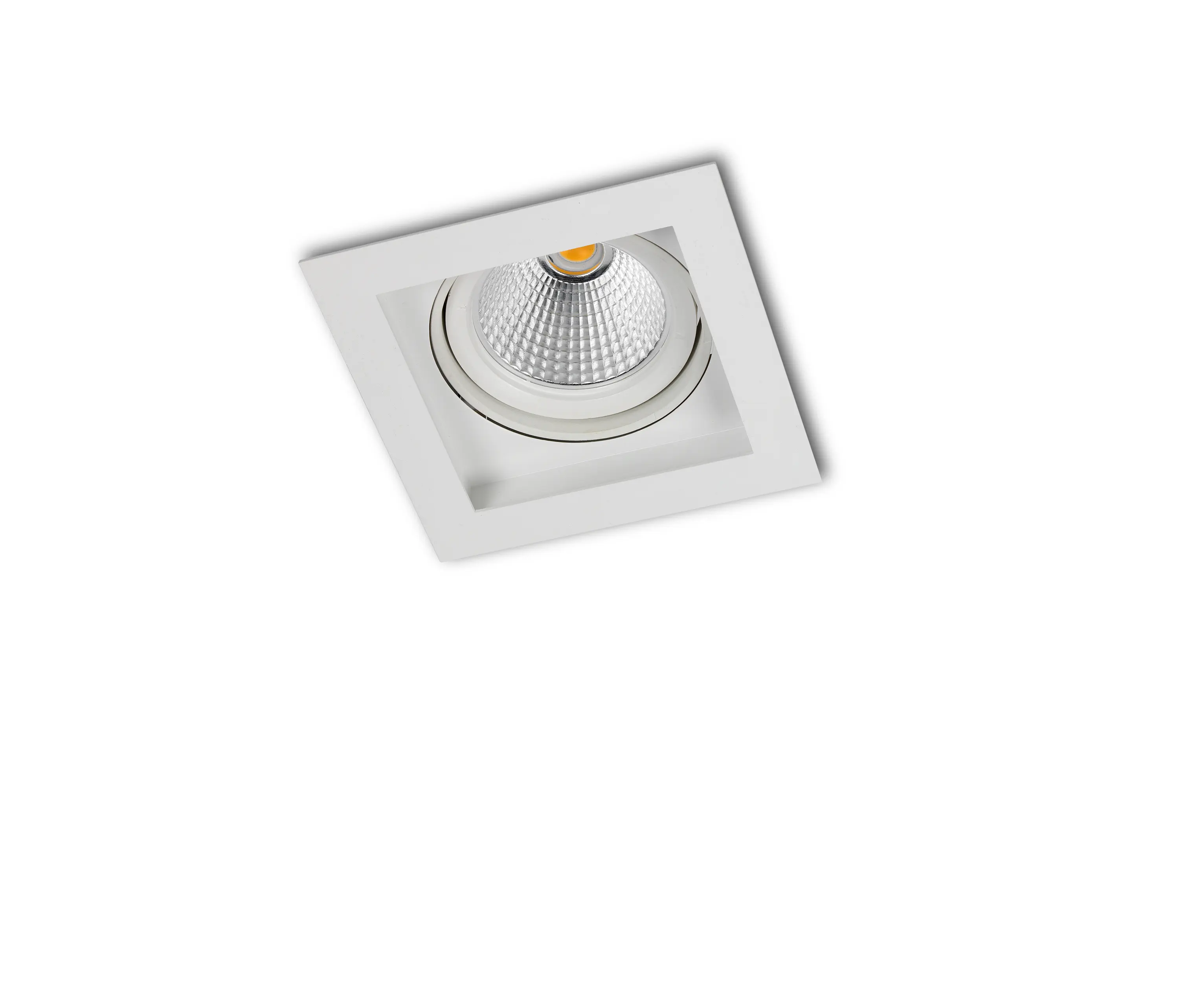

FRAME DEEP 1X COB LED

1X COB LED

PRODUCT SPECS

Cut-out size ■ 175 x 175mm

Min recessed height 200mm

Weight 2kg

Glow wire test 850°C

POWER SPECS

Gear transfo included

Lamp power 34W

LIGHT SPECS

Light source included 1

Beam angle 24°

Color temperature 3000K

CRI 90+

Max LED power 34W

Dimmable

NON DIMMABLE

WH/WH BB94591A CL45_24NW 3000K 24° 1X 34W

WH/WH BB94591A CL30_24NW 3000K 24° 1X 26W

WH/BLK BB94591-2A CL45_24NW 3000K 24° 1X 34W

WH/BLK BB94591-2A CL30_24NW 3000K 24° 1X 26W

BLK/BLK BB94592A CL45_24NW 3000K 24° 1X 34W

BLK/BLK BB94592A CL30_24NW 3000K 24° 1X 26W

GR/BLK BB94593A CL45_24NW 3000K 24° 1X 34W

GR/BLK BB94593A CL30_24NW 3000K 24° 1X 26W

CHR/WH BB94515-1A CL45_24NW 3000K 24° 1X 34W

CHR/WH BB94515-1A CL30_24NW 3000K 24° 1X 26W

CHR/BLK BB94595-2A CL45_24NW 3000K 24° 1X 34W

CHR/BLK BB94595-2A CL30_24NW 3000K 24° 1X 26W

WH/BLK/WH BB94591-2-1A CL45_24NW 3000K 24° 1X 34W

WH/BLK/WH BB94591-2-1A CL30_24NW 3000K 24° 1X 26W

DALI DIMMABLE

WH/WH BB94591D CL45_24NW 3000K 24° 1X 34W

WH/WH BB94591D CL30_24NW 3000K 24° 1X 26W

WH/BLK BB94591-2D CL45_24NW 3000K 24° 1X 34W

WH/BLK BB94591-2D CL30_24NW 3000K 24° 1X 26W

BLK/BLK BB94592D CL45_24NW 3000K 24° 1X 34W

BLK/BLK BB94592D CL30_24NW 3000K 24° 1X 26W

GR/BLK BB94593D CL45_24NW 3000K 24° 1X 34W

GR/BLK BB94593D CL30_24NW 3000K 24° 1X 26W

CHR/WH BB94515-1D CL45_24NW 3000K 24° 1X 34W

CHR/WH BB94515-1D CL30_24NW 3000K 24° 1X 26W

CHR/BLK BB94595-2D CL45_24NW 3000K 24° 1X 34W

CHR/BLK BB94595-2D CL30_24NW 3000K 24° 1X 26W

WH/BLK/WH BB94591-2-1D CL45_24NW 3000K 24° 1X 34W

WH/BLK/WH BB94591-2-1D CL30_24NW 3000K 24° 1X 26W
