LEVEL | ZOOM - Suspension
- Startseite/Pendelleuchten/

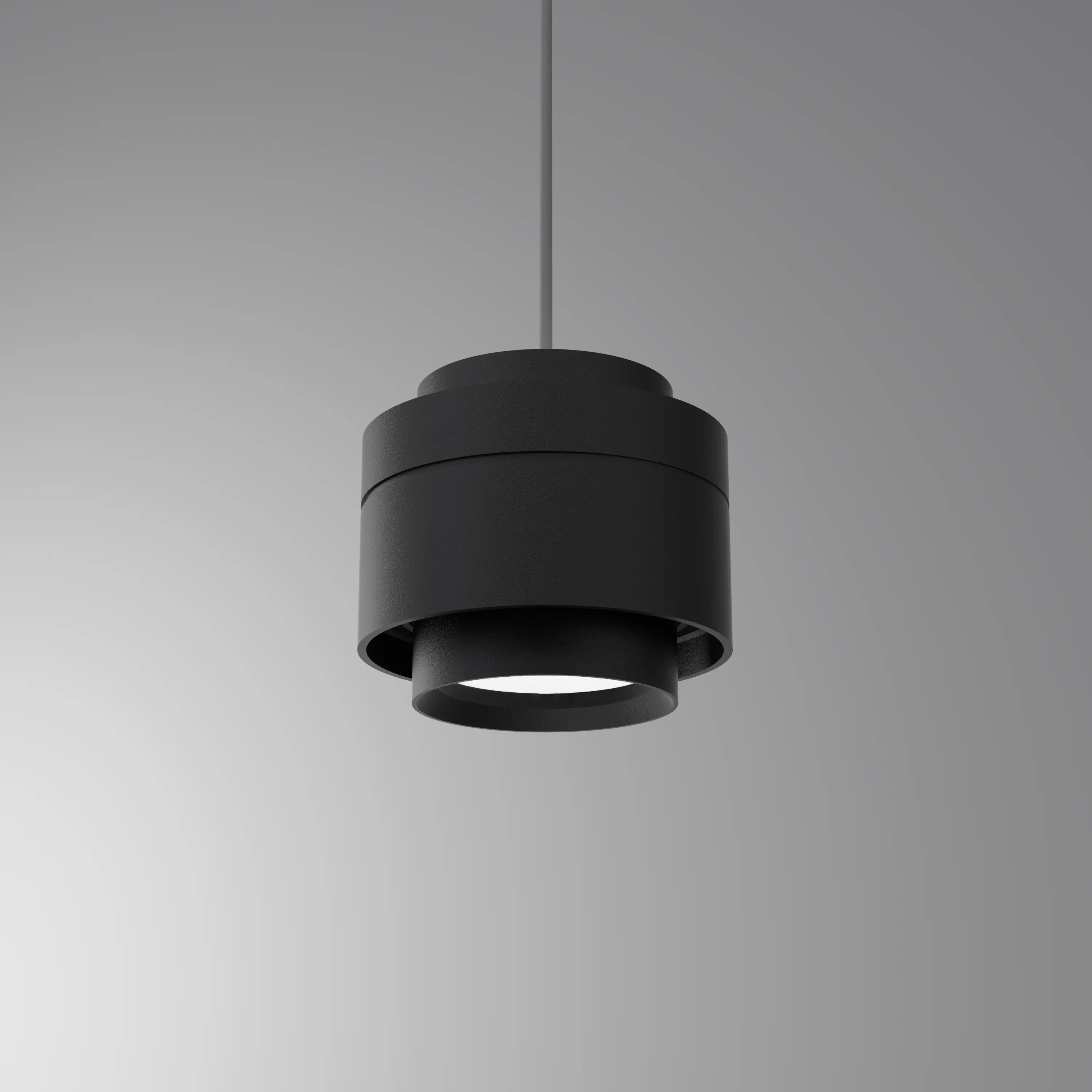

LEVEL | ZOOM - Suspension
Über dieses Produkt
Architonic ID: 20216130
SKU: 41510-45510
Einführungsjahr: 2021
ZOOM sources can be connected to other types of systems [DALI, Insulated pushbutton, Potentiometer Linear 100K, 0-10V Passive, 1-10V Passive]. In the ONE BY ONE dimmable version the sources can be controlled separately (DALI), in the PWM dimmable version they are all controlled together. Rotating optic [patent pending] allows endless beams from 12 to 46 degrees.
1 x 13W- 48V
ON-OFF / PWM Dimmable
1 x 13W- 48V
ONE BY ONE Dimmable
2700K CRI 97- 831 / 1010 lm
3000K CRI 97- 878 / 1068 lm
Dimmable converter included.
Adjustable optic 12°- 46°
Adjustable cable.
III | IP20 | CE
Kg 0,42
Konzept
Straight on, towards a new idea.
LEVEL is a new way of thinking about light: it combines the lightness of a cable system with the functionality of a track. Thanks to its flexibility it is easily transportable and can be cut to size. The simplicity of the system translates into installation speed. LEVEL can be mounted on a wall, ceiling or wall to ceiling.
LEVEL is a 48V system developed for both direct and indirect lighting. It integrates 2 external conductors that allow you to reposition the sources with a simple gesture, where you want and countless times, without cutting the cable.
The system can mount different sources using an innovative conveyed wave technology for the control and dimming of the LED circuit.
