Domo 220 G2 square
Teilen
- Startseite/Deckenleuchten/
Domo 220 G2 square
Über dieses Produkt
Architonic ID: 1171562
Einführungsjahr: 2012
Fixed square recessed DOMO SQ G2 downlight, Lamp Lighting brand. With external ring in white lacquered die-cast aluminium. Model for MID-POWER LED, warm or neutral white colour temperature and fixed or adjustable 1-10V control gear included. Reflector designed by the optical concept named REDIL (Direct Emission LED Reflector), which consists of a two-phase reflection. Insulation class II.
Finish: Matte white
Installation: Recessed
Lamp
Power: 19W / 23W / 34W
Frequency: 230V-50HZ
Lamp: LED
NºLEDs-model: 10 XP-G
º K: 3000
CRI: 80
Gear
Type: Electronic
Plum: 19W
Konzept
DOMO
“The challenge involving the simultaneous achievement of maximum efficiency and visual comfort”

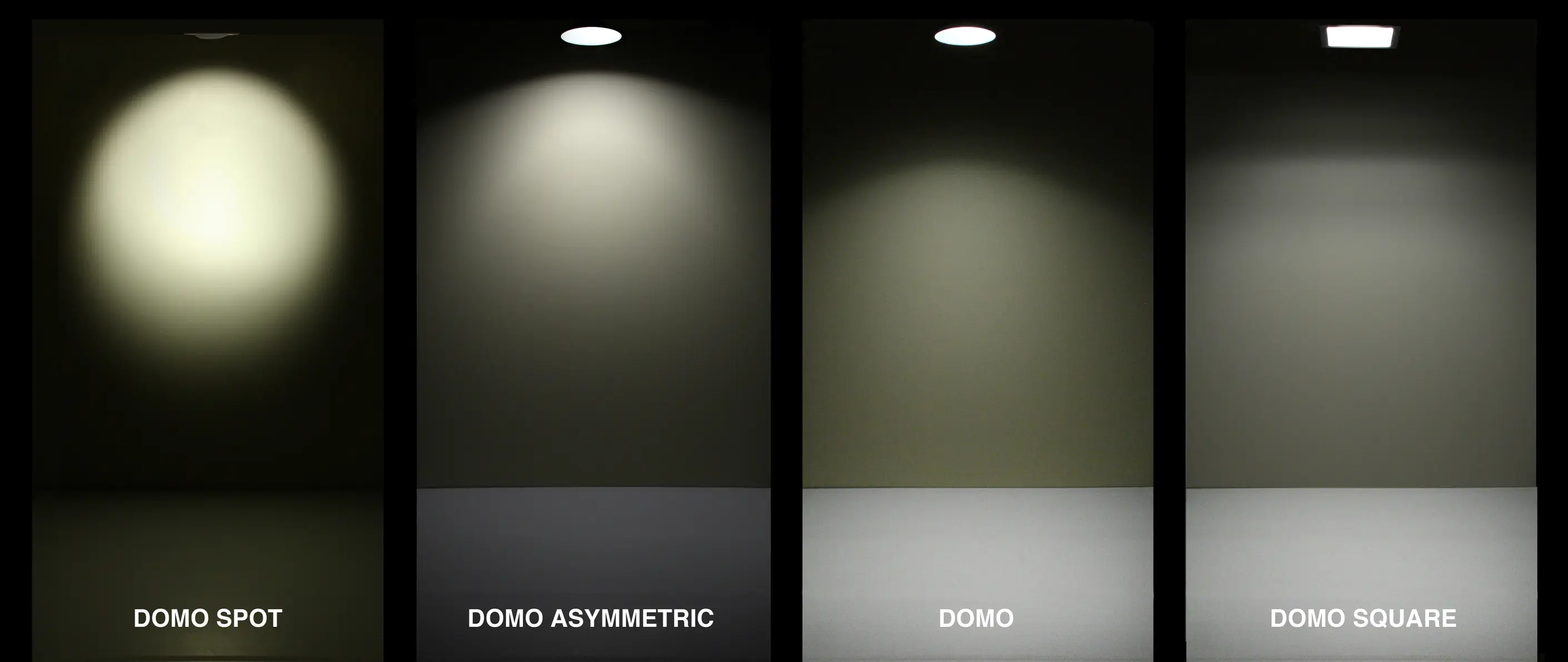

The Domo family came into existence for a simple reason- the need to achieve maximum efficiency and visual comfort in recessed LED downlights. Combining the concepts of “maximum efficiency” and “greater visual comfort” in the same lamp is a highly complex task. This was achieved by creating the optical concept named REDIL (Direct Emission LED Reflector), which consists of a two-phase reflection. The first phase allows the entire direct emission flux to pass freely in order to achieve high efficiency, and, in turn, a reflector aims the reflected flux in the desired direction. In the second phase a second reflector serves as a shield in order to prevent glare. Once the REDIL optical concept had been established, it was decided to expand the Domo range to provide general, adjustable and asymmetric lighting solutions, featuring both LED technology and discharge lamp models.
Design by Lamp Lighting
Dieses Produkt gehört zur Kollektion:
Produktdetails
Category
Allgemeinbeleuchtung, Strahler
Feature
LED-Leuchten
