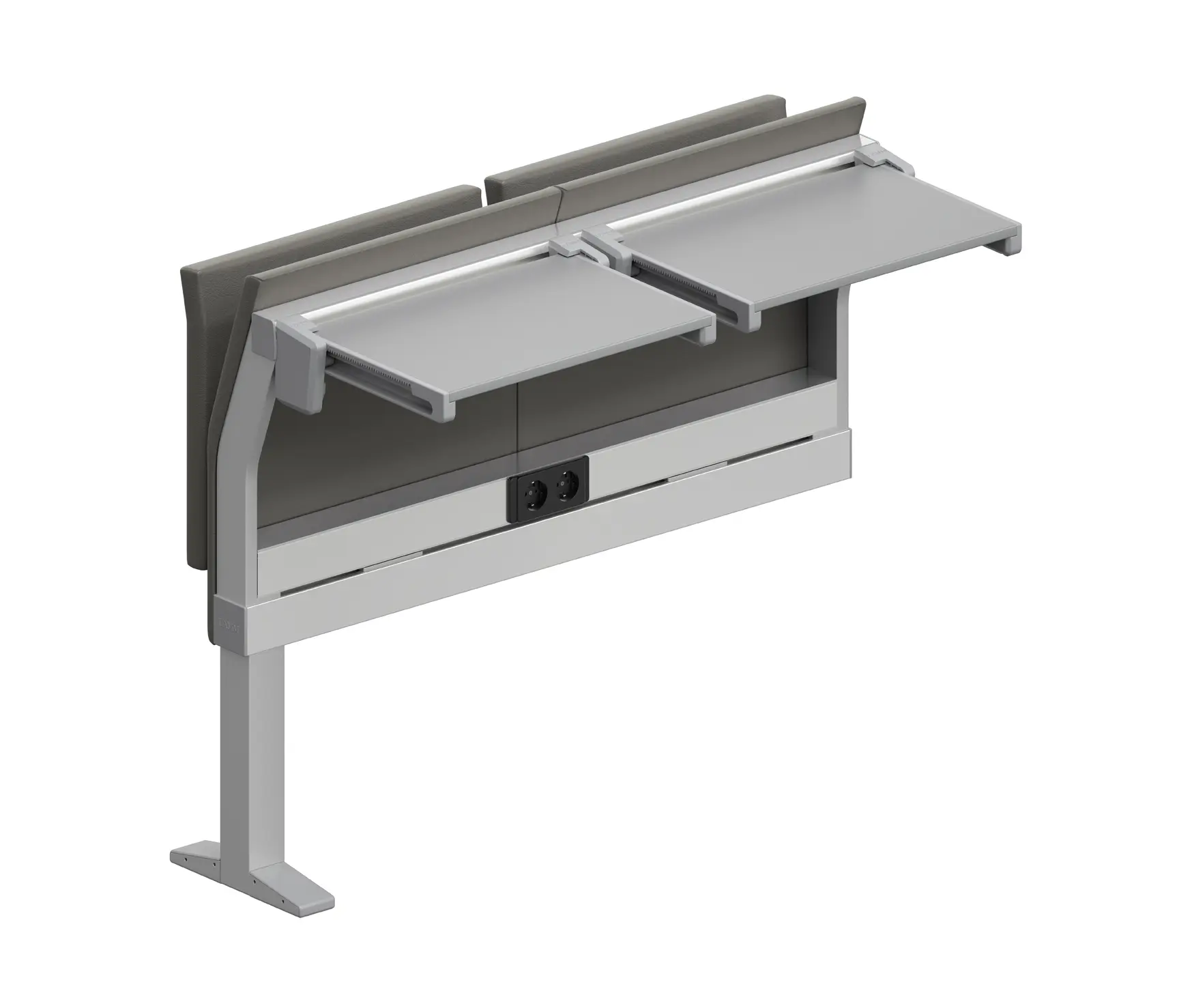

E5000 Upholstered Version

Evolution

It represents an evolution in the E4000 system, the main characteristics of which it inherits, implementing them with greater flexibility of construction and composition (seat with cushioned automatic return, beginning and end of row feet in line with the uprights), and an appreciable increase in seating comfort, thanks to the extra padding of seat and backrest, supplied as standard.

Structure

Extruded anodised aluminium load-bearing bars, with ribbing and channels to fix complementary elements (uprights, writing tables, feet), without the need for pre-set holes and with variable spacing of modules. Can be Installed in a straight line, in a curve, on large steps or on inclined flooring.

Seat and backrest

Tip-up seat with cushioned automatic return and ergonomic plywood backrest, or with extra polyurethane foam padding, covered with fabric or eco-leather. Support and fixing elements and seat movement mechanisms in steel with non-scratch painted finish.

Writing table

Bi-laminate writing table with ABS edge, available both fixed with rounded corners, and tip-up foldaway with anti-panic movement. Tip-up table structure in moulded aluminium to guarantee greater strength during use.

First row panels

Single and floor length, these are made of plywood with natural wood or bi-laminate finish and are applied vertically for straight line or curved configurations.

The first row can be also combined with conference armchairs

Hidden system

E5000 can be installed on the innovative Floor Technology foldaway systems, in the telescopic tribune (only for benches in straight line).

Accessories

Solid wood or padded arms (for version with tip-up table)

Row identification and seat numbering element

Object-holder rack

Provision for electric power supply and data cables (socket on demand)

Inter-row bar for installation without fixing to the flooring.
