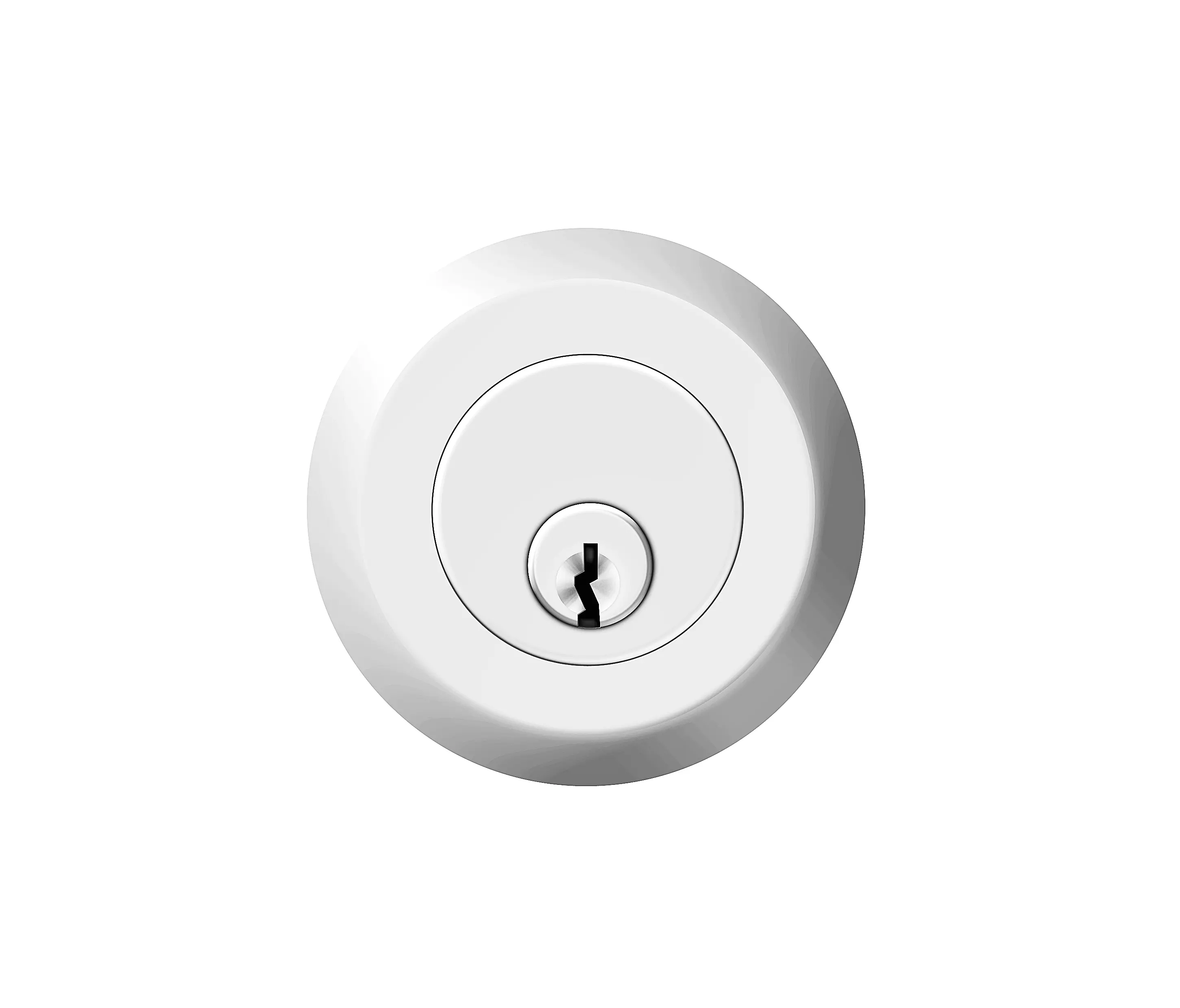

Single Cylinder deadbolt UEDB (72)

• Solid stainless steel collar (ø 2 5/8” (67mm)) for the guidance of the cylinder

• Concealed fixing on the inside based on 3 piece rose system (ø 2 5/8” (67mm))

• UEDB Design harmonized with the US-Latch sets

• Suits standard 2 1/8” (54mm) door prep

• Door range: 2 1/8″- 2 9/16 (46- 65 mm) standard

• For door thickness 1 3/8″- 1 11/16” (35- 43 mm) a distance ring (UEZ D1 12) required

• Adjustable latch with a backset of 2 3/8″ (60 mm) and 2 3/4″- (70 mm)

• Solid Brass Cylinder C keyway

• Stainless steel strike plate with plastic dust cover

• Stainless steel latch face plate

Special options

• UEZ D1 12 (Distance Ring): For door thickness 1 3/8″- 1 11/16″ (35- 43 mm) a distance ring is required

• UZUL D67: UL listed latch

Finish: satin stainless steel (finish code 71)

satin / polished stainless steel (finish code 73)

polished stainless steel (finish code 72)

oil rubbed bronze (finish code 81)

Karcher article no.:

UEDB 71: Deadbolt in finish satin stainless steel

UEDB 72: Deadbolt in finish polished stainless steel

UEDB 73: Deadbolt in finish satin/polished stainless steel

UEDB 81: Deadbolt in finish oil rubbed bronze

UEZ D1 71: Distance ring for UEDB 71 and UEDB 73

UEZ D1 72: Distance ring for UEDB 72

UEZ D1 81: Distance ring for UEDB 81
