Doors & Windows | EW70
Architonic ID: 20711434

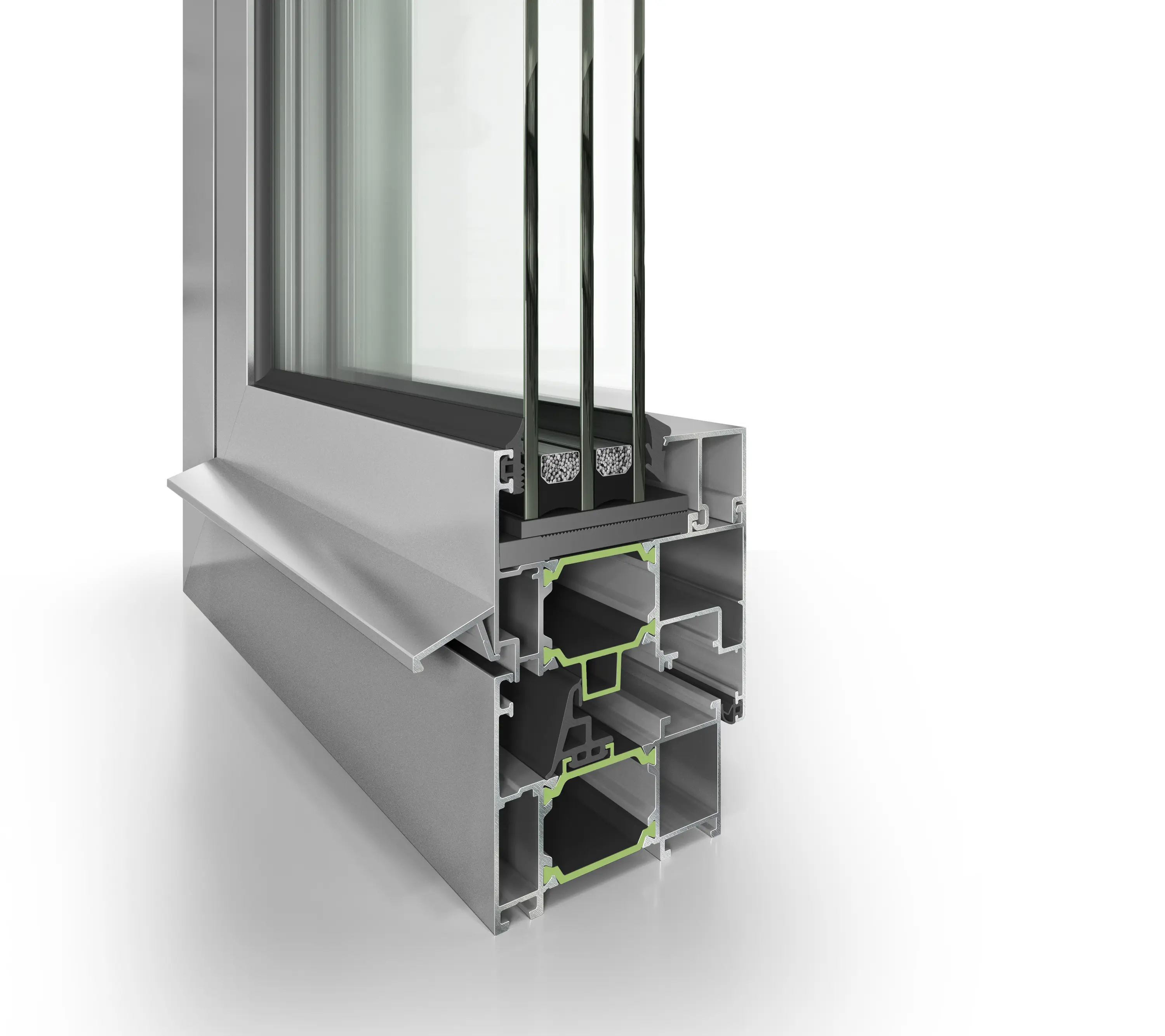

EW70 is a new generation opening window system with thermal break. It provides:
- wide range of profile options for inward opening windows;
- solutions to several configurations;
- material optimal solutions with exceptionally high testing performances;
- accommodation to glazed infills as well as non-transparent panels;
- special hidden vent solution;
- integration with shutter and rolling shutter.
Frame width: 70mm
Min. frame height: 59mm
Casement height (f+v): 74mm / 107mm
Glazing infill range: 17 ÷ 52mm
Max. vent height: 2.300mm
Max. vent width: 1.400mm
Max. vent weight: 130kg
Uf ≥ 1,4 W/(m2K)
Dieses Produkt gehört zur Kollektion:
Aluminium, Metall
