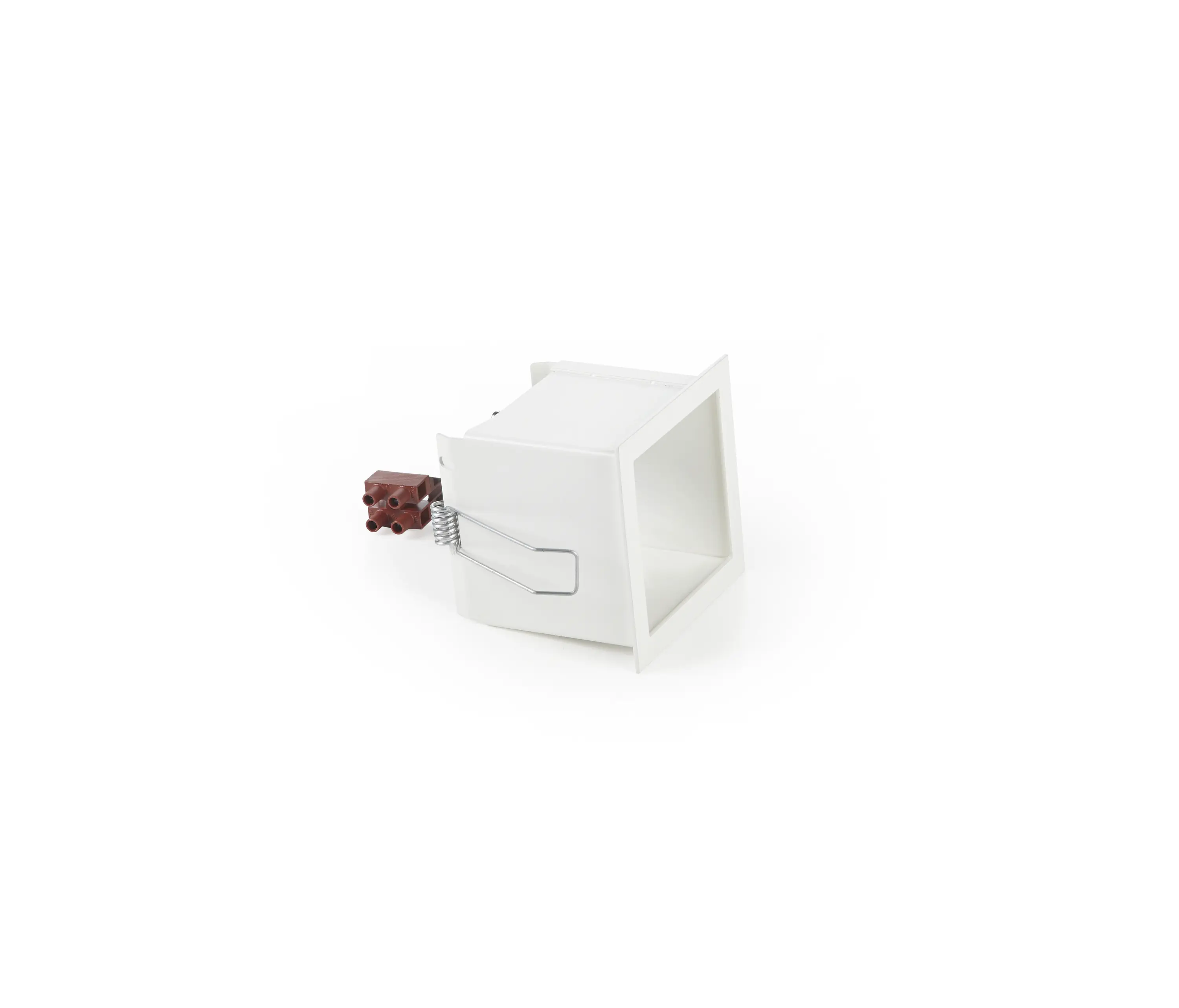

Easy quadro cob led

Name: Easy quadro cob led
Brand: EGOLUCE
SKU: 6431

Easy quadro cob led

Architonic ID: 1463741

SKU: 6431

Einführungsjahr: 2016

Typology: recessed lamps

Materials: metal

Finish: White

Dimensions: 8 x 8 cm / h. 13,5 cm

Light: direct

Source: /CW 5000K /24 /40 /60 COB LED 6,1W 17,3V 350mA 1066lm

/W 4000K /24 /40 /60 COB LED 6,1W 17,3V 350mA 975lm

/WW 3000K /24 /40 /60 COB LED 6,1W 17,3V 350mA 939lm

/XW 2700K /24 /40 /60 COB LED 6,1W 17,3V 350mA 896lm

/CW 5000K /24 /40 /60 COB LED 8,9W 17,8V 500mA 1480lm

/W 4000K /24 /40 /60 COB LED 8,9W 17,8V 500mA 1353lm

/WW 3000K /24 /40 /60 COB LED 8,9W 17,8V 500mA 1303lm

/XW 2700K /24 /40 /60 COB LED 8,9W 17,8V 500mA 1244lm

/W/IP 4000K /24 /38 /58 COB LED IP44 8,9W 17,8V 500mA 1353lm

/WW/IP 3000K /24 /38 /58 COB LED IP44 8,9W 17,8V 500mA 1303lm

Konzept

Recessed spots (minitrim) with remote sources.

Features:

• Recessed installation on the false ceiling through springs.

• Sources: GU10, Module LED COB and Module Power LED.

• IP 44 using the module LED COB 0108/IP.

• Beam angles available: LED COB 24°,40° and 60° Power LED 10°, 25°and 40°.

• Colour temperatures: 2700, 3000, 4000 and 5000K.

• Dimmer: DALI, Push, 1-10V and CASAMBI.

• Emergency group

• CRI>90 upon request for the LED Cob version.

Dieses Produkt gehört zur Kollektion:

TECHNICAL - SPOTS
