Accessories Hanging System

Angled Mounting Bracket

Dimensions:

Diameter: 19 cm (5.9” in)

Height: 7 cm (2.8” in)

Material:

316 Marine Grade Stainless Steel Mirror Finish

For use on angled or pitched areas. Fully adjustable to any angle.

Standard Mounting Bracket

Dimensions:

Diameter: 19 cm (7.5” in)

Height: 2.5 cm (1” cm)

Material:

316 Marine Grade Stainless Steel Mirror Finish

Additional Mounting brackets available for multiple hanging locations. One Cocoon can be hung in numerous locations. Great versatility and value.

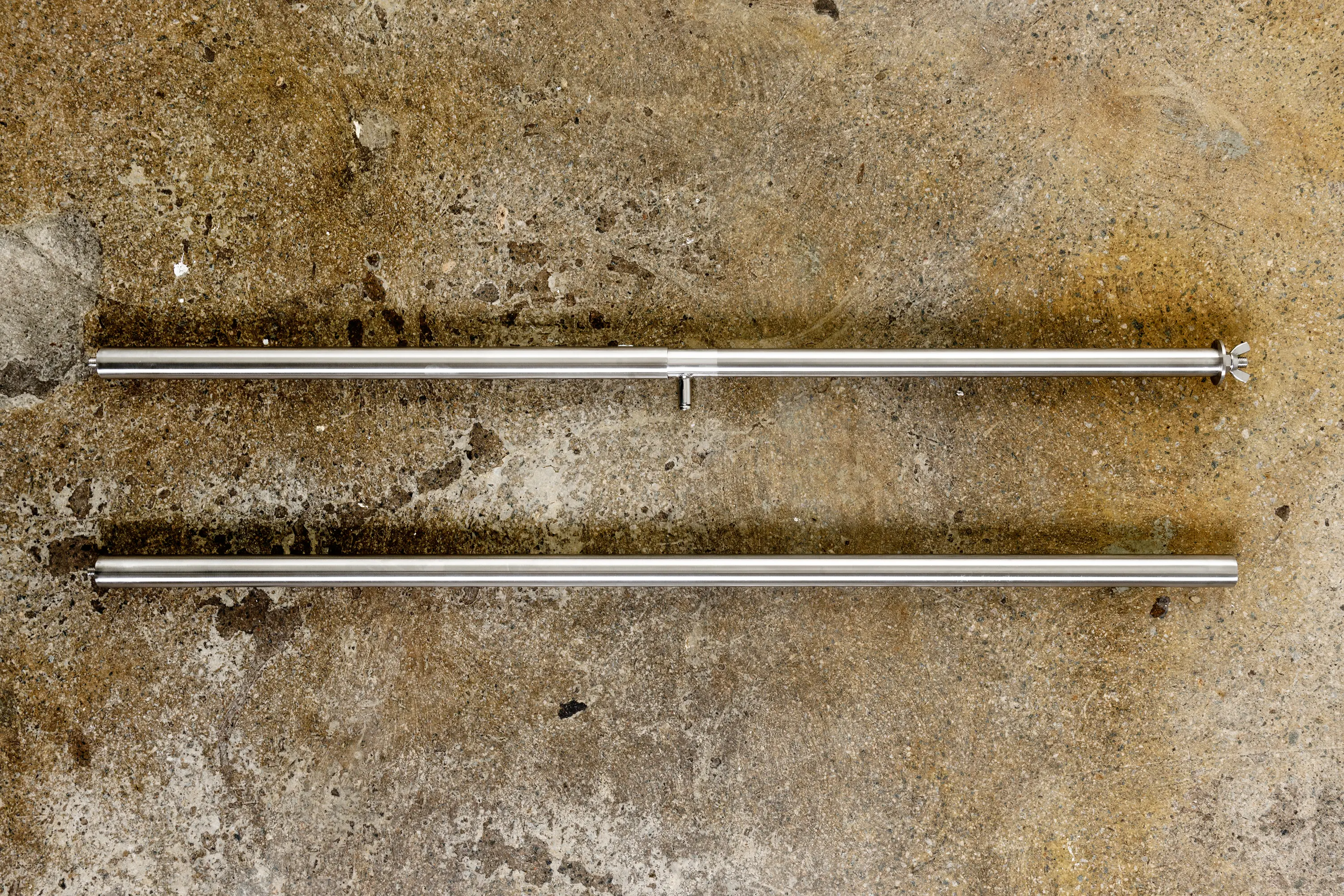

Extension Poles

Dimensions:

• 50 cm (20” in)

• 100 cm (40” in)

Materials:

316 Marine grade stainless steel with hairline finish.

The extension poles fit between the mounting bracket and hanging system enabling the unit to be hung in higher areas without loosing the adjustable qualities of the hanging system.

Please Note:

The maximum length of the complete hanging system including the unit is 182.5 cm (72” in)

Example:

Roof Height: 265 cm (8’ ft 7” in)

Less 182.5 cm (72” in)
