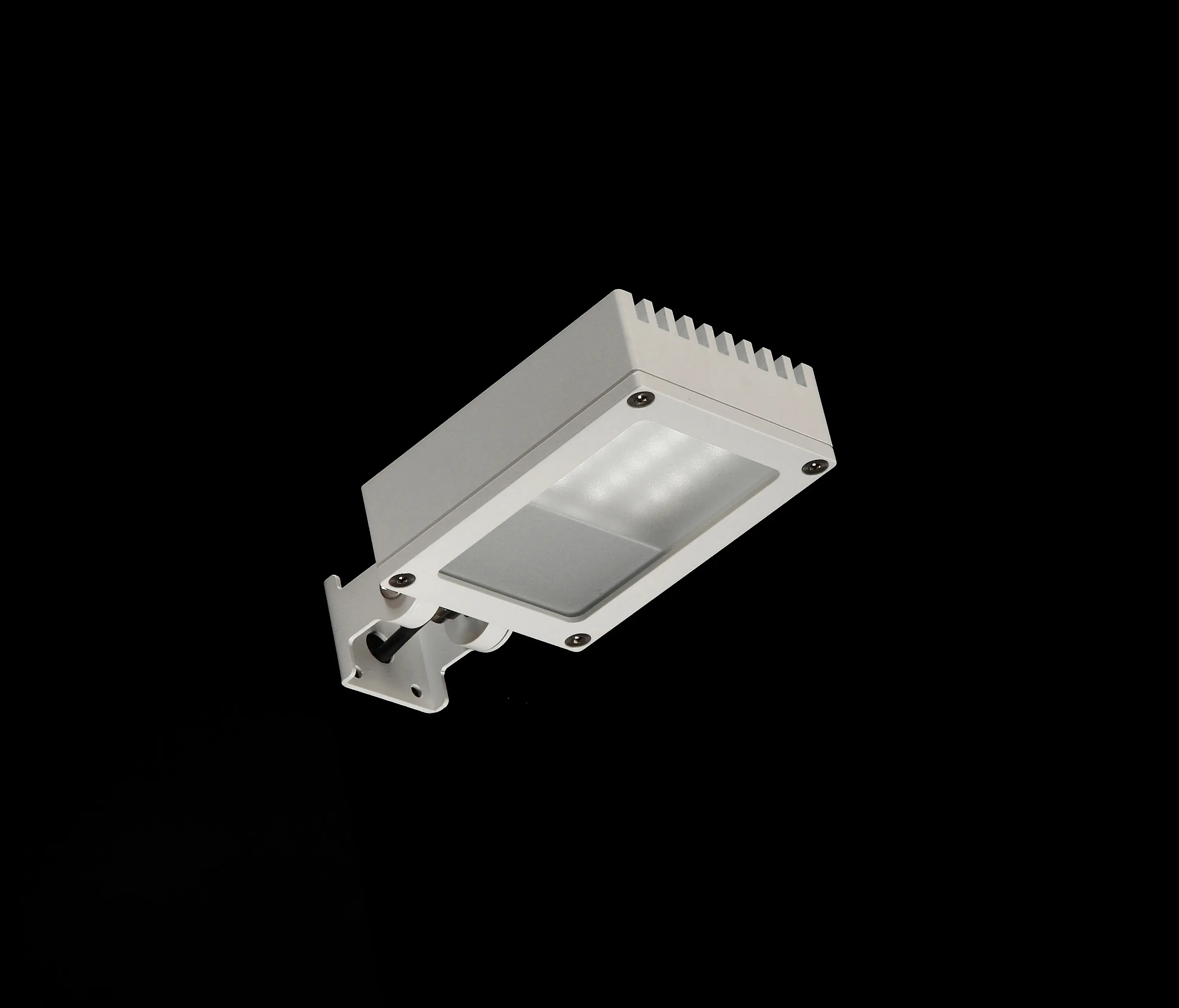

Perseo 4 Mid-Power LED / Adjustable - Sandblasted Glass

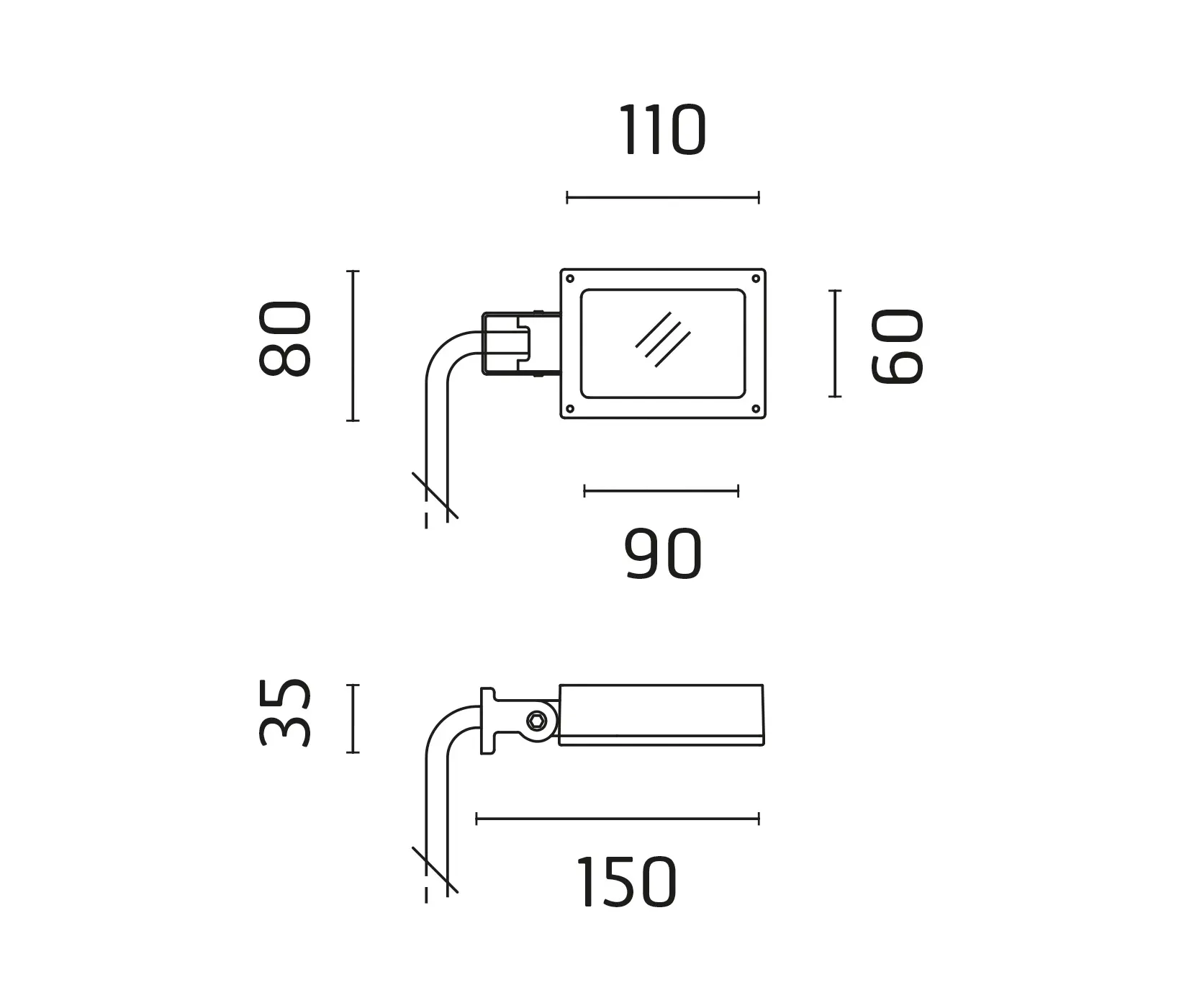

PERSEO 4

• Adjustable projector for installation on wall, on pole/ bracket or on floor.

• Configuration: die-cast aluminium structure, EN AB-47100 alloy (low copper content). Glass diffuser: extra-clear or sandblasted.

• Double layer coating for high resistance to corrosion: the aluminium components are painted with a double coat using powders which are compliant with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminium fitting starts from components which have been sand-blasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is done to protect against rusting.

• Protection rating: IP65.

• In compliance with EN60598-1 standards.

• Class of insulation: II.

• Installation: the luminaire is equipped with 700mm cable

for an easy-to-make connection. The bracket/pole is supplied with a 2-way terminal block for 3-conductior cables – IP68.

• We recommend the use of a connection system with a protection degree greater than or equal to the protection degree of the luminaire.

PERSEO 9

• Adjustable projector for installation on wall, on pole/ bracket or on floor.

• Configuration: die-cast aluminium structure, EN AB-47100 alloy (low copper content). Glass diffuser: extra-clear or sandblasted, fixed to the aluminium frame through a robotic gluing system.

• Double layer coating for high resistance to corrosion: the aluminium components are painted with a double coat using powders which are compliant with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminium fitting starts from components which have been sand-blasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is done to protect against rusting.

• Protection rating: IP65.

• In compliance with EN60598-1 standards.

• Class of insulation: I.

• Installation: the luminaire is equipped with 2000mm

cable for an easy-to-make connection. The bracket/pole is supplied with a 2-way terminal block for 3-conductior cables – IP68.

• We recommend the use of a connection system with a protection degree greater than or equal to the protection degree of the luminaire.

PERSEO 16

• Adjustable projector for installation on wall or on pole.

• Configuration: die-cast aluminium structure. EN AB-47100 alloy (low copper content). Glass diffuser: extra-clear, fixed

to the frame through a robotic gluing system.

• Double layer coating for high resistance to corrosion: the aluminium components are painted with a double coat using powders which are compliant with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminium fitting starts from components which have been sand-blasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is

done to protect against rusting.

• Protection rating: IP65.

• In compliance with EN60598-1 standards.

• Class of insulation: I.

• Installation: wiring through an M16x1.5 metal cable gland

(4,5mm<ø<10mm cables). Outdoor use requires suitable flexible cables assuring the watertightness of the cable gland.

PERSEO 30

• Adjustable projector for installation on wall or on pole.

• Configuration: die-cast aluminium structure. EN AB-47100 alloy (low copper content). Glass diffuser: extra-clear, fixed to the frame through a robotic gluing system. Graduated

stainless steel fixing plate for a precise adjustment.

• Double layer coating for high resistance to corrosion: the aluminium components are painted with a double coat using powders which are compliant with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminium fitting starts from components which have been sand-blasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is

done to protect against rusting.

• Protection rating: IP65.

• In compliance with EN60598-1 standards.

• Class of insulation: I.

• Installation: wiring through an M20x1.5 metal cable gland

(7mm<ø<13mm cables). Outdoor use requires suitable flexible cables assuring the watertightness of the cable gland.

.1 White

.6 Grey

.3 Anthracite

.4 Black

.18 Deep Brown
