Über dieses Produkt

Architonic ID: 1462283

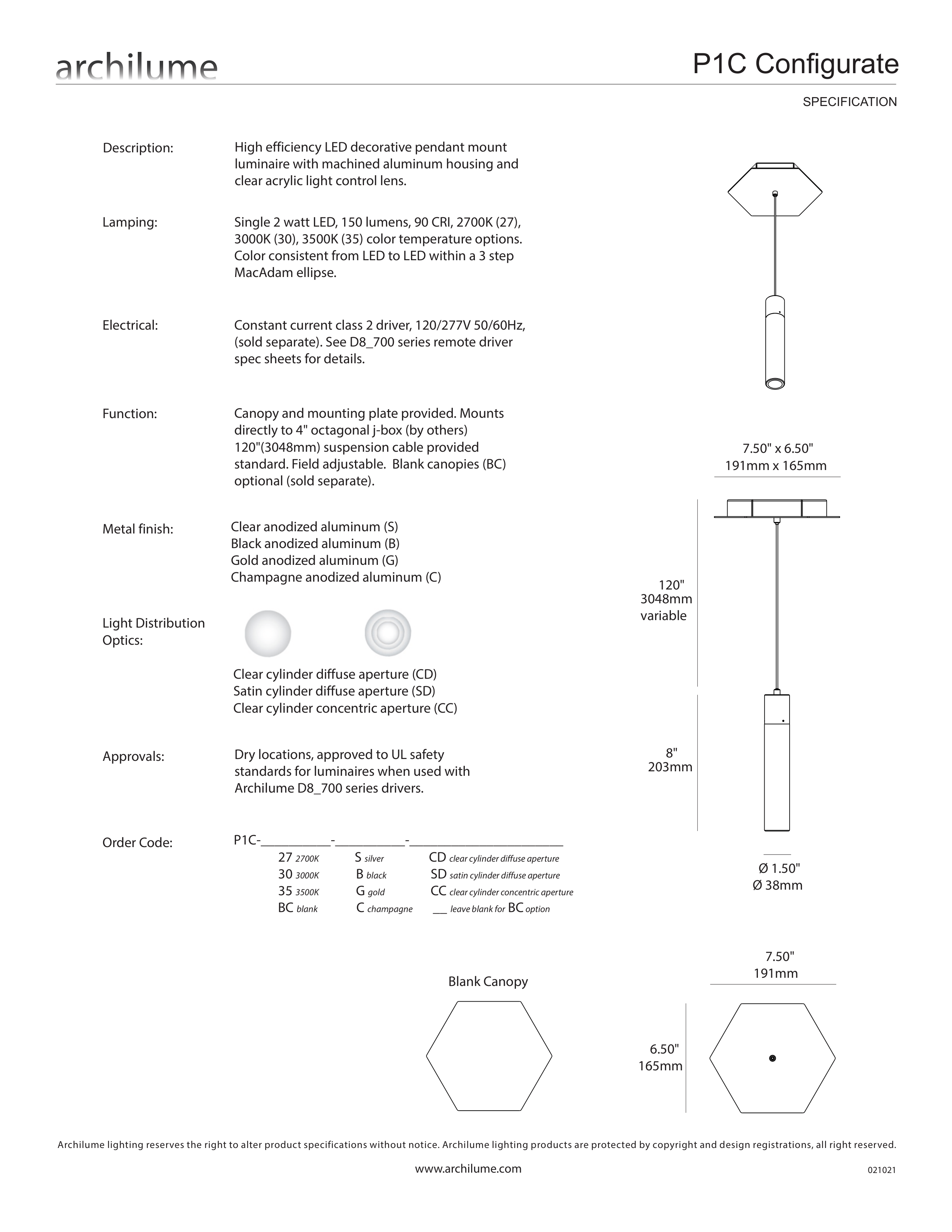

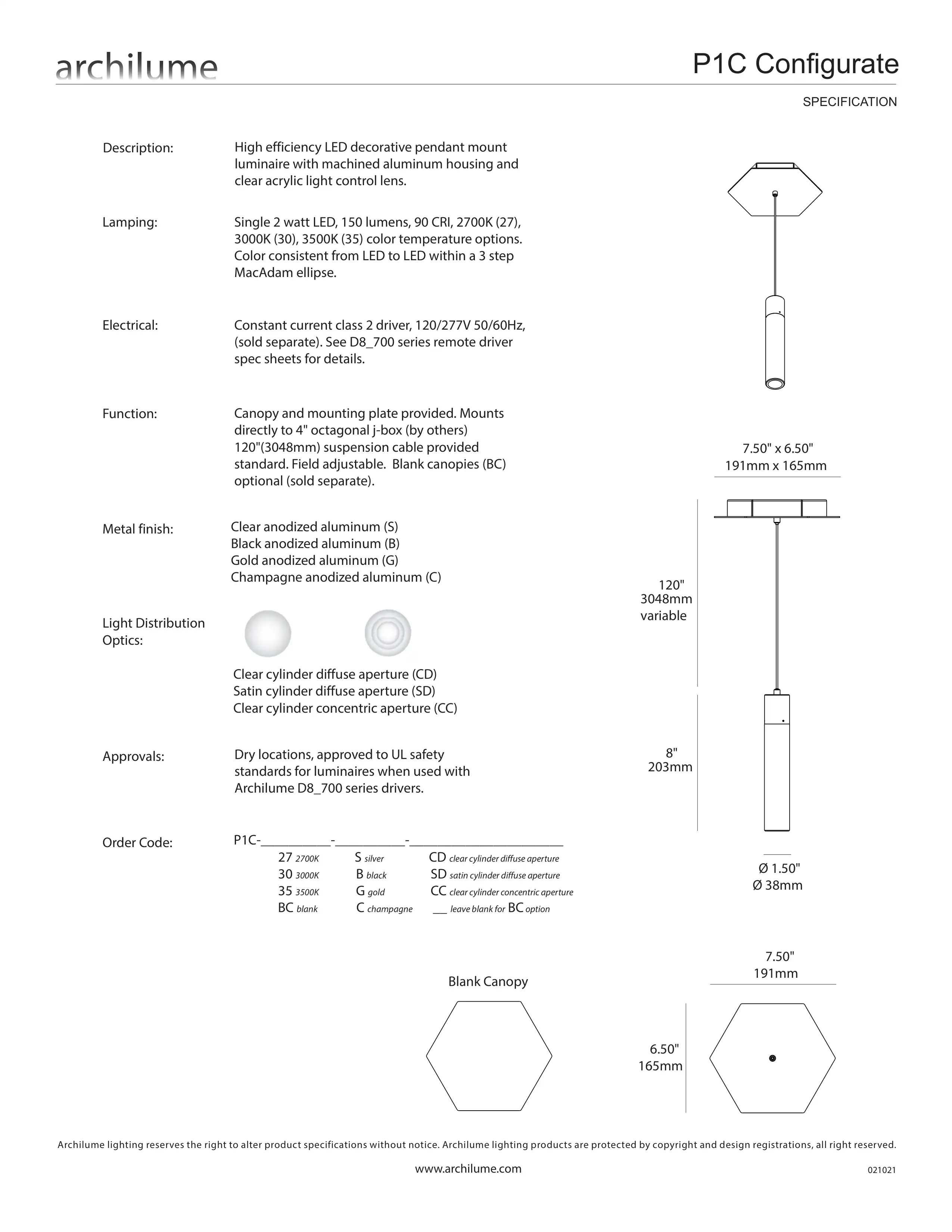

Description:

High efficiency LED decorative pendant mount luminaire with machined aluminum housing and clear acrylic light control lens.

Lamping:

Single 2 watt LED, 150 lumens, 90 CRI, 2700K (warm white color temperature). Color consistent from LED to LED with a 3 step MacAdam ellipse.

Electrical:

Constant current class 2 driver (0-10V dimmable), 120/277V 50/60Hz, 700mA (sold separate). See D8 remote driver spec sheet for details.

Function:

Canopy and mounting plate provided. Mounts directly to 4" octagonal j-box (by others) 120"(3048mm) suspension cable provided standard. Field adjustable.

Metal finish:

Clear anodized aluminum

(Custom anodized finishes available)

Light Distribution Optics:

Diffuse / Concentric

Approvals:

Dry locations, approved to UL safety standards for luminaires.

Konzept

Modular Canopy System

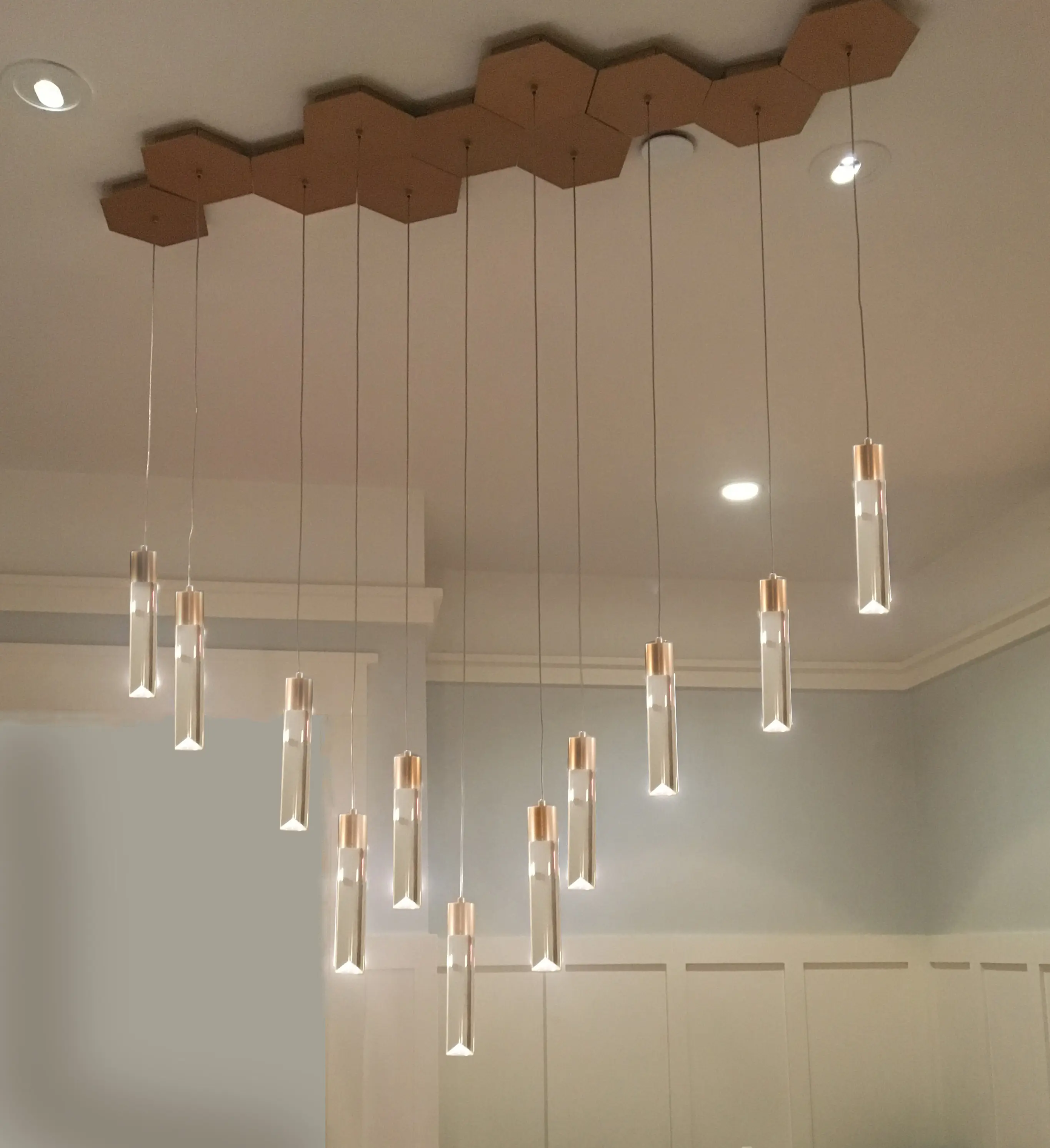

Archilume proudly presents Configurate, a new multiple canopy lighting system for architecture and interior design. Expanding on Archilume’s acclaimed pendant luminaire offering, the Configurate system adds an unconventional hexagonal-shaped surface mount. The jewel-like pendant, suspended from a geometrical base, offers designers the unique opportunity to create compositions of light by arranging multiple pendants across the ceiling plane. Arrays of nested pendants laid out in patterns defined by the designer and informed by the polygonal angles allow for countless arrangement alternatives, transforming the ceiling surface into a creative canvas.
