- Tuis/Suspended lights/
Pendant
Oor hierdie produk
Architonic ID: 1425136
SKU: PEND
Bekendstellingsjaar: 2013
Product Code SKU
Model- Wood Finish- Metal Finish- Color Temp- Voltage- Brightness
Wood Finishes:
Maple- MA
Walnut- WA
Southern Yellow Pine (reclaimed)- SP
Ebonized Oak- EO
Standard Metal Finishes:
Powder Coated White- WH
Powder Coated Slate Grey- SG
Powder Coated Matte Black- MB
Premium Metal Finishes:
Hand Blackened Steel- BL
Polished Nickel- PN
Brushed Brass- BB
Color Temp:
3000K (standard)
2400K, 2700K, 4000K also available
Voltage:
120V 50-60hz- 120
277V 50-60hz- 277
Brightness:
Standard Brightness 12V- SB
High Brightness 24V- HB
Certifications:
UL, CUL
Country of Manufacture:
USA
4ft Pendant
Model: PEND4
Fixture Dimensions: 4’-4”L x 0.75” W x 1.25” H
Canopy Dimensions: 7.5” L x 5.5” W x 1.5” H
Stem Length: 60” length of 3/8” steel stem included, additional stem length available upon request
Fixture Weight: 6lbs
LED Specs 12V (SB):
Light output: 242 lm / CRI Rating: 94.222 / Power draw: 12 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
LED Specs 24V (HB):
Light output: 462 lm / CRI Rating: 89.5 / Power draw: 17 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
6ft Pendant
Model: PEND6
Materials: Steel, wood, led
Fixture Dimensions: 6’-4”L x 0.75” W x 1.25” H
Canopy Dimensions: 7.5” L x 5.5” W x 1.5” H
Stem Length: 60” length of 3/8” steel stem included, additional stem length available upon request
Fixture Weight: 7lbs
Lamp type LED
LED Specs 12V (SB):
Light output: 380 lm / CRI Rating: 94.222 / Power draw: 19 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
LED Specs 24V (HB):
Light output: 728 lm / CRI Rating: 89.5 / Power draw: 27 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
8ft Pendant
Model: PEND8
Fixture Dimensions: 8’-4”L x 0.75” W x 1.25” H
Canopy Dimensions: 7.5” L x 5.5” W x 1.5” H
Stem Length: 60” length of 3/8” steel stem included, additional stem length available upon request
Fixture Weight: 8lbs
LED Specs 12V (SB):
Light output: 518 lm / CRI Rating: 94.222 / Power draw: 26 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
LED Specs 24V (HB):
Light output: 992 lm / CRI Rating: 89.5 / Power draw: 37 W
2 Lutron drivers, built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
10ft Pendant
Model: PEND10
Fixture Dimensions: 10’-5”L x 0.75” W x 1.25” H
Canopy Dimensions: 7.5” L x 5.5” W x 1.5” H
Stem Length: 60” length of 3/8” steel stem included, additional stem length available upon request
Fixture Weight: 9lbs
LED Specs 12V (SB):
Light output: 656 lm / CRI Rating: 94.222 / Power draw: 33 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
LED Specs 24V (HB):
Light output: 1256 lm / CRI Rating: 89.5 / Power draw: 47 W
2 Lutron drivers, built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
12ft Pendant
Model: PEND12
Fixture Dimensions: 12’-5”L x 0.75” W x 1.25” H
Canopy Dimensions: 7.5” L x 5.5” W x 1.5” H
Stem Length: 60” length of 3/8” steel stem included, additional stem length available upon request
Fixture Weight: 10lbs
LED Specs 12V (SB):
Light output: 794 lm / CRI Rating: 94.222 / Power draw: 40 W
Lutron driver built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
LED Specs 24V (HB):
Light output: 1520 lm / CRI Rating: 89.5 / Power draw: 57 W
2 Lutron drivers, built-in forward phase dimming driver 100%-1% Fully dimmable-see list for compatible Lutron Controls
Konsep

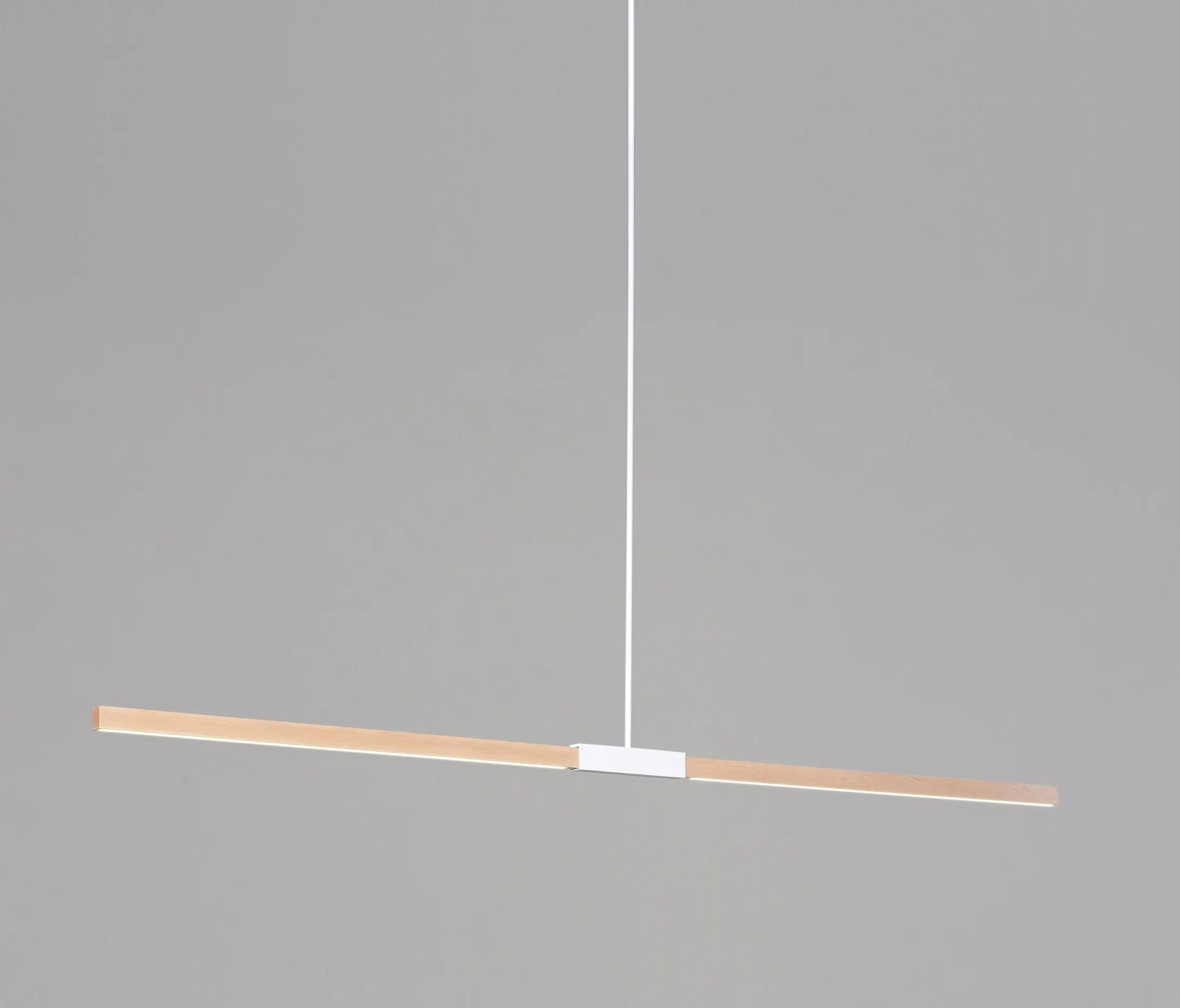

Linear pendants are comprised of a central metal hardware component and two symmetrical bulbs. The overall length of the pendants can range from 2ft, 4ft, 6ft, 8ft, 10ft, or 12ft. A clamping mechanism allows for the leveling of the bulbs. Bulbs can be oriented to provide down-light or uplight. The wooden component is offered in sustainably sourced maple or walnut, reclaimed southern yellow pine, or ebonized oak. Metal hardware is available in powder coated white, slate gray or matte black, hand blackened steel, polished nickel, and brushed brass.
Features:
Handmade in New York City from sustainably sourced materials
Wooden bulb element can be reversed to illuminate up or down
Fully Dimmable
Bulbs available in Standard (SB) or High Brightness (HB)
Materials information:
1. Maple
Sustainably harvested in the Northern territories of the United States, this wood is characterized by its light, homogeneous, and minimal grain.
2. Walnut
Sustainably harvested in Ohio, this wood has a classic, rich, medium-brown chocolate tone.
3. Southern Yellow Pine
Reclaimed from demolished New York City buildings, this wood is remarkable for its reddish hue and rich, old growth grain.
4. Ebonized Oak
Sustainably harvested in the USA, this oak is ebonized to have a dark blackened finish while letting the pronounced texture and grain of the wood shine.
Produkspesifikasies
Material
Metal, Wood
