Kronos

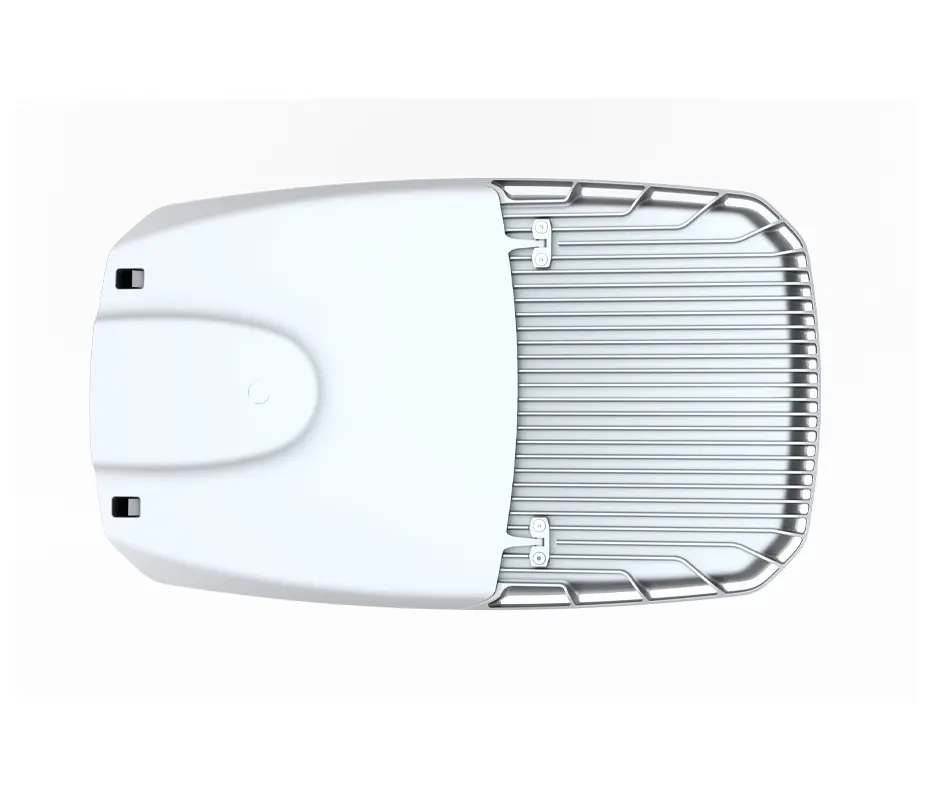

Kronos, lightweight and functional

This product line is efficiency staged. A design to reduce its industrial impact that makes it a light, functional and very efficient luminaire ready to incorporate remote monitoring and control system.

n

IP66 | IK09

Opening without tools

Horizontal or vertical fixing to terminal diameter 60 mm with 110 degrees orientation.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

For installation from 6 to 14m high.

Characteristic dimensions: 600 x 350 x 70

Maximum power

Maximum flow

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 7.4 Kg

IP66

IK09

FHS < 0,1%.

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

F1M6

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1

S50M

P225

P245
