Circus Pro

Circus Pro, robust and versatile

Small-size, solid LED luminaire with optional brackets for different indoor and outdoor applications. Economical solution with superior light quality and significant energy savings.

Electronic efficiency > 90%.

IP66 | IK08 / IK09

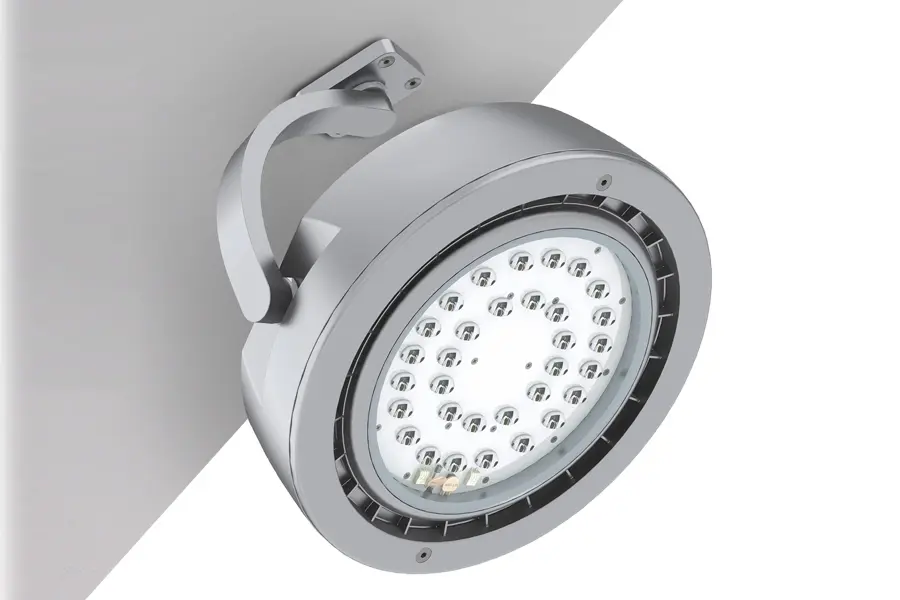

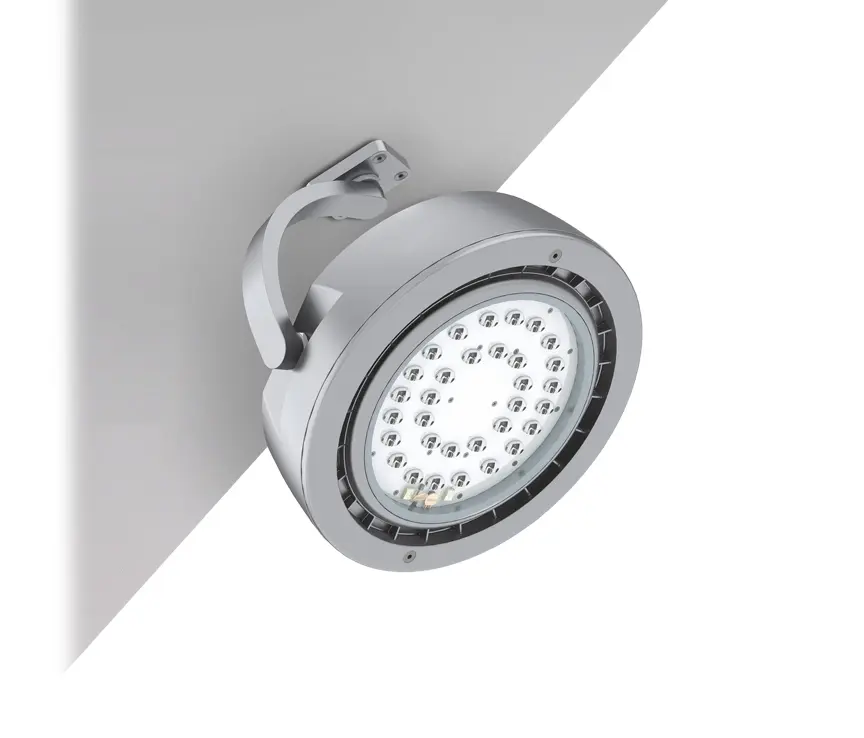

Wall mounting with articulated arm.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Luminaire comprising body, top cover and mounting made of cast aluminium EN AC 44300 with low copper content. Access to the fittings through the top cover, fixed to the body with M6 captive screws and silicone sealing gasket.

For installation from 4 to 8m high.

Characteristic dimensions: 285 x Ø325 mm.

Maximum power 130W

Maximum flux 19700lm.

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 4,5Kg.

IP66

IK08 / IK09

FHS < 0.1% (Cierre lenticular y vidrio plano).

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

F1T2

F2T1

F3T3

F3T4

F4T1

F5T1

P11T

P12T

S30T

F1M6

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1

S50M

P225

P245
