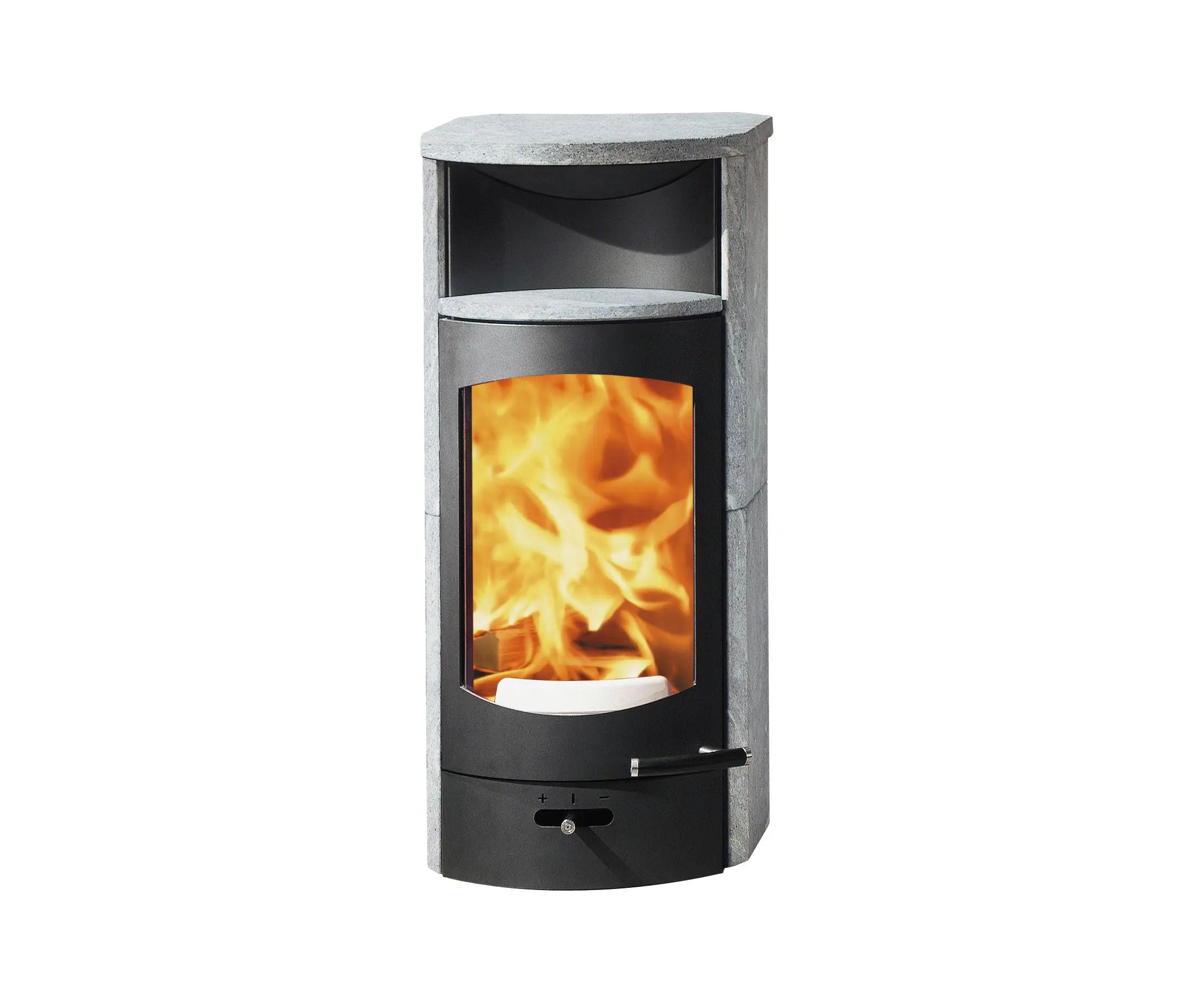

Flok

weights and dimensions

h x w x d for steel version (STM): 958 x 433 x 417 mm

h x w x d with ceramic tiles (KMG):- mm

h x w x d for soapstone version (SPM): 986 X 433 X 417 mm

combustion chamber h x w x d: 379 x 282 x 248 mm

weight STM/KMG/SPM: 110 / 0 / 149 kg

flue outlet diameter: Ø 130

flue outlet diameter middle: 850 mm

heat output

Nominal heat efficiency according to EN 13240: 4 kW

min/max output: 2,5 / 6 kW

Room heating capacity depending on house insulation: 34- 88 m³
