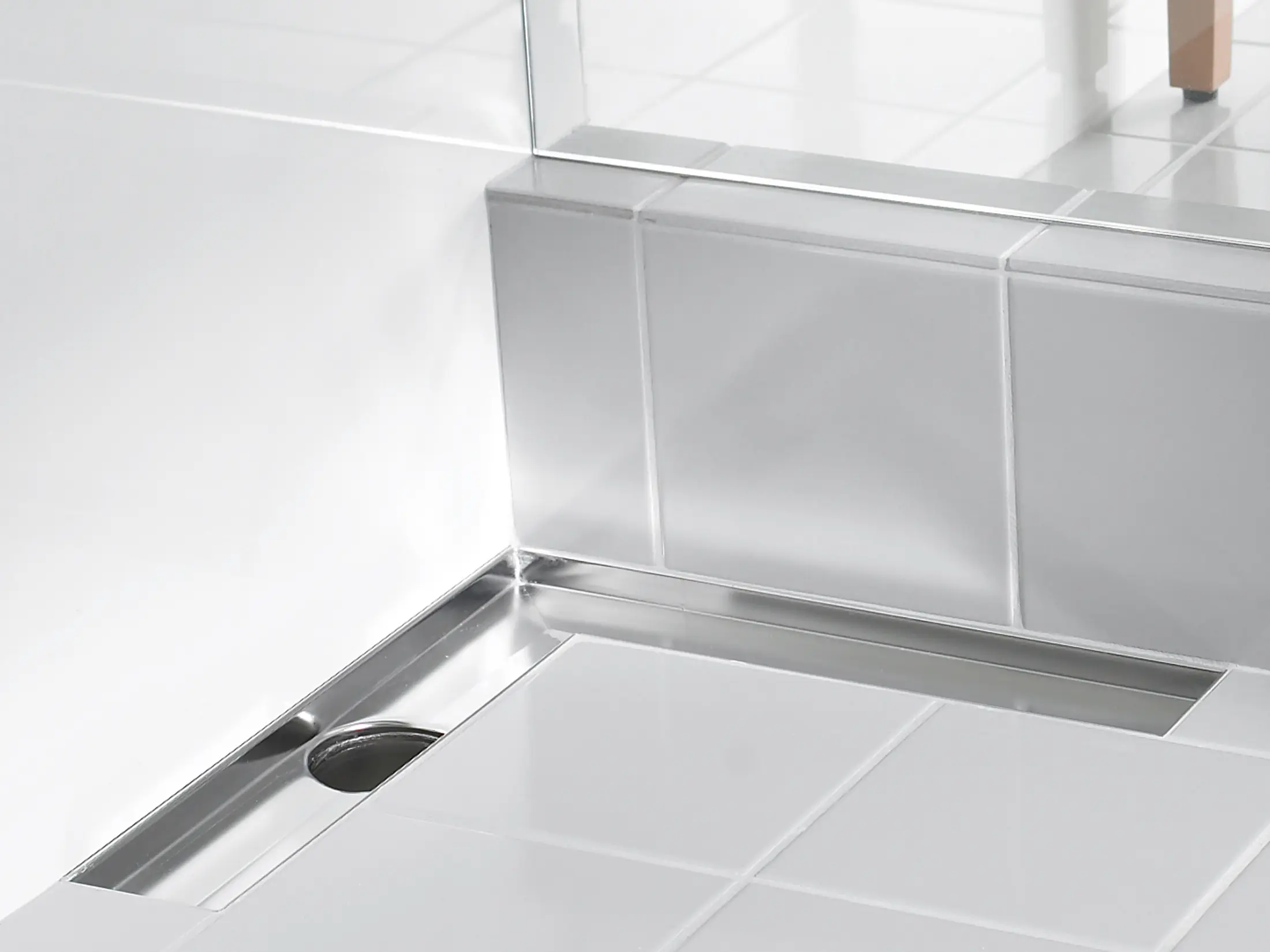

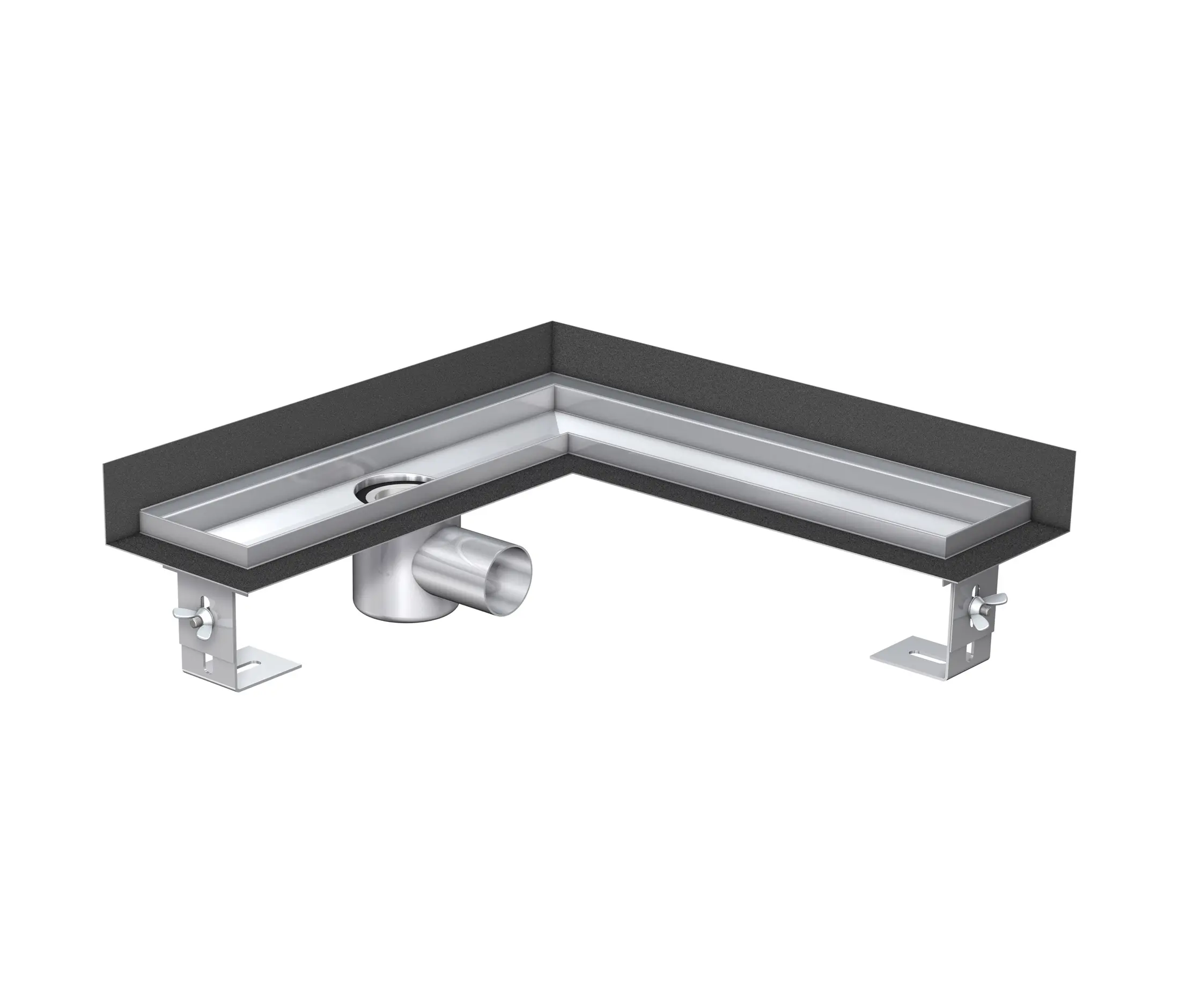

ACO ShowerDrain E-line angled TZ Rinne

• DN 50 drainage channel as an angled solution for the shower area

• Installation height: 105–160 mm

• Made of stainless steel, material grade 304

• Tested for load bearing ability and drainage properties in accordance with DIN EN 1253

• Drainage properties, standard version: 0.4 l/s

• Channel width: 84 mm

• Side length: 400 mm

• DN 50 drain fits all push-fit pipe socket systems

• Channel body with side gradient

• Detachable 2-piece odour seal

• Socket slope: 1.5°

• Electropolished surface

• Surrounding moulded thin bed flange with wall flange on both sides

• Optionally also available with red, blue, green or rainbow lighting
