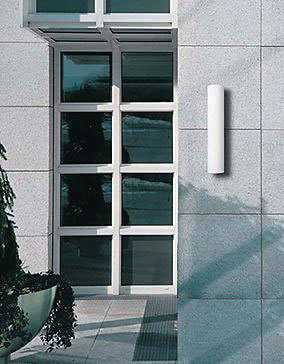

Wall / ceiling luminaires 3185/3186/... by BEGA

Wall / ceiling luminaires

Protection class IP 44
Die cast aluminium and stainless steel
Three-ply opal glass
Colour: graphite

• incandescent lamps A 60 40 · 60 · 75 W
• fluorescent lamps TC-D 13 · 18 W
• fluorescent lamps TC-L 24 · 36 W

Incandescent lamps
3185: Light brick 1 A 60, 40 W, Lumen 420; A=200, B=100, C=100 mm
3186: Light brick 2 A 60, 40 W, Lumen 840; A=300, B=100, C=100 mm
3187: Light brick 2 A 60, 60 W, Lumen 1420; A=400, B=100, C=100 mm
3188: Light brick 2 A 60, 75 W, Lumen 1880; A=500, B=100, C=100 mm

Fluorescent lamps
3182: Light brick 1 TC-D, 13 W, Lumen 900; A=200, B=100, C=100 mm
3183: Light brick 1 TC-D, 18 W, Lumen 1200; A=300, B=100, C=100 mm
3190: Light brick 1 TC-L, 24 W, Lumen 1800; A=400, B=100, C=100 mm
3191: Light brick 1 TC-L, 36 W, Lumen 2900; A=500, B=100, C=100 mm
