Varibeam/J6 by Kalmar

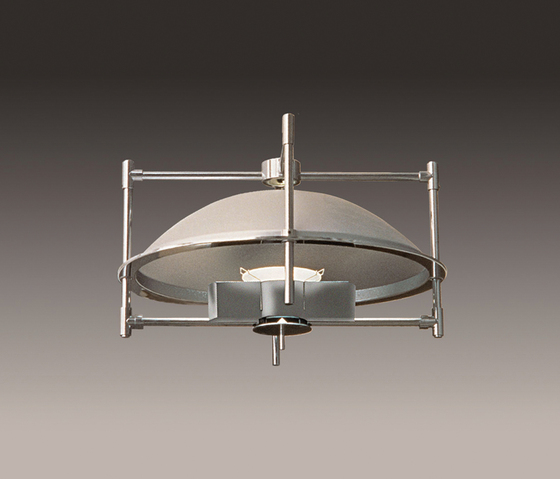

VARIBEAM

VARIBEAM 5/10 and 20/30 VARIBEAM luminaires provide the lighting designer with a wide range of design options in terms of light distribution, choice of illuminant, method of installation and maintenance. Their high light output makes this downlight particularly suited as an auxiliary light source in naturally lit areas. Due to the use of 250 W metal halide lamps in combination with special reflectors there is no noticeable deterioration of lighting quality between naturally and artificially lit areas. The narrow half-beam angle of 5° ensures glare-free, unobtrusive illumination in rooms with high ceilings, even over long distances. The 5/10 downlight can be adjusted to provide beam angles from 2 x 5° to 2 x 10°, and the 20/30 downlight permits adjustment from 2 x 20° to 2 x 30°.

MODEL: 0307
Finish: Chrome and black powder coated
Secondary reflector: 5/10° or 20/30°
Diameter 500, Height 270 mm
1x max 250W Metal Halide

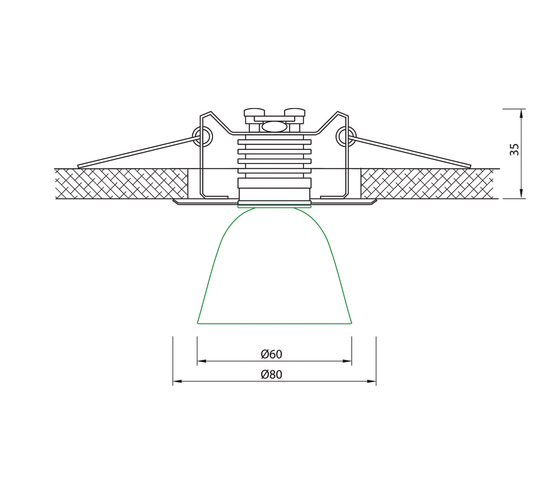

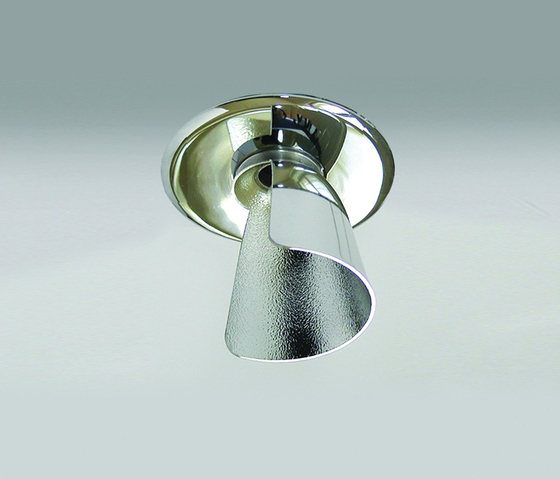

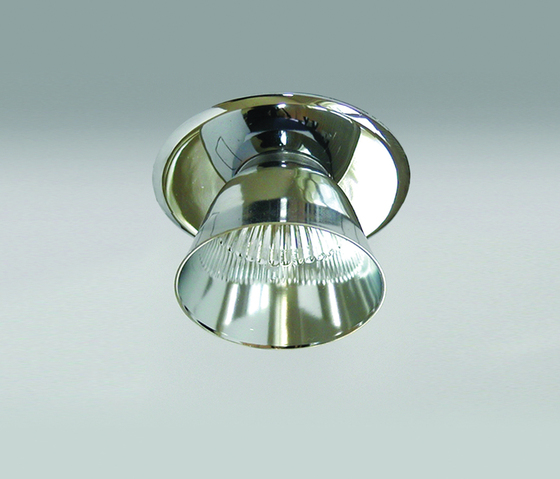

HALOGEN DOWNLIGHT J6-EB Flush-mounted, symmetrical

Luminous characteristics:
Rotary symmetrical light distribution without figurations
Glare-free above the nominal half-beam angle (20°, 30°, 40°) for stable perceptive conditions
High operational illumination efficiency thanks to optimisation with new light sources
Reflector range with 20°, 30° and 40°
Luminous colour 3,000 K (warm white)

Technical specifications:
Polished aluminium facetted main reflector with click-lock
Compact design
Perfect for environmentally sound modern light sources from 35-65W/ 12V IRC

MODEL: 0312
Finish: Polished Aluminium
Reflector: 20°, 30°, 40°, 40° asym.
Ceiling cut out 60mm, Height 35-107mm
1x 35-50W IRC Halogen 12V
Click-lock automatic reflector positioning
IRC lamp life up to 4000 hrs with 30% heat reduction or illumination increase
