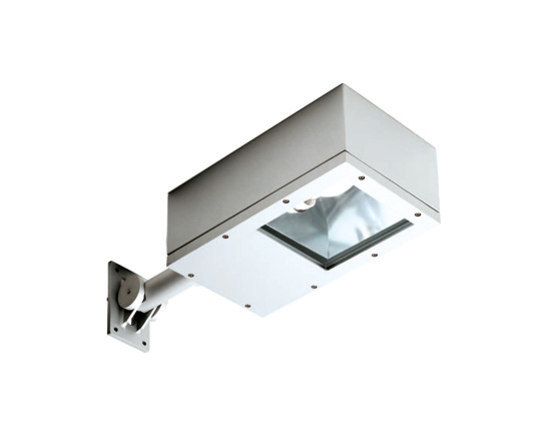

V Light of FontanaArte

Outdoor lamp.
Wall or pole mounted, for outdoor lighting.
Materials and finishing:
Aluminium body, polyester coated after sandblasting and phosphochromatising. Clear tempered protective glass. Stainless steel nuts and bolts. Silicone rubber gasket. Arm of oxidized aluminium, 15 microns, for exteriors.
Technical features:
The body, realised in Class II, contains the optics compartment complete with semi-glossy aluminium reflector and power supply unit for highpressure metal iodide or sodium vapour lamps with E27 or E40 fittings. In the wall version the appliance can be tilted with respect to the road surface by 10° or 30°, while in the pole version the tilt is 20°, 30° or 50°.
Suitability:
Lighting for historic centres and urban and extra-urban areas. The possibility of tilting the body makes the appliance especially well suited wherever an adequate degree of lighting is required..
Light source:
• 3424 MH or NaH hp 70W E27;
• 3424/1 MH or NaH hp 150W
E40.
Power supply:
230 V.
Components:
• 3642 wall mount plate for lamp;
• 3645/1 pole with 1 arm;
• 3645/2 pole with 2 arms.
