- 62 x 62 mm, 20 mm high
- With locking mechanism
- With black elastic buffer (stop)
- Visible lock tight screw connection
- Stainless steel (satin, mirror polished)
W: 62 mm
H: 20 mm
D: 62 mm
More
Floor-mounted doorstop
Year
2008
ID
100XA625
Architonic id 1098734
-
More
Toilet roll holder/Toilet brush unit
Year
2013
Architonic id 1197634
-
More
Soap dispenser/Tumbler/Soap dish
Year
2013
Architonic id 1197625
-
More
Support rail
Year
2013
Architonic id 1197631
-
More
Door fitting
Year
2013
Architonic id 1197632
-
- Round soap dish with flat bottom made of high-quality, satin-finished plate glass
- Holder optionally available chrome-plated or in white
- Soap dish: 36 mm high and 110 mm diameter
- Holder: 87 mm wide, 20 mm high and 107 mm deep
100.02.01105
H: 36 mm hoch
D: 110 mm
100.00.10040 (Holder, chrom)
100.00.10060 (Holder, weiß)
W: 87 mm
H: 20 mm
D: 107 mm
More
Soap dish
Year
2008
ID
100.02.01105
Architonic id 1098647
-
- For holding on to and independently standing up
- Combinable with the HEWI System 800 shelf
- 20 mm wide, 160 mm high and 106 mm deep
- Square metal profile
- Available in chrome and white
100.03.01040 (chrome)
100.03.01060 (white)
W: 20 mm
H. 160 mm
D: 106 mm
More
Support rail
Year
2008
ID
100.03.01040/60
Architonic id 1098654
-
- Shelf with all-round edge with square profile and high-quality, satin-finished glass top
- 600 mm wide, 20 mm high and 106 mm deep
- Square metal profile
- Available in chrome and white
W: 600 mm
H: 20 mm
D: 106 mm
More
Shelf
Year
2008
ID
100.03.10045/65
Architonic id 1098683
-
- Round tumbler with flat bottom
- Made of high-quality, satin-finished crystal glass
- Holder optionally available chrome-plated or in white
- Tumbler: 99 mm high and 79 mm diameter
- Holder: 87 mm wide, 20 mm high and 107 mm deep
100.04.02105
H: 99 mm
D: 79 mm
100.00.10040 (Holder, chrome)
100.00.10060 (Holder, white)
W: 87 mm
H: 20 mm
D: 107 mm
More
Tumbler with holder
Year
2008
ID
100.04.02105
Architonic id 1098686
-
- Made of high-quality, satin-finished crystal glass
- With metal pump
- Holder optionally available chrome-plated or in white
- Capacity approx. 250 ml
- Holder: 87 mm wide, 20 mm high and 107 mm deep
100.06.01045
250 ml
100.00.10040 (Holder, chrome)
100.00.10060 (Holder, white)
W: 87 mm
H: 20 mm
D: 107 mm
More
Soap dispenser
Year
2008
ID
100.06.01045
Architonic id 1098687
-
- Double chrome towel holder with parallel rails
- Rigid design
- Outer length 450 mm, 90 mm wide, 20 mm square section
- Square metal profile
- Available in chrome and white
L: 490 mm
W: 90 mm
Square metal profile 20 mm
100.09.10040 (chrome)
100.09.10060 (white)
More
Towel rail
Year
2008
ID
100.09.10040/60
Architonic id 1098689
-
- Consisting of toilet brush, glass brush holder and wall bracket
- With protective ring made of flexible polyethylene for a secure, defined position and to protect against damage to the glass brush holder
- 109 mm wide, 450 mm high and 129 mm deep
- Holder optionally available chrome-plated or in white
- Round glass brush holder made of high-quality, satin-finished crystal glass
- Brush with white handle and replaceable brush head made of black polyamide
100.20.10045 (chrome)
100.20.10065 (white)
More
Toilet brush unit
Year
2008
ID
100.20.10045/65
Architonic id 1098691
-
- U-shaped, open-ended on the right, toilet roll holder made of a square profile
- Used to hold one toilet roll
- Hinged
- 162 mm wide and 110 mm high, square 21 mm
- Made of metal
- Available in chrome and white
W: 162 mm
H: 110 mm
100.21.10040 (chrome)
100.21.10060 (white)
More
Toilet roll holder, hinged
Year
2008
ID
100.21.10040/60
Architonic id 1098693
-
- Used to hold one toilet roll
- 122 mm deep, square 20 mm
- Made of metal
- Available in chrome and white
d: 20 mm,
D: 122 mm
100.21.20040 (chrome)
100.21.20060 (white)
More
Spare roll holder
Year
2008
ID
100.21.20040/60
Architonic id 1098695
-
- Towel rail made of a square profile
- 600 mm wide
- Made of metal
- Available in chrome and white
W: 600 mm
More
Bath towel shelf
Year
2008
ID
100.30.10040
Architonic id 1098696
-
- Towel rail made of a square profile
- Centre-to-centre 600 mm or 900 mm, 79 mm deep
- Square cross-section 25 mm
- Made of metal
- Available in chrome and white
AM: 600 mm
D: 79 mm
100.30.20040 (chrome)
100.30.20060 (white)
More
Towel rail
Year
2008
ID
100.30.20040/60
Architonic id 1098697
-
- Support rail made of a square profile with harmonious radii
- Ends bent at right-angles to the rail
- Used to hold onto and for support
- Centre-to-centre 300 mm, 600 mm or 900 mm, 79 mm deep
- Square cross-section 25 mm
- Made of metal
- Available in chrome and white
d: 25 mm
AM: 300 mm
Vierkant 25 mm
100.36.10040 (chrome)
100.36.10060 (white)
More
Support rail
Year
2008
ID
100.36.10040/60
Architonic id 1098698
-

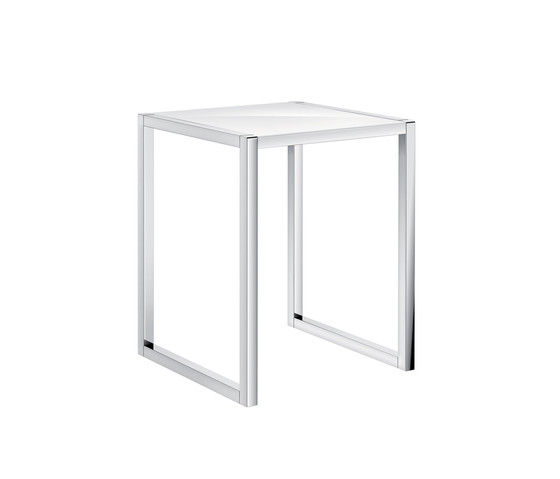

- Not suitable for use in wet areas
- Seat made of white MDF
- Frame made of high-quality chrome-plated metal
- Maximum load 150 kg
- 380 mm wide, 450 mm high and 380 mm deep
W: 380 mm
H: 450 mm
D: 380 mm
More
Stool
Year
2008
ID
100.51.30041
Architonic id 1098700
-
- For hanging up pieces of clothing, laundry and other utensils
- 50 mm or 80 mm deep, 16 mm square cross-section
- Made of metal
- Available in chrome and white
D: 50 mm
square cross-section 16 mm
100.90.01040 (chrome)
100.90.01060 (white)
More
Hook
Year
2008
ID
100.90.01040/60
Architonic id 1098701
-
- Contenance de 25 litres env.
- Porte-sachet intégré, invisible
- 300 mm de large, 510 mm de haut et 170 mm de profondeur
- Socle mural de 15 mm de profondeur
- En acier inox de qualité, surface blanche
- Ouverture en polyamide chromé de qualité supérieure
l : 300 mm
H : 510 mm
P : 170 mm
Socle mural de 15 mm de profondeur
25 litres
More
Wastepaper bin
Year
2008
ID
950.05.100
Architonic id 1098704
-
- Used to hold hygiene waste
- Capacity approx. 6 litres
- Invisible, integrated bag holder
- Cover with lifting tab
- 160 mm wide, 300 mm high and 140 mm deep
- Container and cover made of high-quality white coated stainless steel
- Opening made of high-quality chrome-plated plastic
W: 160 mm
H: 300 mm
D: 140 mm
6 Liter
More
Hygiene waste bin
Year
2008
ID
950.05.200
Architonic id 1098706
-
- Used to hold hygiene waste
- With integrated holder for hygiene bag box
- Capacity approx. 6 litres
- Invisible, integrated bag holder
- Cover with lifting tab
- 160 mm wide, 300 mm high and 140 mm deep
- Container and cover made of high-quality white coated stainless steel
- Opening made of high-quality chrome-plated plastic
W: 160 mm
H: 300 mm
D: 140 mm
6 Liter
More
Hygiene combination with bag dispenser
Year
2008
ID
950.05.210
Architonic id 1098707
-
- Used to hold standard liquid soap
- With internal container for free filling, capacity 600 ml
- Internal container can be removed for cleaning
- Side level indicator
- Protection against misuse by a locking system
- 95 mm wide, 275 mm high and 95 mm deep, wall base 10 mm deep
- Made of high-quality white coated stainless steel
- Lever and functional end made of high-quality chrome-plated plastic
W: 95 mm
H: 275 mm
D: 95 mm tief
Wandsockel 10 mm tief
600 ml
More
Soap dispenser
Year
2008
ID
950.06.100
Architonic id 1098710
-
- Capacity approx. 300 - 450 paper towels
- Side level indicator
- Protection against misuse by a locking system
- 300 mm wide, 360 mm high and 120 mm deep
- Wall base 15 mm deep
- Made of high-quality white coated stainless steel
- Opening made of high-quality chrome-plated plastic
W: 300 mm
H: 360 mm
D: 120 mm
More
Paper towel dispenser
Year
2008
ID
950.06.500
Architonic id 1098711
-
- Used to hold and for removal of standard hygiene bags made of plastic
- With reservoir for one replacement pack of hygiene bags
- 150 mm wide, 92 mm high and 37 mm deep
- Made of high-quality white coated stainless steel
W: 150 mm
H: 92 mm
D: 37 mm
More
Hygiene bag dispenser
Year
2008
ID
950.06.700
Architonic id 1098713
-
- Used to hold a standard large toilet roll with diameter 250 – 320 mm
- Integrated roll brake
- Level indicator
- Protection against misuse by a locking system
- 365 mm wide, 365 mm high and 125 mm deep, wall base 15 mm deep
- Made of high-quality white coated stainless steel
- Opening and tear-off edge made of high-quality chrome-plated plastic
W: 365 mm
H: 365 mm
D: 125 mm
wall base 15 mm deep
More
Large toilet roll holder
Year
2008
ID
950.21.600
Architonic id 1098714
-
- Used as waste bin for used paper towels
- Capacity approx. 25 litres
- Invisible, integrated bag holder
- Cover with lifting tab
- 300 mm wide, 510 mm high and 170 mm deep, wall base 15 mm deep
- Container and cover made of high-quality white coated stainless steel
- Opening made of high-quality chrome-plated plastic
W: 300 mm
H: 510 mm
D: 170 mm
wall base 15 mm deep
25 Liter
More
Wastepaper bin with cover
Year
2008
ID
950.05.110
Architonic id 1098715
-
Technical details
- Door lever fitting made of square tube 20 x 20 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4 for 8, 8.5 and 9 mm square spindles and class 2 for 7 mm square spindles
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door
Function
- Bearing as maintenance-free sliding bearing
- Spring-assisted according to type A
- Door can be locked from the inside and outside with one key. The unlocked door can be opened from both sides using the lever handle.
Material
- Stainless steel (satin, mirror polished)
Square tube:
20 x 20 mm
More
Standard door fitting design 101X
Year
2008
ID
100XAH01.1A0
Architonic id 1098716
-
Technical details
- Door lever fitting made of square tube 20 x 20 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4 for 8, 8.5 and 9 mm square spindles and class 2 for 7 mm square spindles
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door
Function
- Bearing as maintenance-free sliding bearing
- Spring-assisted according to type A
- Door can be locked from the inside and outside with one key. The unlocked door can be opened from both sides using the lever handle.
Material
- Stainless steel (satin, mirror polished)
Square tube:
20 x 20 mm
More
Standard door fitting design 103X
Year
2008
ID
100XAH01.3A0
Architonic id 1098721
-
Technical details
- Door lever fitting made of square tube 20 x 20 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4 for 8, 8.5 and 9 mm square spindles and class 2 for 7 mm square spindles
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door
Function
- Bearing as maintenance-free sliding bearing
- Spring-assisted according to type A
- Door can be locked from the inside and outside with one key. The non-locked door can be opened from the inside using the lever handle, but from the outside can only be opened with the key. Apartment door fittings can only be used in conjunction with an entrance set lock
Material
- Stainless steel (satin, mirror polished)
Knopfteil:
55 x 55 mm
More
Apartment door fitting design 101X
Year
2008
ID
100XAH03.1A5
Architonic id 1098724
-
Technical details
- Door lever fitting made of square tube 20 x 20 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4 for 8, 8.5 and 9 mm square spindles and class 2 for 7 mm square spindles
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door
Function
- Bearing as maintenance-free sliding bearing
- Spring-assisted according to type A
- Door can be locked from the inside and outside with one key. The unlocked door can be opened from both sides using the lever handle
Material
- Stainless steel (satin, mirror polished)
Square tube:
20 x 20 mm
More
Standard door fitting design 104X
Year
2008
ID
100XAH01.4B0
Architonic id 1098725
-
Technical details
- Mounted on a square rose
- With support cams, diameter 10 mm
- Concealed lock tight screw connection
- Screw hole spacing 43 mm
- With 7 mm square spindle, 30 mm long (longer spindle lengths also available on request)
Function
- With 90° locking points
Material
- Stainless steel (satin, mirror polished)
Square tube:
20 x 20 mm
More
Window handle
Year
2008
ID
100XAFG.1B
Architonic id 1098728
-
- Made of square tube 30 x 30 mm, 15 respectively 65 mm long
- With black elastic buffer (stop)
- Anti-theft protection due to concealed lock tight screw connection
- Stainless steel (satin, mirror polished)
100XA611.15
W: 30 mm
H: 30 mm
L: 15 mm
100XA611.65
L: 65 mm
More
Wall door stop
Year
2008
ID
100XA611.15/65
Architonic id 1098730
-
Technology:
- Certified and approved to EN 1125 with tested locks, for panic doors in escape and evacuation routes
- Approved for fire doors and smoke control doors according to listing in the regulatory test certificate of the respective door manufacturer
- For single leaf or double doorsets in escape and evacuation routes (inactive or inactive and active leaf)
- Handle made from tubular stainless steel Ø 25 mm, for fixing spacing 761 to 860 mm
- Stainless steel tubes connected by means of square spindle - telescopic
Material:
- Satin finish stainless steel
- Tubular handle made from polyamide Ø 30 mm (pure white, anthracite grey, deep black and meadow green)
D: 25 mm
More
Panic bar to DIN EN 1125
Year
2007
ID
PS160XA11.01
Architonic id 1098739
-
- Dimensions: 35 x 35 mm
- End piece and direction-changing bends made of stainless steel
- Handrail optionally made of beech or wenge stained beech
- Handrail ends with 90° end corners prepared for concealed wall fixing
- Optionally with 90° angle supports or straight supports
W: 35 mm
H: 35 mm
More
Handrail
Year
2008
ID
LI.100.8800.W100
Architonic id 1098741
-
Technical details:
- Door signage optionally made of stainless steel, aluminium or polyamide with printed on information symbols
- Otl Aicher system information symbols
Function:
- Display of Man | Woman symbol
- Other motifs available
- For screwed or glued mounting
W: 150 mm
H: 150 mm
More
Signage
Year
2007
ID
GL0901XA040K
Architonic id 1098746
-
Technical details:
- Symbol signage optionally made of stainless steel, aluminium or polyamide with printed on information symbols
- Otl Aicher system information symbols
Function:
- Display of information: Push
- Other motifs available
- For screwed or glued mounting
W: 55 mm
H: 55 mm
More
Symbol
Year
2007
ID
GL0501XA150K
Architonic id 1098747
-
Technical details:
- Symbol signage optionally made of stainless steel, aluminium or polyamide with printed on information symbols
- Otl Aicher system information symbols
Function:
- Display of information: Women's WC
- Other motifs available
- For screwed or glued mounting
W: 80 mm
H: 80 mm
More
Symbol
Year
2007
ID
GL0601XA020K
Architonic id 1098748
-
100 lever handle stainless steel satin
More
Standard door fitting
Architonic id 1139193
-
100 lever handle stainless steel mirror polished
More
Standard door fitting
Architonic id 1139194
Share
Tweet
Stumble
