Designer
Jean-Marc da Costa
Year
2006-2009
Architonic id
1074585

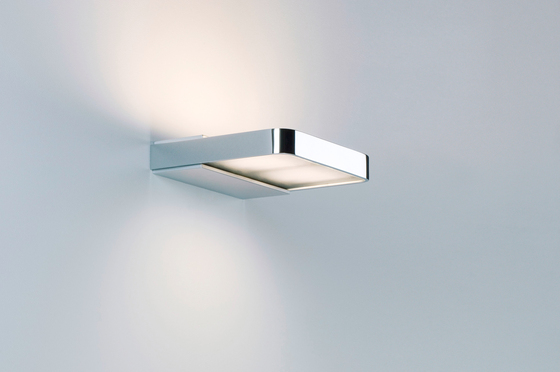

Slice Wall boasts high output but minimum energy consumption. Like its sister, the floor luminaire Slice, it meets the requirement for optimum lighting for modern workspaces as well as their appealing design. Slice Wall will be fully available s of late summer 2009. At first glance its powerful potential can only be surmised, because as opposed to traditional examples of this type of luminiare Slice Wall is extremely flat and slender. Fitted with the latest generation of compact fluorescent bulbs and operating devices it is highly efficient in terms of energy consumption. Prism glass, metal-vaporized from the inside, increases the light output and also ensures absolutely glare-free light. The reflector and anti-glare technology is highly effective and was developed specially for the Slice family of luminaires. The metal vaporizing process controls the balance between indirect and direct light. On request the angle of transmission and reflection can be adjusted to suit individual objects. The luminaire can also be switched on and off by means of an optional external motion sensor. Slice Wall combines low energy consumption with high-level efficiency, as well as elegant and straightforward design with sophisticated lighting technology. It is suitable for modern workspaces, meeting rooms, kitchenettes, corridors, and stairwells. In combination with the floor luminiare there are no limits to its possible uses.

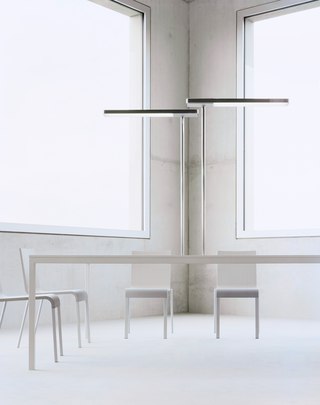

The Slice standard luminaire blends perfect working light with an elegant design. In contrast to traditional workplace standard luminaires its head is extremely flat and slender, thus providing absolutely dazzle-free light and high light output. Slice has specially designed new reflector and anti-glare technology to thank for this. The head can be swiveled horizontally through 180 degrees. The U-shaped base houses all the operating devices and, given its shape, can easily be moved around table legs. If required the standard luminaire also comes equipped with ambient light control and a motion detector. Furthermore Slice can easily be integrated into modern light management systems that use a Dali interface. Slice adds a touch of elegance to working environments and also looks extremely good in living quarters.
Light
Upward shining freely, reflecting indirectly via ceiling and wall,
downward targeted by means of prism textured glass (light transmission approx. 15%),
shielded on the side
Other features
control by means of external motion sensor possible, prism textured glass with modified light transmission level (+/- 10%) possible
More
-
Material: Aluminum bright chrome plated, on request powder-coated in all RAL color hues, prism textured glass
Bulbs: 2x compact fluorescent lamps à 18W / 2G10
Control
Via external presence sensor possible
T 19,5 cm
B 23 cm
H 4 cm
More
Slice Wall
Year
2011
Architonic id 1074585
-
Material: aluminium or steel, bright chrome-plated, and prism textured glass covers, all RAL colours on request
Bulbs: 2 compact fluorescent lamps TC-L 80 W/2G11
On / off and dimming via switch on luminaire head. In the "Slice Sensoric" model presence and ambient-light related regulation via a sensor integrated in the luminaire head possible.
L 44 cm (base, height base=4 cm)
W 35 cm
L 75 cm (housing, height housing=4 cm)
B 13 cm
H 185 cm
More
Slice Floor
Year
2006
Architonic id 1038257
-
In addition to the already available desk mounting version -Slice Furniture- now there is also a table-mounted version located in the program -Slice Table Clamp-. Both versions boast the same excellent features as the Slice upright luminaire, thus opening up even more areas of use and design options for energy-conscious workplaces.
More
Slice Furniture / Slice Table Clamp
Year
2009
Architonic id 1091682
-
Slice with Adapter for USM Haller Tables
To make our work luminaire Job even more flexible in terms of use we have designed an elegant adapter for easy fitting to USM Haller tables.
More
Slice with Adapter
Year
2010
Architonic id 1092225
