Side-in-Line explores the same lightingconcept of the Side but with the ultimate reduction of language elements.

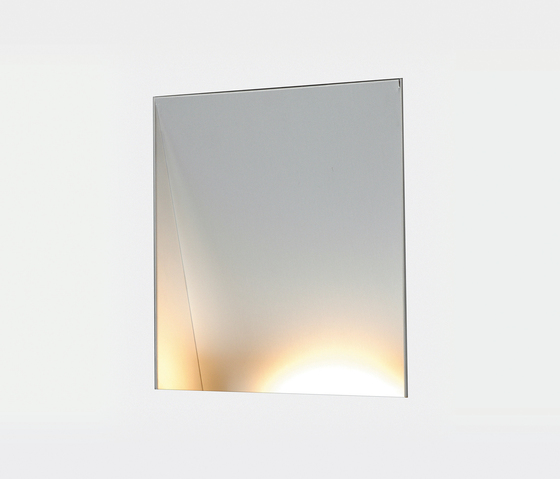

Side in-Line revisits the concept of Side, but eliminates any visible frames. This results in design only driven by its function, generating and controlling light by means of asymmetric reflectors, that in turn guarantee a maximum output with minimum glare. Pure and simple lines enhance architecture through harmonious interaction with space and walls. The light sources available to Side in-Line enable this product to be applied as a wallwasher to floors or ceilings. A remarkable feature of this range is the plasterkit: once installed, it can be equipped with different subframes for each lamp type.
Side in-Line and Square Side in-Line are recessed fixtures for walls or ceilings. They can be installed in brickwork or cavity walls and require only 120mm depth. This range of washlights is developed for halogen, compact fluorescent and metal vapour lamps. Control gears, transformers or electronic components are mounted inside the housing. Reflector is included.
More
-
lamptype: QT9-ax; LED
visible LxW: 205x60
cut out LxW: 220x91
fitting: G4
max. watt: 20W; 1,2W
voltage: 12V; 230V/12V; 350mA; 230V/350mA
IP/class: 40/1
More
Mini Side-in-Line
Architonic id 1044160
-
lamptype: TC-DEL; TC-TEL emergency; QT-DE12; HIT-DE
visible LxW: 308x308
cut out LxW: 320x339
fitting: GX24q-3/4; R7s(114,2mm); RX7s-24
max. watt: 26W/32W/42W; 26W/32W ; 200W; 150W
voltage: 230V; 230V/5kV
IP/class: 40/1
More

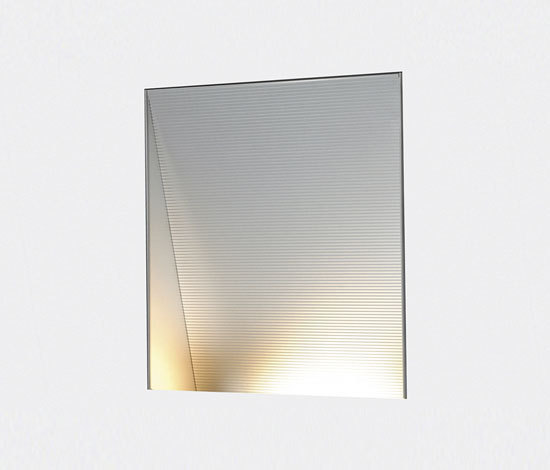

Square Side-in-Line
Architonic id 1044157
-
lamptype: TC-DEL; TC-TEL emergency; QT-32; QT-DE12; HIT-DE
visible LxW: 308x229
cut out LxW: 320x260
fitting: GX24q-3/4; E27; R7s(114,2mm); RX7s
max. watt: 26W/32W/42W; 26W/32W; 150W; 200W; 70W ; 150W
voltage: 230V; 230V/5kV
IP/class: 40/1
More

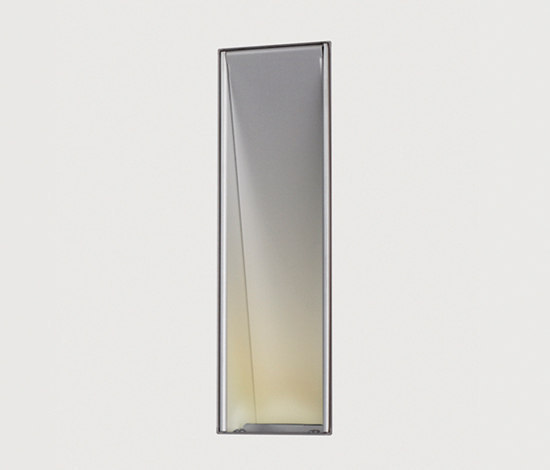

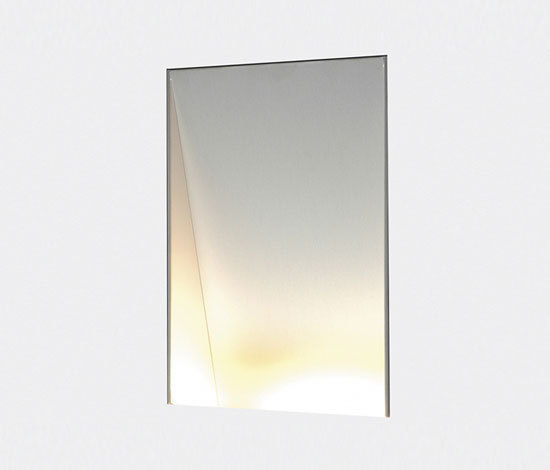

Side-in-Line
Architonic id 1044156
-
lamptype: TC-DEL ; QT-DE12; LED
visible LxW: 205x155
cut out LxW: 220x186
fitting: G24q-1; R7s(74,9mm)
max. watt: 13W; 100W; 2x7,2W
voltage: 230V; 230V/350mA
IP/class: 40/1
More

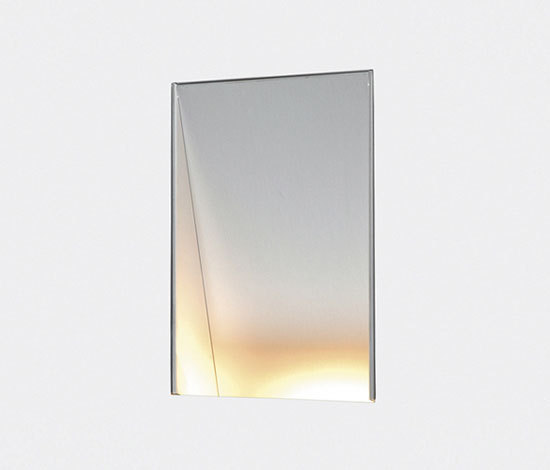

Small Side-in-Line
Architonic id 1044158
-
lamptype: TC-DEL ; QT-DE12; LED
visible LxW: 205x205
cut out LxW: 220x236
fitting: G24q-2; R7s(114,2mm)
max. watt: 18W; 100W; 4x7,2W
voltage: 230V; 230V/350mA
IP/class: 40/1
More

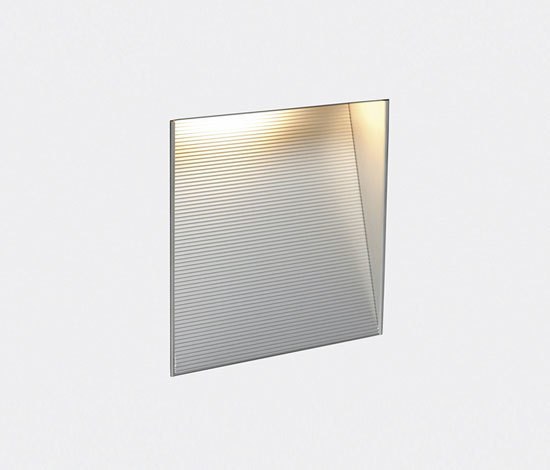

Small Square Side-in-Line
Architonic id 1044159
