Rodes by Santa & Cole

Designer J. A. Martínez Lapeña, Elías Torres
Year 1989
Architonic id 1021575

Request catalogue PDF catalogues Offer Price request Contact Distribution partners Website CAD Request

Send page Print page Save page QR-Code

Share

Tweet

Stumble

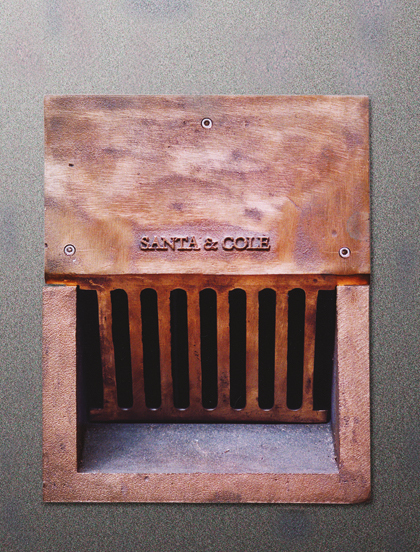

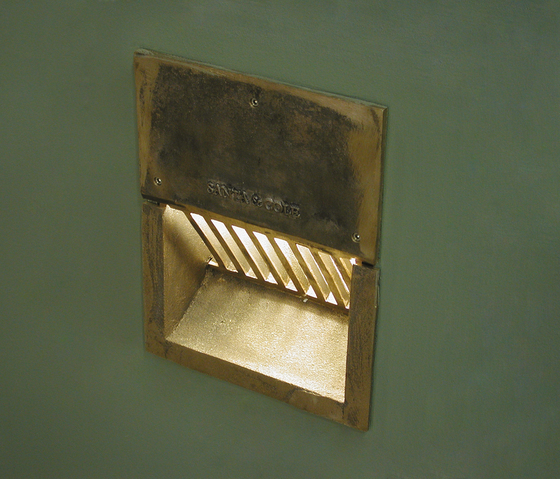

Robust and timeless lighting element, made from aluminium.
With simple forms, it protects and projects the light through an inclined lattice.

Materials and finishes

· Cover
Element manufactured in cast aluminium with finish in forged black paint.
The cover acts as a grid which closes the vault with a stainless steel screw. Two pins screw into its sides, being inserted through the sides of the vault in the initial assembly process, and acting as an axis of rotation on opening the cover.
· Vault
Element manufactured in cast bronze with mould finish or cast aluminium with finish in forged black paint (depending on the reference). Incorporates two side holes with Ø37mm for cable inlet and outlet.

Luminaire
Composed of a main body and an opal diffuser manufactured in thermoplastic highly resistant to severe climatic conditions and to a saline environments, sealing gasket and interior reflector. Incorporates cable gland type Pg 13.5 for power cord inlet. It is opened with two stainless steel screws.

Installation
Supplied assembled in a single piece.
It is built into the wall or with support and fixed with fast-drying cement or similar.
Assembly instructions are enclosed with the wall-mounted luminaire.

Maintenance
Usual spare parts and maintenance for the units.

Weights
5Kg.
