HEWI collections HEWI families HEWI products

Range 180 by HEWI

Year 2007
Architonic id 1097810

Request catalogue PDF catalogues Offer Price request Contact Distribution partners Website CAD Request

Send page Print page Save page QR-Code

Share on Facebook

Tweet on Twitter

Submit on StumbleUpon

Stumble

Technology
- H-technology lever handle fittings made of stainless steel
- Designed for contract application according to DIN 18255 and DIN EN 1906 user category class 4
- Fast installation due to easy latching in of the lever handle into the base parts pre-installed on the door

Function
- Door can be locked from the inside and outside using a key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
- Aluminium (natural EV1 and black)
More

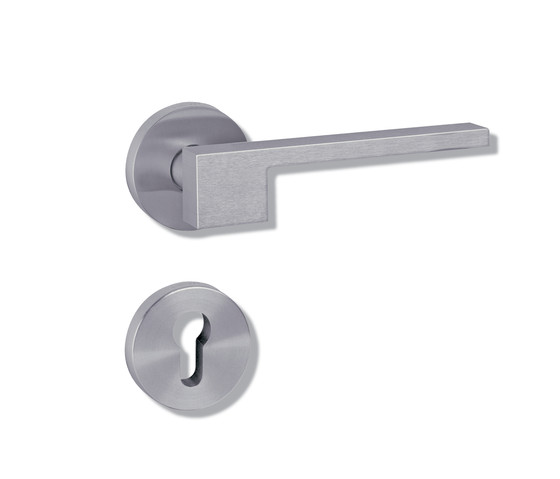

Standard door fittings design 181X
Year 2007
ID 180XAH01.130

Architonic id 1097810
Technology
- H-technology lever handle fittings made of flat-rolled steel L = 155 mm, H = 30 mm and D = 10 mm
- The free end of the door lever handle points to the door leaf surface in accordance with DIN EN 179
- Designed for contract application according to DIN 18255 and DIN EN 1906 user category class 4
- Fast installation due to easy latching in of the lever handle into the base parts pre-installed on the door
- Tested to DIN 18273 FS and labelled with the Ü mark

Function
- Door can be locked from the inside and outside using a key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
More

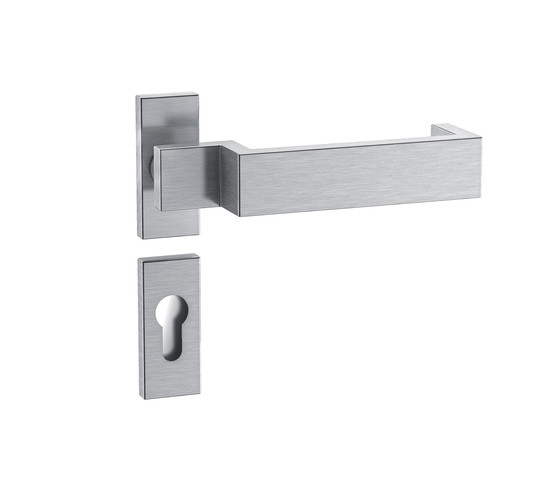

Standard door fittings for framed doors design 187X
Year 2007
ID 180XAH01.7B0

Architonic id 1097821
Technology
- H-technology lever handle fittings made of flat-rolled steel L = 130 mm, H = 30 mm and D = 12 mm
- Designed for contract application according to DIN 18255 and DIN EN 1906 user category class 4
- Fast installation due to easy latching in of the lever handle into the base parts pre-installed on the door

Function
- Door can be locked from the inside and outside using a key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
More

Standard door fittings design 185X
Year 2007
ID 180XAH01.5A0

Architonic id 1097811
Technology
- B-technology lever handle fittings made of flat-rolled steel L = 130 mm, H = 30 mm and D = 12 mm
- Designed for contract application according to DIN 18255 and DIN EN 1906 user category class 3
- Fast installation due to easy latching in of the lever handle into the base parts pre-installed on the door

Function
- Door can be locked from the inside and outside using a key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
- Inlay (glass white)
More

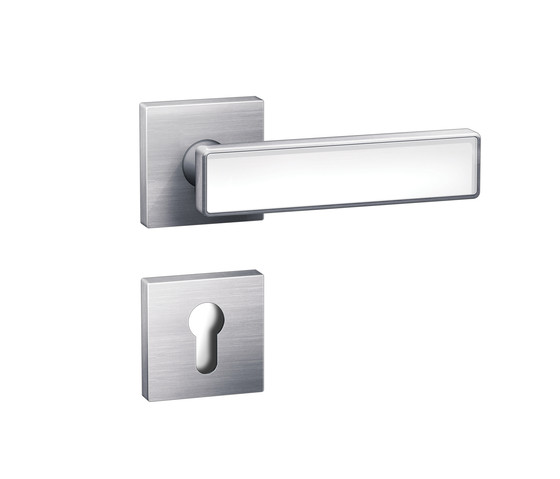

Standard door fittings design 185XI glass inlay
Year 2007
ID 180XIB01.5A0

Architonic id 1097814
Technology
- B-technology lever handle fittings made of flat-rolled steel L = 130 mm, H = 30 mm and D = 12 mm
- Designed for contract application according to DIN 18255 and DIN EN 1906 user category class 3
- Fast installation due to easy latching in of the lever handle into the base parts pre-installed on the door

Function
- Door can be locked from the inside and outside using a key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
- Inlay (slate)
More

Standard door fittings design 185XI slate inlay
Year 2007
ID 180XIB01.5A0

Architonic id 1097817
Technology
- H-technology lever handle fittings made of flat-rolled steel L = 135 mm, H = 30 mm and D = 10 mm
- The free end of the door lever handle points to the door leaf surface in accordance with DIN EN 179
- Designed for contract application according to DIN 18255 and DIN EN 1906 user category class 4
- Fast installation due to easy latching in of the lever handle into the base parts pre-installed on the door
- Tested to DIN 18273 FS and labelled with the Ü mark

Function
- Door can be locked from the inside and outside using a key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
More

Standard door fittings design 186X
Year 2007
ID 180XAH01.6A0

Architonic id 1097819
Technology
- Mounted on a square rose 72 x 33 mm
- With support cam diameter 10 mm
- Concealed screw connection
- Screw hole spacing 43 mm
- With 7 mm square spindle 30 mm long

Function
- With 90° locking points

Material
- Stainless steel (satin, mirror polished)
More

Standard Window lever handle Range 180
Year 2007
ID 180XAFG.5B

Architonic id 1097823
