Range 170 by HEWI

Range 170
Manufacturer HEWI
Year 2001
Architonic id 1097790

Request catalogue PDF catalogues Offer Price request Contact Distribution partners Website CAD Request

Send page Print page Save page QR-Code

Share on Facebook

Tweet on Twitter

Submit on StumbleUpon

Stumble

Technical details
- Door lever fitting Ø 23 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door

Function
- Door can be locked from the inside and outside with one key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
More

Standard door fittings design 171X
Year 2001
ID 170XAH01.130

Architonic id 1097790
Technical details
- Door lever fitting Ø 23 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door

Function
- Door can be locked using a key, from the inside and outside. The unlocked door can be opened from the inside using the lever handle, but from the outside it can only be opened using a key. Apartment door fittings can only be used in conjunction with a single cylinder deadlock

Material
- Stainless steel (satin, mirror polished)
More

Apartment door fitting design 171X
Year 2001
ID 170XAH03.139

Architonic id 1097793
Technical details
- Door lever fitting Ø 23 mm with H-technology
- Designed for projects according to DIN 18255 and EN 1906 user category class 4
- Fast installation due to simple locking-in of the lever handle into the bases pre-mounted onto the door
- Tested to DIN 18273 FS and labelled with the Ü mark

Function
- Door can be locked from the inside and outside with one key. The unlocked door can be opened from both sides using the lever handle.

Material
- Stainless steel (satin, mirror polished)
More

Standard door fittings for framed doors design 172X
Year 2001
ID 170XAH11.240

Architonic id 1097791

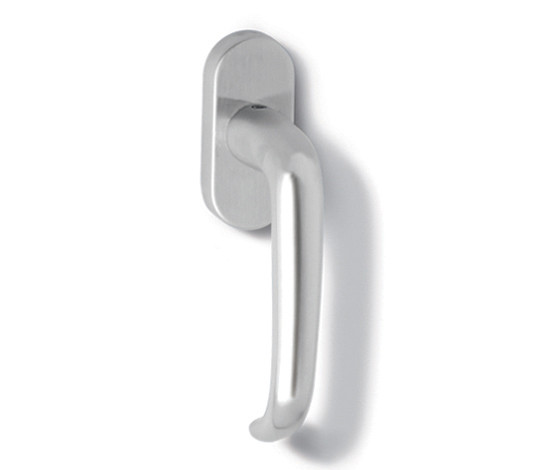

Technical details
- Mounted on oval rose 71 x 33 mm
- With support cams ø 10 mm,
- Concealed screw mounting
- Fixing points 43 mm centre to centre
- With 7 mm square spindle, 30 mm long

Function
- Lever held by spring clip at 90°

Material
- Stainless steel (satin, mirror polished)
More

Window lever handle 170XAFG.1
Year 2001
ID 170XAFG.1

Architonic id 1097795
