Propeller by serien.lighting

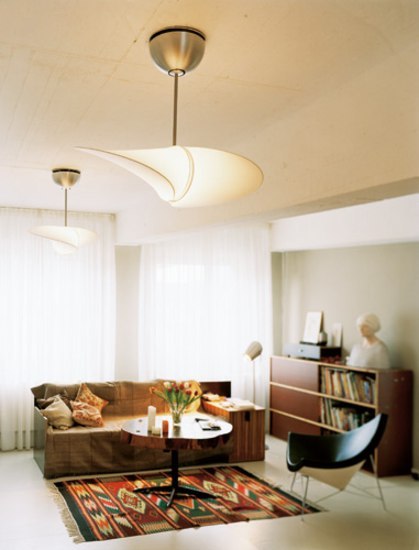

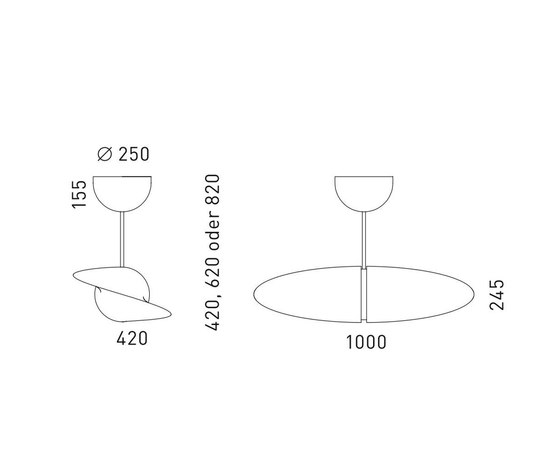

This marvelously delicate design fulfills all the criteria a fan needs to, while also giving that special touch to any room. It derives its ethereal form from the manner of its construction: Fabric is quite simply placed over a thin spring wire. In this way room for a bulb is created in the corpus. In line with its delicate frame the light is very soft and gentle. As a fan the design functions extremely well in dispelling air. The number of revolutions and the light are regulated by radio remote control. Propeller is available in three hanging lengths: 42, 62 or 82cm

Material
Propeller & Propeller XL: satin-finish aluminum
Wings Propeller: spring steel wire and fabric cover (80% Polyamid, 20% Elastan)
Wings Propeller XL: carbon fiber and fabric cover (80% polyamide, 20% elastane)

Bulbs
Propeller: 1x high-volt halogen bulb "Halogen CLASSIC A ECO" 105W / E27. Alternatively: compact fluorescent bulb "Govena DIMM" 20W / E27 or as LED retrofit "Philips MASTER LED bulb D 12-60W E27 2700K A6".
Propeller XL: Bulb not supplied. Depending on intended use the following options are suitable: 1. Not dimmable: 8x compact fluorescent bulb 23W / E27 ; 2. Dimmable in four phases (using conventional light switches): 8x compact fluorescent bulbs 23W / E27 ; 3. Infinitely variable dimming (via an external leading edge dimmer ): 8x compact fluorescent bulbs 18W / E27

Light
Diffused through fabric cover

Regulation
Propeller: The radio remote contol regulates the light and the motor. Functions of the radio remote control: Light on/off ; display degree of light dimming ; display/alternate from forwards to backwards; ventilator on/off; display / change the 6 speed phases (1st phase 26 RPM, 2nd phase 48 RPM, 3rd phase 70 RPM, 4th phase 96 RPM, 5th phase 120 RPM, 6th phase 140 RPM) ; Battery charging status. rear:
altering the radio channel via DIP-switch (12 variations possible, Setting must be identidical with those on the respective propeller motor !) Propeller has a memory function to store the last dimming level and speed. Propeller XL: The remote radio control only regulates the motor. Light regulation is external and depends on the bulbs used

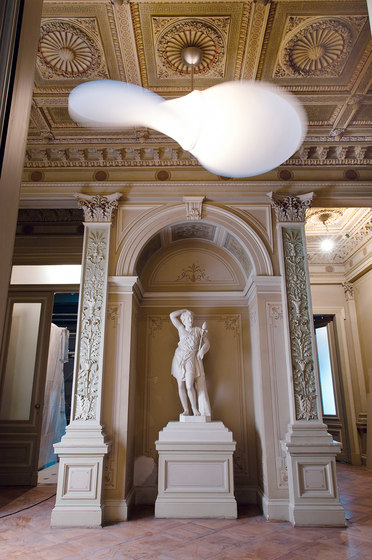

The larger a flying object is, the more gently it moves. This has to do with gravitation and inertia and applies to air travel just as much to our fan and giant luminaire, the Propeller XL. When its grand corpus, with a span of two meters, begins to revolve, shining softly and splendidly cooling the room, sultry summer summers could go on for ever. It is the innovative construction that gives this fan its wonderfully ethereal design: Fabric is simply placed over a delicate carbon fiber frame. The space created provides room for the bulb and the motor. In line with its gentle design the light is extremely soft and gentle.

Able to rotate clockwise or anti-clockwise, Propeller XL is extremely efficient in circulating air the entire year. Its speed can be regulated in six stages by means of the radio remote control supplied. On request it can be fitted with special bulbs that allow infinite dimming or in four phases using a conventional switch. The blades are easily removable for replacing the bulb and washing the stretch fabric. PropellerXL is available in three hanging lengths: 70, 100 or 82cm


Design Zentrum Nordrhein-Westfalen - reddot design award 2008
Designpreis der Bundesrepublik Deutschland - Nominierung 2009
