POLEO by Attika Feuer

Year 2009
Architonic id 1135913

Request catalogue PDF catalogues Offer Price request Contact Distribution partners Website CAD Request

Send page Print page Save page QR-Code

Share

Tweet

Stumble

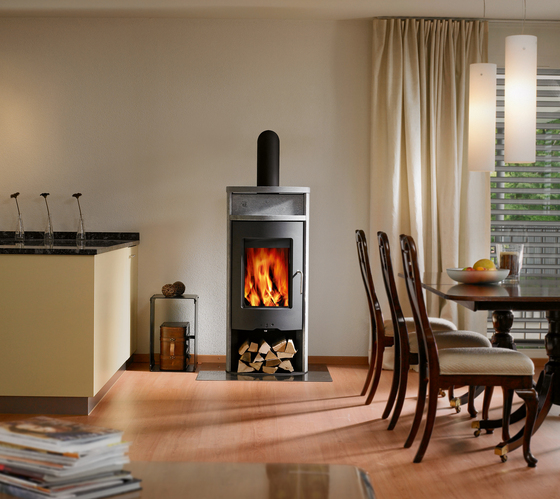

This shows how contemporary fires can be elegant and functional at the same time. Light grey Finnish soapstone surrounds the high furnace with the subtly arched door. The large and attractive stone plates of the Poleo 128 store heat from the fire over a long period of time.

Output
Rated heat output: 4.5 kW
Heat level min/max per hour: 2-7 kW
Wood feed quantity per hour: 1.2 kg
Room heating capacity: 215 m³

Size in mm
Stove height: 1225
Top plate width: 574
Floor plate width: 574
Top plate depth: 448
Floor plate depth: 444
Firebox height, width depth: 380-360-240
Ø flue tube: 150

Installation size in mm
a - Top tube height (without swivel mechanism): 1021
b - Rear tube height Φ: 930
c - Distance of top tube to rear wall: 224
d - Height of AIR system connection (Ø 100mm) or below
