Designer
Ralf Küchel
Year
2008
Architonic id
1079415

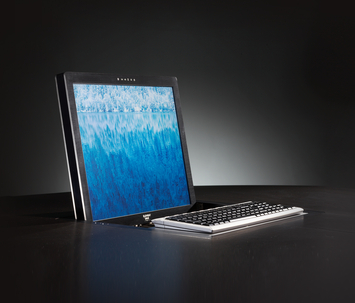

Its visible side that can be retracted into the furniture’s surfaces and its closed back make MODIS ideally suited for secure use in publically accessible building areas. If a space is not occupied, the monitor is folded and practically melts into the surface of the table. An effect that can be reinforced by veneering the backside of the monitor. Hardware and system access is completely protected against unauthorized access and larceny by the secured control mechanism – until the monitor is unfolded and the keyboard emerges.
More
-
Function:Furniture integrateable display-system with electronical movement mechanism (notebook-like display movement - display in closed condition facing down; keyboard is raised after display is completely unfolded; stepless control via buttons directly at the device or via media-control-interface). Height of display unfolded: 314mm; overhang, rear 50mm; Material: Displayaluminum - frame silvery anodized; blue Plexiglas decorative inlay; 4mm glass pane, antireflection coated; support plate/cartouche in brushed high-grade steel. LCD-TFT-Display: 19"; 16,7 Mio. colors; resolution 1280x1024 optically (interpolated max. 1600x1200 at 60 Hz); contrast typ. 1500:1; brightness 300 cd/m2; viewing angle (hor./ver.) 178°/178°; Further equipment: Single-touch; electronically regulated clamping-protection; interface for media-control systems or remote control; wired, removable USB keyboard with num-block; wired USB PC-mouse with scroll wheel. Dimensions, closed (WxDxH): 480x410x79mm; Weight: 14,4kg; Scope of supply: Power supply (LxWxH=110x64x34mm), power cord, Keyboard and PC-mouse; Length of integr. VGA-cable from housing: 1,6m
More
Modis 190
Year
2008
Architonic id 1079415
-
Technical Innovations
All of the new technical features are well enclosed & hidden from user view. New production models shall be equipped with high-precision stepper motors, meaning that the monitors go almost silently from the horizontal to their active positions with individual and precise movement to attain desired angle.
Since the installation box is now also machined from solid aluminum additional rigidity counteracts any warping. This makes the whole ensemble also extremely stable and forgiving for installation in furniture.
A particular design first has been the concealment of the gears for the motors. They have now been incorporated into the negative form side walls of the monitor mounting box and are therefore invisible to the user in elevated view. Simultaneously, the area in front of the monitor, according to the extension of the screen closes flush with the surface and almost without joints to the surrounding furniture surface, giving the impression of an unbroken surface. Here, the keyboard is placed without any visible mechanism.
The mounting box at the front (foot) has had its depth reduced also, and, at 64 mm it is 16 mm lower than before. Fabric covered high flex cables complement these specialist monitors. Electronically movable, both models have a new control board with future proof options such as LAN, WLAN and Bluetooth compatibility.
These displays are also multi-touch capable, which means the screen can be used with more than one finger. The response time from touching the surface is so short that it appears to the user as real time - the transmission is made 1:1.
More
Modis 150-4
Year
2012
Architonic id 1186762
