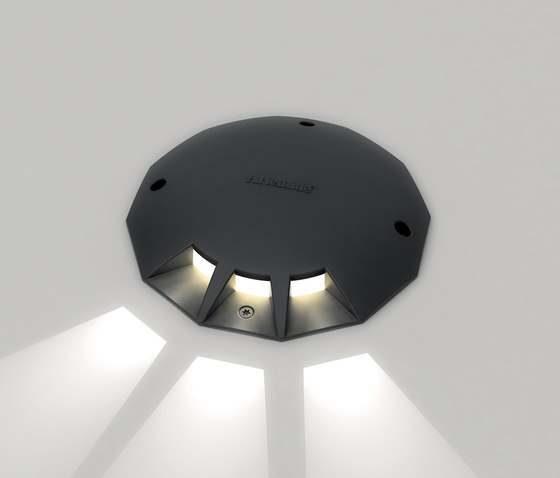

Megara by Artemide Outdoor
Michele De Lucchi
Light fixture with high-performance LED light sources.
Drive-over recessed floor installation with floor-protruding cap. 3 sizes (90, 150, 220 mm). Composed by body, cap, diffuser, recessing box. Body and cap in EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable H07RN-F (H05RN-F for version 90). Electronic ballast integrated in the body, for version 90: 24V power supply. Diffuser in UV resistant polycarbonate. Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial beam optic. 1, 2, 4, 12 beam configurations. White monochromatic LEDs available in 3 colour temperatures:
Warm = 3000K, Neutral = 4000K, Cold = 6000K. Screws in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment: nanotechnologies, antioxidant primer, polyester paint.
Version 90: insulation class III.
Versions 150 and 220: insulation class I.
Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67. ENEC approved. Installation must be carried out by specialized personnel. Carefully follow the instructions.
Product group: Recessed floor lights LED lights General lighting LED recessed floor lights
Designer: Michele De Lucchi
