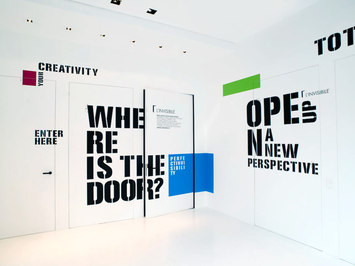

L'Invisibile Vertical Pivot System is the patented door that lies flush with the wall and swivels open on a vertical axis, thanks to a sophisticated hidden pivot system.
Available with or without stop, the door can rotate on itself up to 360 opening degrees, obtaining a very exciting effect of movement.
L’Invisibile Vertical Pivot System is ideal for panel walls made of innovative high-tech materials, allowing designers to express their own ideas on architectural and functional space.


Technical features and details
L'Invisibile Vertical Pivot System consists of:
• a nucleus-frame in passivated extruded aluminium (EN AW 6060 alloy – Anticorodal 063) that replaces the door post (intrados-posts) and adapts to walls and plasterboard walls with different thickness;
• a panel with hollow-core structure, 50 mm thick, made with a perimeter frame in solid wood (Bahia rosewood, toulipier or fir tree) with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side. Class E1- low formaldehyde emission. The model with stop includes seals at the jambs;
• concealed rotating pivots, which can be positioned at a minimum distance of 65 mm from the jamb to a maximum point at the centre of the panel for the model with stop, or for the model without stop, from a minimum of 250 mm from the jamb to the centre of the panel.


Dimensions and personalisation
Since it can be made to measure, L’Invisibile Vertical Pivot System is perfect for both residential and contract installations.
Ideal for internal doors, wardrobe booths, maxi panels, fitted panels, and large doors, available in single leaf as well as twin-leaf models. Can be made in all dimensions up to 2000x3000 H (light passage) in the single leaf model and may be coated with wallpaper, trims, gobelin, decorative woods, decorations, skirting board or mirrors.


Product group: Doors Front doors Wooden doors Internal doors Aluminium doors Pivot doors Flush fitting doors Wooden doors Aluminium doors Hinged doors Pivot doors Flush fitting doors
