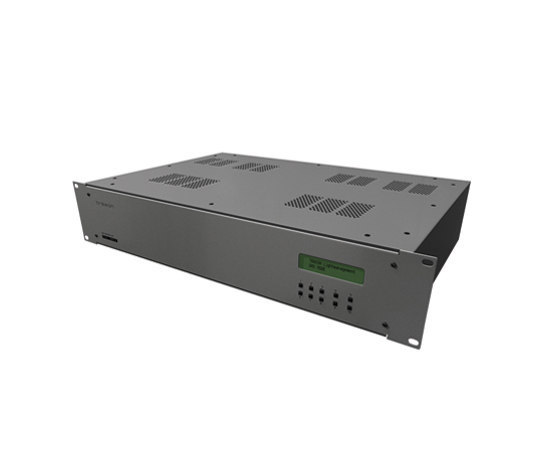

The LED Engine XB-SD Rackmount is a six-mode operated LED controller for up to 18 DMX channels on 6 outputs for 700mA luminaires and 36 DMX channels on 12 outputs for 350mA luminaires. The fully-integrated power supply makes the LED Engine XB-SD Rackmount an all-round control terminal enabling simple power control, for Plug ‘n’ Play installations of the entire XB Luminaires product range. LED Engine XB-SD Rackmount can run in Standalone or Master/Slave mode and is controlled via a dedicated on-board LCD panel with 10 operation buttons or externally via DMX controller, such as the Traxon Micro Server. With a built-in FX engine, the LED Engine XB-SD Rackmount allows for a large variety of pre-programmed as well as user-defined shows in Standalone mode or interconnected in Master-Slave configuration. FLICKER FREE Technology ensures smooth and seamless dimming curves on all connected XB fixtures.
Features: Standalone Controller FX Engine; Data in/out; Master/Slave modes; Auto-addressing; Power back from DMX-in port for TX controller
Interface: TX Connect™ Data (DMX) with power back to DMX controller, TX Connect™ XB
Accessories: AC-to-IECf plug
Dimensions:
LED ENGINE XB-SD RACKMOUNT 1W-432, LED ENGINE XB-SD RACKMOUNT 3W-216:
(L x W x H) 480mm x 88mm x 299mm
(L x W x H) 18.89” x 3.45” x 11.76”
More
LED Engine XB-SD Rackmount
Architonic id 1110814
Please be aware that products of this manufacturer are not longer available on Architonic. (A6)

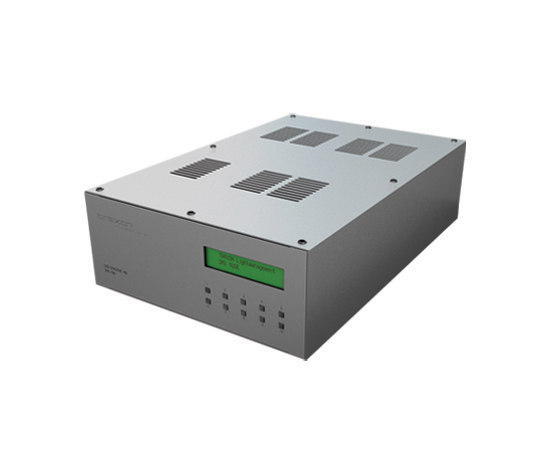

The LED Engine XB-SD is a six-mode operated LED controller for up to 18 DMX channels on 6 outputs for 700mA luminaires and 36 DMX channels on 12 outputs for 350mA luminaires. The fully-integrated power supply makes the LED Engine XB-SD an all-round control terminal enabling simple power control, for Plug ‘n’ Play installations of the entire XB Luminaires product range. LED Engine XB-SD can run in Standalone or Master/Slave mode and is controlled via a dedicated on-board LCD panel with 10 operation buttons or externally via DMX controller, such as the Traxon Micro Server. With a built-in FX engine, the LED Engine XB-SD allows for a large variety of pre-programmed as well as user-defined shows in Standalone mode or interconnected in Master-Slave configuration. FLICKER FREE Technology ensures smooth and seamless dimming curves on all connected XB fixtures. The advanced versions of the LED Engine XB-SD are available with a 19” rack mounting option.
Features: Standalone Controller FX Engine; Data in/out; Master/Slave modes; Auto-addressing; Power back from DMX-in port for TX controller
Interface: TX Connect™ Data (DMX) with power back to DMX controller, TX Connect™ XB
Accessories: AC-to-IECf plug
Dimensions:
LED ENGINE XB-SD 1W-216, LED ENGINE XB-SD 3W-108:
(L x W x H) 210mm x 80mm x 320mm
(L x W x H) 8.26” x 3.2” x 12.6”
More
LED Engine XB-SD
Architonic id 1110813
Please be aware that products of this manufacturer are not longer available on Architonic. (A6)
