L.E.M. Light Energy Media by Spectral
P. H. Neuhorst, E. Schlaefle
There are spaces, in which it is the contents that matter, and where any distraction from the essential is undesirable. Here systems are required that remain in the background, systems that give the feeling of restfulness and order. Rooms which are not dominated by luminaires in the foreground, but in which light and media make their own, discreet contribution. The spectral L.E.M. modules integrate perfectly and flush into the suspended plasterboard ceilings. Their modular structure facilitates an equipment that fulfils the functional requirements. This not only simplifies the planner ´s life, it as well offers all options during the ongoing maintenance processes. This increases flexibility and decreases complexity. It is easy and fast to change from luminaires with diffused light output to spotlights. In this way you can respond to changing lighting requirements without complications. L.E.M. is practical and affordable. No need to check every unit ´s installation possibility. Everything can be neatly and quickly installed into the channel after the paintwork has been finished. The system consists of a track and an extruded aluminium profile made for the installation into plasterboard ceilings and for the accommodation of the electrical leads and adapter plates. Before the suspended ceiling is installed, the framework is attached to the raw concrete ceiling with vertically adjustable suspensions and levelled to the suspended ceiling level. Then the ceiling is skimmed and painted, after which the L.E.M. modules are positioned in the framework.

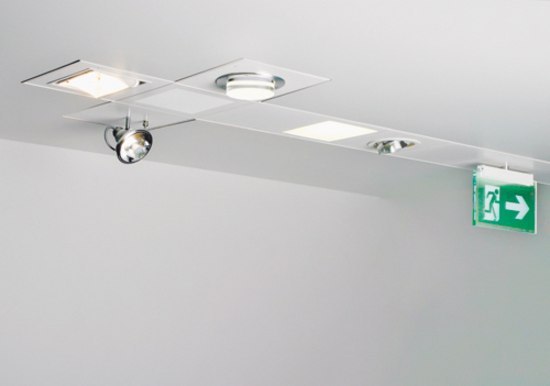

The spectral L.E.M. module provides a common denominator for up to 17 different functions. The adapter plates are positioned where required, together with the corresponding unit or floodlight and located using twist bolts. They can easily be repositioned at any time without damaging the ceiling.
L.E.M. module overview:

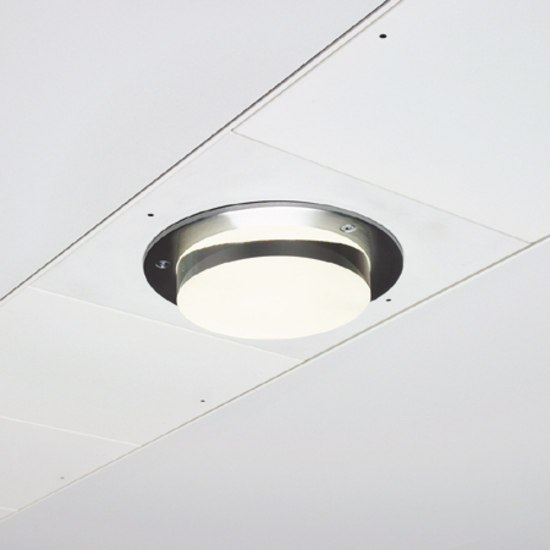

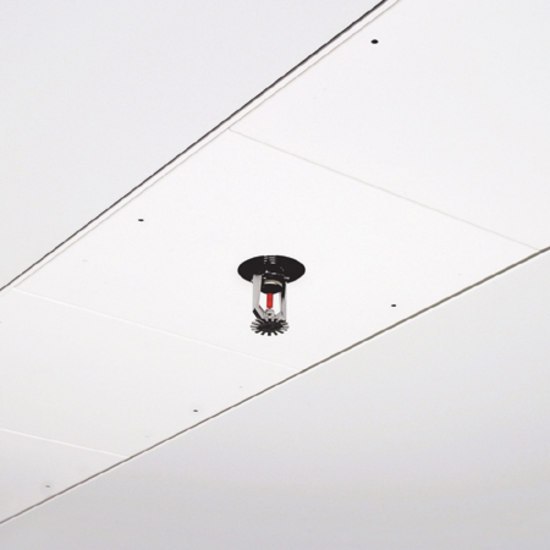

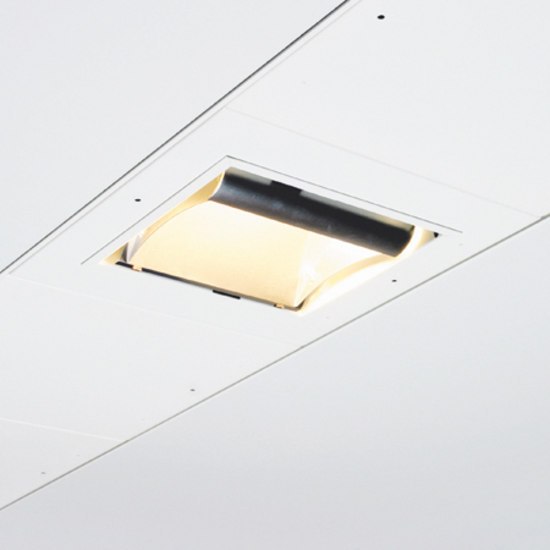

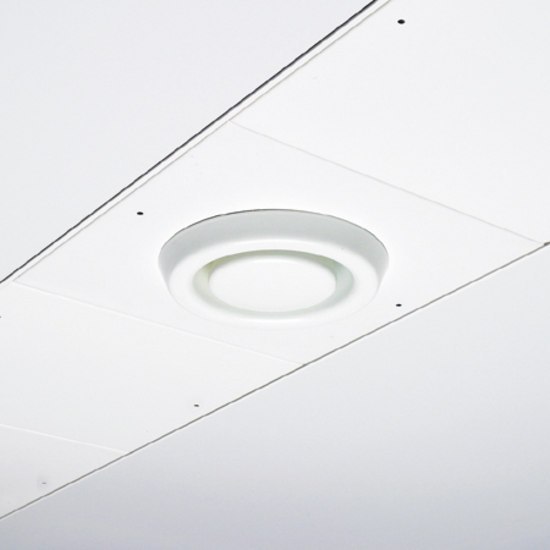

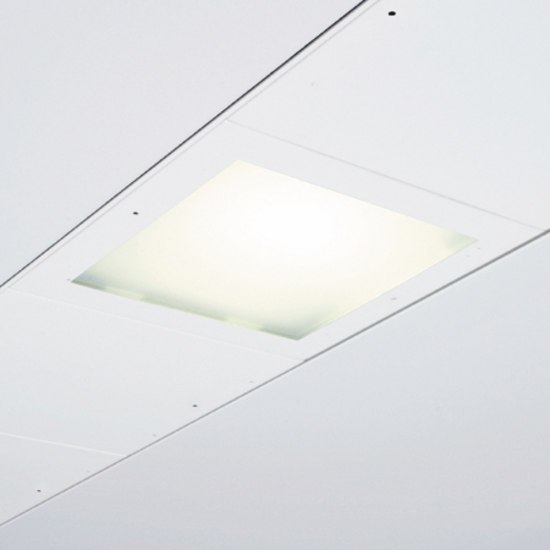

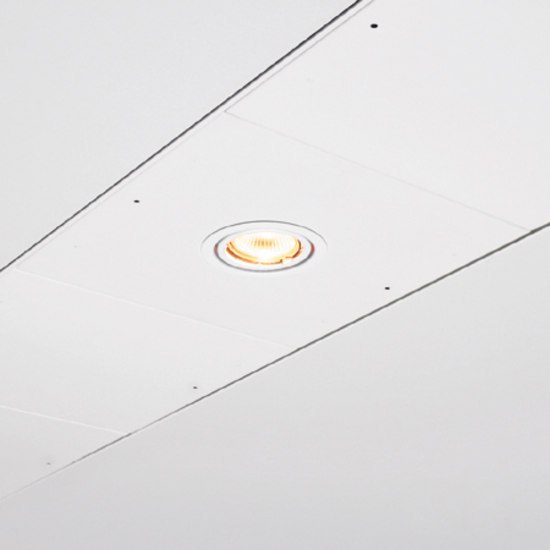

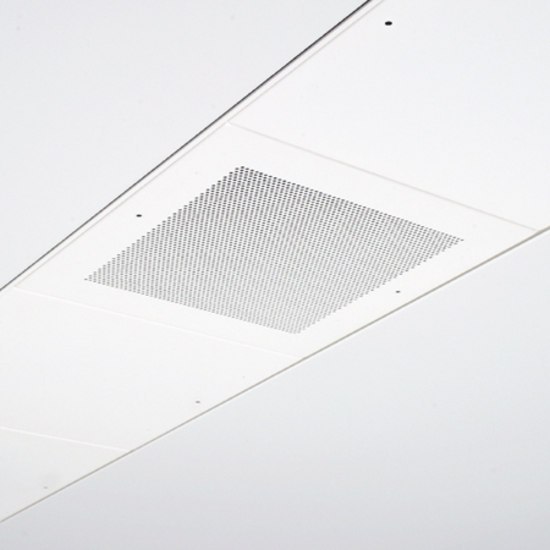

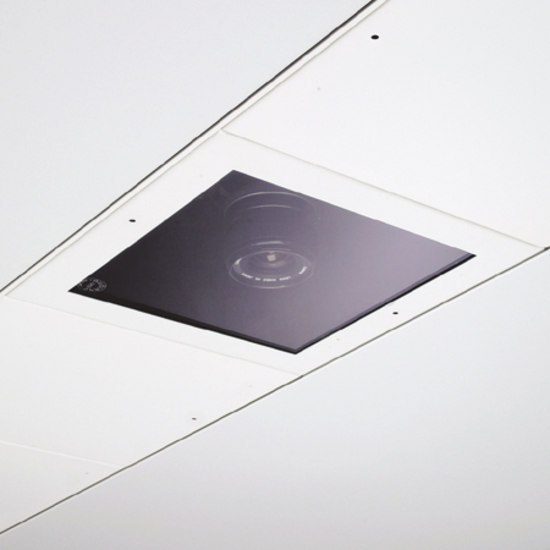

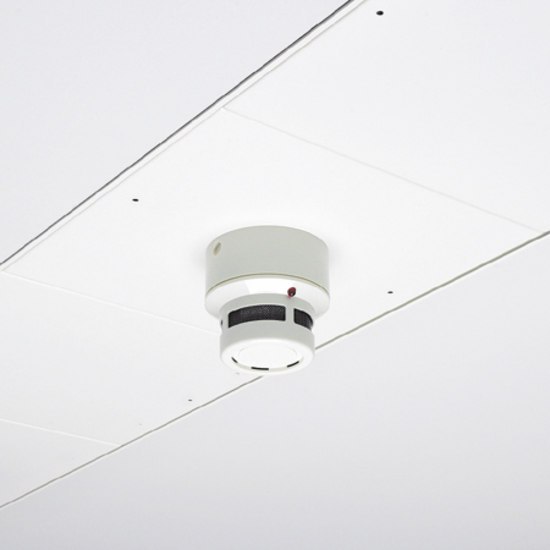

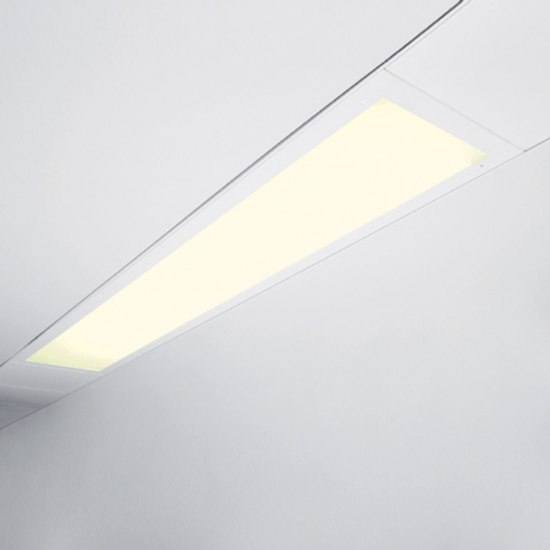

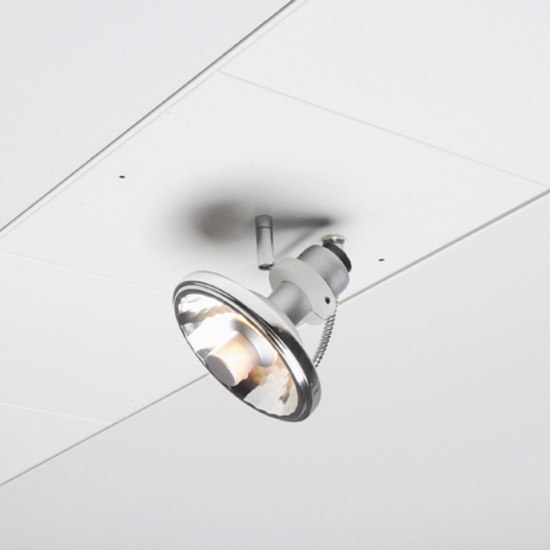

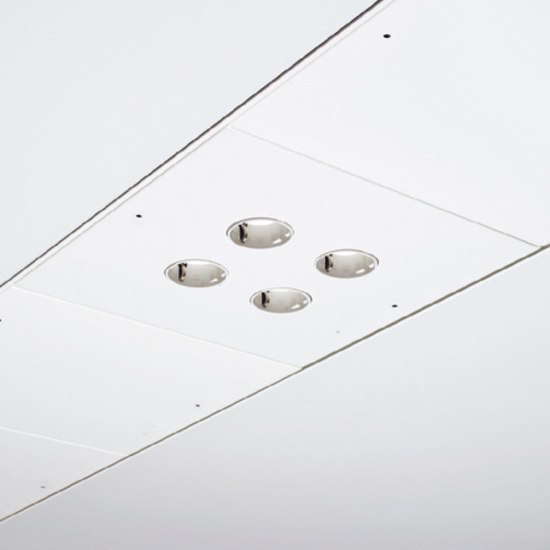

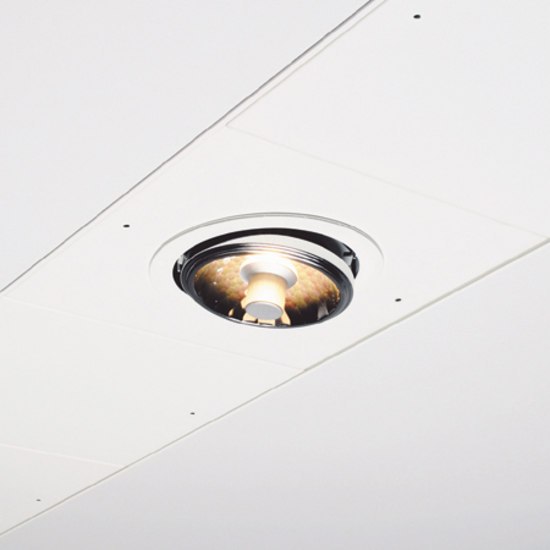

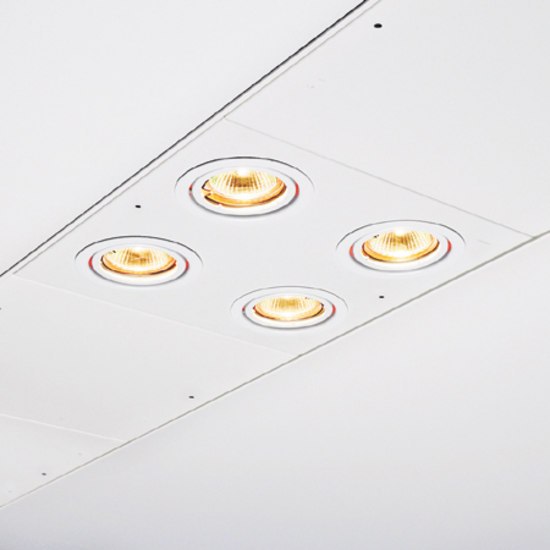

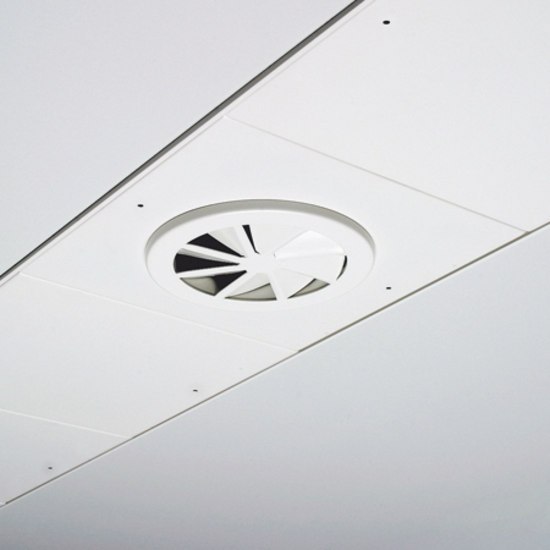

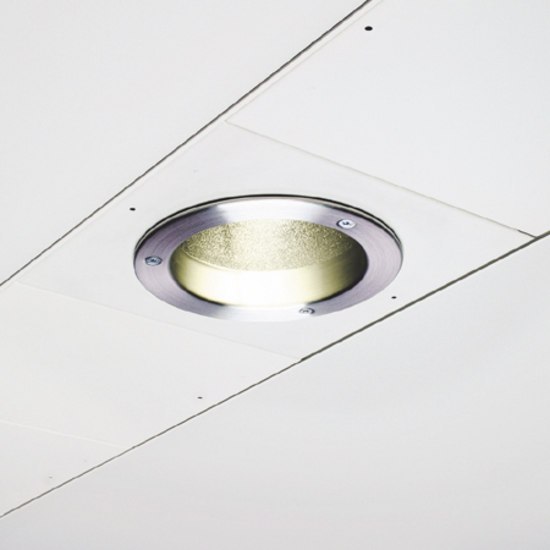

Ring spotlight TC-T 18/26W, Ring downlight +floating paper TC-T 18/26W, Square glass luminaire TC-F 24W, Recessed spotlight 1x low voltage QR-CB 20-50W, Short recessed wallwasher CDM-TC 35/70W, Rectangular glass luminaire 2x T16 54W, Colour temperature luminaire 4x T26 36W, Recessed spotlight 4x low voltage 4xQR-CB 20-50W, Recessed spotlight CDM-R111 35W, Surface mounted spotlight CDM-R 11 35W, Camera window, Smoke detector, Sprinkler head, Waste air ducts, Loudspeaker, Power outlet sockets/Telephone and data communication sockets.
