Ego walk-over by Artemide Outdoor
Year
2011
Architonic id
1193710
Light fixture with high-performance LED light sources.
Recessed floor installation. Walk-over version. Low recessed depth (60 mm). 4 sizes (55, 90, 150, 220 mm). Round and square version. Composed by body, frame, black silkscreened tempered glass, recessing box. Body in EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined two-pole connection cable H05RN-F. Frame in aluminium or stainless steel. Power connection to the mains by means of remote ballast. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Glass surface temperature lower than 40°C. Recessing box for laying in reinforced polymer, can be ordered separately. Fixed optics. PMMA lenses in 3 different versions of beams. White monochromatic LEDs available in 3 colour temperatures: Warm = 3000K, Neutral = 4000K, Cold = 6000K. Screws in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment: nanotechnologies, antioxidant primer, polyester paint.
Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67. Insulation class III. Installation must be carried out by specialized personnel. Carefully follow the instructions.
More
-
4 sizes (55, 90, 150, 220 mm)
More

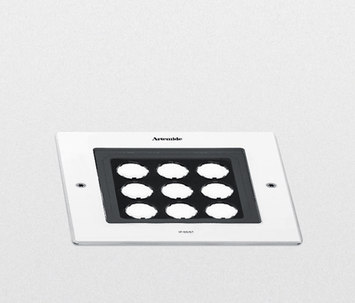

Ego walk-over square
Year
2011
Architonic id 1193710
-
4 sizes (55, 90, 150, 220 mm)
More
Ego walk-over round
Year
2011
Architonic id 1193996
