Cayley by TAL

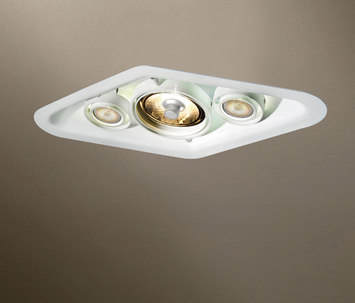

Recessed lighting fixture combining 3 adjustable light sources : 1 x metal halide HI-PAR111 + 2 x metal halide HI-PAR51.
The fixture has a diamond shape.
The elegant fluency of the housing is thanks to the seamless one-piece structure.
Thanks to gimble lamp rings, the light sources are fully adjustable.

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.
Lamp replacement : the HI-PAR111 is held in the lamp ring by means of three click-on springs. For the HI-PAR51’s the lampholder is mounted on a bracket so lamp replacement is very easy by means of a bayonet style locking mechanism.
Indoor use only. Suitable for both wall mounting and ceiling mounting.

Technical data:

Cut-out: 412x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 500x220x110 mm
Weight: 2,8 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312930 (cut-out 500 x 240 mm)

Electrical data:

Lamp type: HI-PAR111 (35-70W) / HI-PAR51 (20-35W)
Lamps: 1 / 2
Lampholders: GX8,5 / GX10
Control gear: not included
Input supply voltage: 4,5 kV-50Hz
Connector block: 3x2,5mm² 5 kV snap-in – 1 connector block per lamp
Glow wire resistance: 960°C
IP rating: IP20

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 412x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 500x220x110 mm
Weight: 2,8 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312930 (cut-out 500 x 240 mm)

Electrical data:

Lamp type: HI-PAR111 (35-70W)
Lamps: 1 / 2
Lampholders: GX8,5 / GX10
Control gear: not included
Input supply voltage: 4,5 kV-50Hz
Connector block: 3x2,5mm² 5 kV snap-in – 1 connector block per lamp
Glow wire resistance: 960°C
IP rating: IP20

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 412x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 500x220x110 mm
Weight: 2,8 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312930 (cut-out 500 x 240 mm)

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 412x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 500x220x110 mm
Weight: 2,8 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312930 (cut-out 500 x 240 mm)

Recessed lighting fixture with 1 adjustable light source.The fixture has a diamond shape.
The elegant fluency of the housing is thanks to the seamless one-piece structure.
Thanks to gimble lamp rings, the light sources are fully adjustable.

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 238x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 325x220x110 mm
Weight: 1,3 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312910 (cut-out 325 x 240 mm)

Electrical data:

Lamp type: QR111
Lamps: 1
Lampholders: G53
Control gear: not included
Input supply voltage: 12V – 50Hz
Connector block: 3x2,5mm²
Glow wire resistance: 960°C
IP rating: IP20

Recessed lighting fixture with 1 adjustable light source.The fixture has a diamond shape.
The elegant fluency of the housing is thanks to the seamless one-piece structure.
Thanks to gimble lamp rings, the light sources are fully adjustable.

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 238x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 325x220x110 mm
Weight: 1,3 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312910 (cut-out 325 x 240 mm)

Recessed lighting fixture with 1 adjustable light source.The fixture has a diamond shape.
The elegant fluency of the housing is thanks to the seamless one-piece structure.
Thanks to gimble lamp rings, the light sources are fully adjustable.

Installation and lamp replacement:

Installation and lamp replacement:
Easy cut-out by means of connecting four 57 mm. diameter hole saw made openings.
The unit is installed by means of four torsion springs for hollow materials.

Technical data:

Cut-out: 238x140mm spacing between centres of 57 mm. holes
Installation height: 120 mm
Luminaire dimensions L x W x H: 325x220x110 mm
Weight: 1,3 kg
Adjustability: 30° horizontal – 30° vertical
Accessories: plasterkit art. 312910 (cut-out 325 x 240 mm)
