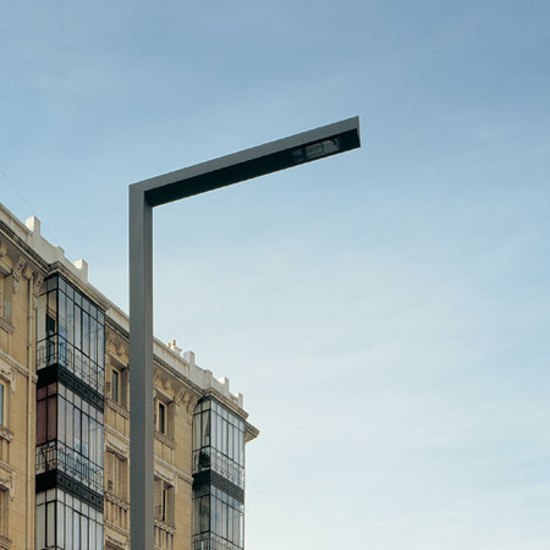

Simple triangular cross-section street lamp, unique thanks to its shape and originality, designed to adorn urban spaces.
Materials and finishes
· Column and arm
Column and arm arranged at 90 degrees in hot galvanized steel and painted grey. It is formed by a triangular profile 8.20 m high, composed of a shaft and a 2.00 m arm.
· Optical unit
Formed by a watertight stainless steel box which houses the lamp and the reflector.
Aluminium reflector and tempered glass diffuser.
The element is supplied dismantled. The assembly instructions are enclosed with the street lamp.
The column is fixed using a concrete cube created in situ and anchor bolts, 20 cm below the paving. The foundations must foresee the groove for the electric connection. The template and the anchor bolts are delivered with the column.
Usual spare parts and maintenance for the units.
Product group: Street lights Mast lights
Designer: Patxi Mangado
