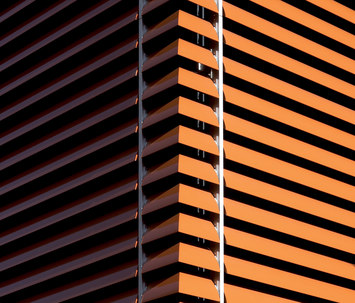

Aerofoil by Hunter Douglas
Hunter Douglas Aerofoils are available in 6 different sizes and in an adjustable or fixed configuration. The specific design allows for larger spans and there is a choice of support structures.
6 Standard extruded wing profiles from 200 to 450 mm wide
Optimized for medium to large spans
Span at 1000 N/m2 wind load; 3.7 m for 200AF to 4.7 m for 450AF
Hidden installation with Cup and V-brackets
Optimized shading performance
Finish: anodized or powder coated to specifications
Fin orientation horizontal or vertical
System projected horizontally or mounted vertically
Standardized support structure in tube or strip
Corner solutions for fixed systems
Adjustable system suitable for control systems.
