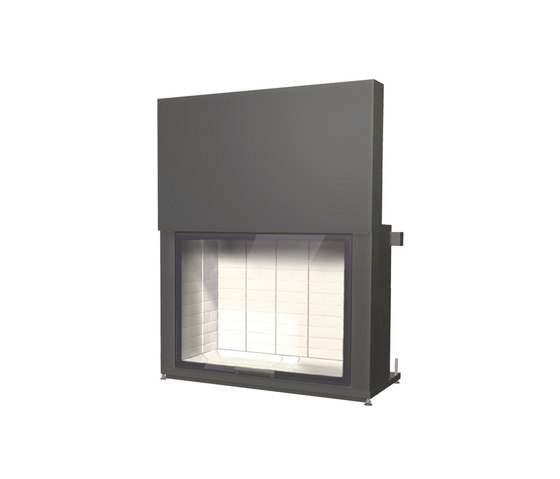

97x74S by Austroflamm

Designer Austroflamm Werksdesign
Year 2004
Architonic id 1088251

Request catalogue PDF catalogues Offer Price request Contact Distribution partners Website CAD Request
Send page Print page Save page QR-Code
sliding door
width (fitting measure body): 960 mm
height doorframe: 730 mm
door: flat
width: 1146 mm
depth: 528 / 517 mm
height: 1486-1586 mm
weight: 326 / 312 kg
nominal heat output according to EN: 11 kW
flue pipe outlet: Ø 250 mm
total flue gas mass flow closed: 12 g/s
flue gas temperature closed: 330 °C
minimum feed pressure at nominal heat efficiency closed: 14 Pa
