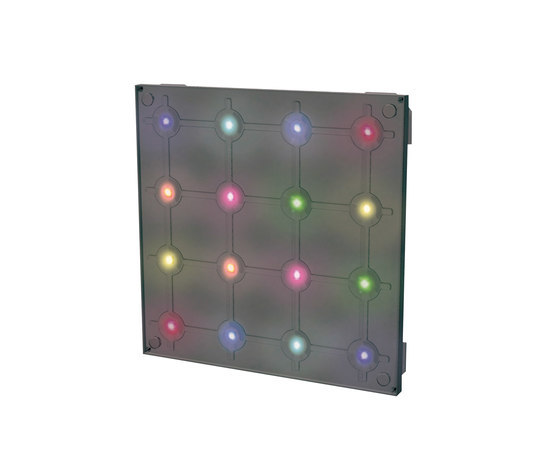

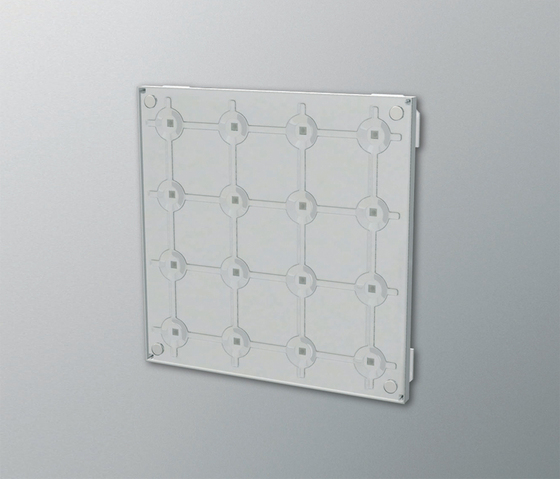

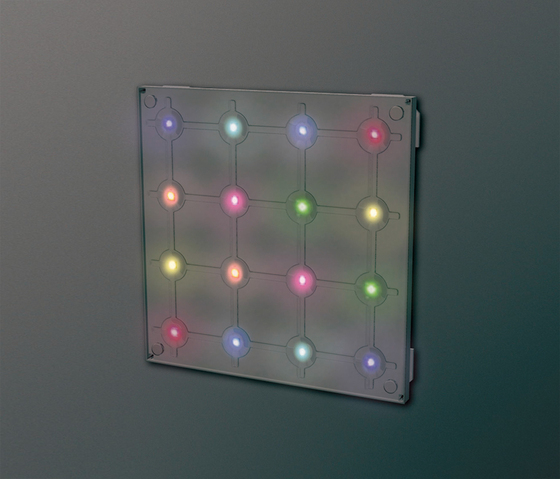

16PXL Module is a multifunctional LED lighting module with 16 individually controllable pixels for low-resolution video and graphic replay. Designed as a direct view lighting module, 16PXL Module is equipped with an acrylic cover to protect the surface-mounted LEDs. The Quick Clip mounting system guarantees the alignment and equal pixel pitch between the Modules, allowing for a fast and easy installation. Furthermore the Quick Clip system enables an easy re-arrangement of the Modules, making them ideal for both temporary and permanent installations of any size. In front view or diffused applications, 16PXL Module creates mesmerizing lighting effects due to its control flexibility featuring DMX as well as e:pix/DVI input signals.
Quick Clip Mounting System
• Pre-cluster Modules before mounting
• Easily mount or dismantle many Modules within minutes
• Ensure perfect LED pitch and alignment
Features: LED module with housing; 16 individually controllable pixels; Quick Clip mounting; Smart Chip™; Auto-addressing; TX Connect™ Smart
Beam angle: 120°
Control: DMX, e:pix/DVI
Weight: 0.73kg / 1.6Ibs

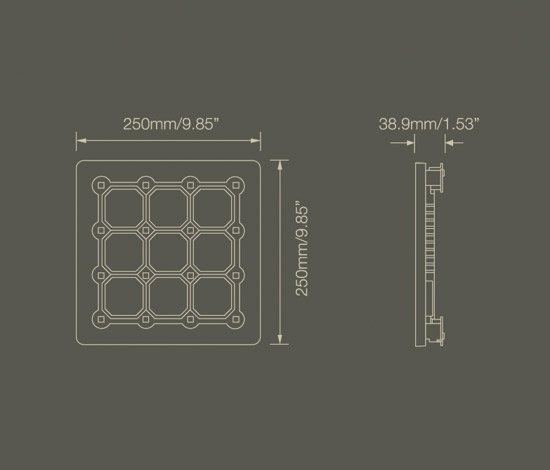

Dimensions: (L x W x H) 250mm x 250mm x 38.9mm, 9.85" x 9.85" x 1.53"
